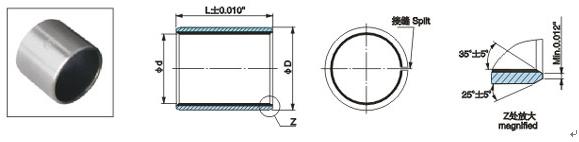

自润滑卷制轴承英制SF10-1/8、SF10-5/32、SF10-3/16、SF10-1/4、SF10-5/16、SF10-3/8、SF10-7/16、SF10-1/2、SF10-9/16、SF10-5/8、SF10-11/16、SF10-3/4、SF10-13/16、SF10-7/8、SF10-1、SF10-11/8、SF10-11/4、SF10-13/8、SF10-11/2、SF10-15/8
发布时间：2025-05-05
|
尺寸Nominal Bearing Bore |
Recommended |
内径Instrlled Bearing I.D. |
轴承长度及轴承规格Bearing Length and Part Number | |||||||||||||
|
轴径Shaft Dia. |
座孔Housing Bore |
1/3 |
5/32 |
3/16 |
1/4 |
3/8 |
1/2 |
5/8 |
3/4 |
7/8 |
1 |
11/8 |
11/4 |
11/2 | ||
|
1/8 |
0.1243 0.1236 |
0.1873 0.1878 |
0.1243 0.1268 |
02/02 |
|
02/03 |
|
|
|
|
|
|
|
|
|
|
|
5/32 |
0.1554 0.1547 |
0.2186 0.2191 |
0.1556 0.1581 |
|
025/025 |
|
025/04 |
|
|
|
|
|
|
|
|
|
|
3/16 |
0.1865 0.1858 |
0.2497 0.2503 |
0.1867 0.1893 |
|
|
03/03 |
03/04 |
03/06 |
|
|
|
|
|
|
|
|
|
1/4 |
0.2490 0.2481 |
0.3122 0.3128 |
0.2492 0.2518 |
|
|
|
04/04 |
04/06 |
|
|
|
|
|
|
|
|
|
5/16 |
0.3115 0.3106 |
0.3747 0.3753 |
0.3117 0.3143 |
|
|
|
|
05/06 |
05/08 |
|
|
|
|
|
|
|
|
3/8 |
0.3740 0.3731 |
0.4684 0.4691 |
0.3742 0.3769 |
|
|
06/03 |
06/04 |
06/06 |
06/08 |
06/10 |
06/12 |
|
|
|
|
|
|
7/16 |
0.4365 0.4355 |
0.5309 0.5316 |
0.4367 0.4394 |
|
|
|
|
|
07/08 |
|
07/12 |
|
|
|
|
|
|
1/2 |
0.4990 0.4980 |
0.5934 0.5941 |
0.4992 0.5019 |
|
|
|
08/04 |
08/06 |
08/08 |
08/10 |
0812 |
0814 |
|
|
|
|
|
9/16 |
0.5615 0.5605 |
0.6559 0.6566 |
0.5617 0.5644 |
|
|
|
|
09/06 |
09/08 |
09/10 |
09/12 |
|
|
|
|
|
|
5/8 |
0.6240 0.6230 |
0.7184 0.7192 |
0.6242 0.6270 |
|
|
|
10/04 |
|
10/08 |
10/10 |
10/12 |
10/14 |
10/16 |
|
|
|
|
11/16 |
0.6865 0.6855 |
0.7809 0.7817 |
0.6867 0.6895 |
|
|
|
|
|
|
|
|
11/14 |
|
|
|
|
|
3/4 |
0.7491 0.7479 |
0.8747 0.8755 |
0.7493 0.7525 |
|
|
|
12/04 |
14/06 |
12/08 |
12/10 |
12/12 |
|
12/16 |
|
|
|
|
13/16 |
0.8116 0.8106 |
0.9372 0.9380 |
0.8118 0.8150 |
|
|
|
|
|
|
|
13/12 |
|
|
13/18 |
|
|
|
7/8 |
0.8741 0.8729 |
0.9997 1.0005 |
0.8743 0.8775 |
|
|
|
14/04 |
14/06 |
|
|
14/12 |
|
14/16 |
|
14/20 |
|
|
1 |
0.9991 0.9979 |
1.1247 1.1255 |
0.9993 1.0025 |
|
|
|
|
16/06 |
06/08 |
|
16/12 |
|
16/16 |
|
16/20 |
16/24 |
|
11/8 |
1.1238 1.1226 |
1.2808 1.2818 |
1.1240 1.1278 |
|
|
|
|
18/06 |
|
18/10 |
18/12 |
|
18/16 |
|
|
|
|
11/4 |
1.2488 1.2472 |
1.4058 1.4068 |
1.2490 1.2528 |
|
|
|
|
20/06 |
|
|
20/12 |
20/14 |
20/16 |
|
20/20 |
|
|
13/8 |
1.3738 1.3722 |
1.5308 1.5318 |
1.3740 1.3778 |
|
|
|
|
|
|
|
22/12 |
|
22/16 |
|
|
22/24 |
|
11/2 |
1.4988 1.4972 |
1.6558 1.6568 |
1.4990 1.5028 |
|
|
|
|
|
24/08 |
|
|
|
24/16 |
24/18 |
24/20 |
24/24 |
|
15/8 |
1.6238 1.6222 |
1.7808 1.7818 |
1.6240 1.6278 |
|
|
|
|
|
|
|
|
|
26/16 |
|
|
26/24 |
