一字头随动滚轮CY1/2、CY9/16、CY5/8、CY11/16、CY3/4、CY7/8、CY1、CY1 1/8、CY1 1/4CY1 3/8、CY1 1/2、CY1 5/8、CY1 3/4、CY1 7/8、CY2、CY2 1/4、CY2 1/2、CY2 3/4、CY3、CY3 1/4、CY3 1/2、CY4
发布时间：2026-05-07
|
|

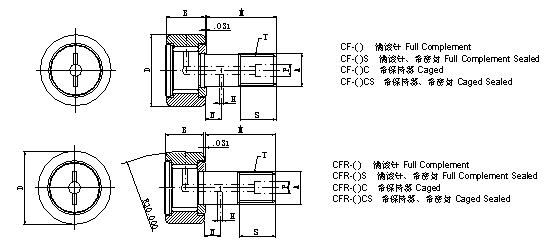

| Inch size bearings |
| Specification |
D |
B |
A |
Recom |
M |
S |
T |
N |
H |
P |
Basic |
Max |
| Bore |
Dynamic |
Allowable |
| （规格） |
+.000 |
+.000 |
+.001 |
MIN |
MAX |
|
|
UNF-2A |
|
|
|
Capacity |
Load |
| -.001 |
-.005 |
-.000 |
|
|
|
|
|
额定负荷 |
适用负荷 |
| 1/2 |
.5000 |
.3750 |
.1900 |
.1900 |
.1905 |
.625 |
.250 |
10-32 |
|
|
1/8 |
680 |
330 |
| 9/16 |
.5625 |
| 5/8 |
.6250 |
.4375 |
.2500 |
.2500 |
.2505 |
.750 |
.313 |
1/4-28 |
940 |
590 |
| 11/16 |
.6875 |
| 3/4 |
.7500 |
.5000 |
.3750 |
.3750 |
.3705 |
.875 |
.375 |
3/8-24 |
.250 |
.094 |
3/16 |
1540 |
1360 |
| 7/8 |
.8750 |
| 1 |
1.000 |
.6250 |
.4375 |
.4375 |
.4380 |
1.00 |
.500 |
7/16-20 |
2190 |
1800 |
| 1 1/8 |
1.125 |
| 1 1/4 |
1.250 |
.7500 |
.5000 |
.5000 |
.5005 |
1.25 |
.625 |
1/2-20 |
.312 |
3390 |
2390 |
| 1 3/8 |
1.375 |
| 1 1/2 |
1.500 |
.8750 |
.6250 |
.6250 |
.6255 |
1.50 |
.750 |
5/8-18 |
.375 |
4450 |
3760 |
| 1 5/8 |
1.625 |
| 1 3/4 |
1.750 |
1.000 |
.7500 |
.7500 |
.7505 |
1.75 |
.875 |
3/4-16 |
.437 |
6070 |
5400 |
| 1 7/8 |
1.875 |
| 2 |
2.000 |
1.250 |
.8750 |
.8750 |
.8755 |
2.00 |
1.00 |
7/8-14 |
.500 |
.156 |
8010 |
7400 |
| 2 1/4 |
2.250 |
| 2 1/2 |
2.500 |
1.500 |
1.000 |
1.000 |
1.005 |
2.25 |
1.125 |
1-14 |
.562 |
11370 |
9700 |
| 2 3/4 |
2.750 |
| 3 |
3.000 |
1.750 |
1.250 |
1.250 |
1.255 |
2.50 |
1.250 |
1 1/4-14 |
.625 |
.250 |
1/4 |
14980 |
13400 |
| 3 1/4 |
3.250 |
| 3 1/2 |
3.500 |
2.000 |
1.375 |
1.375 |
1.380 |
2.75 |
1.375 |
1 3/8-12 |
.687 |
22050 |
18700 |
| 4 |
4.000 |
2.250 |
1.500 |
1.500 |
1.505 |
3.25 |
1.500 |
1 1/2-12 |
.750 |
26770 |
22200 | | |
