向心关节轴承GEWZ12ES、GEWZ15ES、GEWZ19ES、GEWZ22ES、GEWZ25ES、GEWZ31ES、GEWZ34ES、GEWZ38ES、GEWZ44ES、GEWZ50ES、GEWZ57ES、GEWZ69ES、GEWZ76ES、GEWZ82ES、GEWZ88ES、GEWZ92ES、GEWZ95ES、GEWZ101ES、GEWZ114ES、GEWZ127ES
发布时间：2026-08-13
| ◆ 外圈有一轴向缝。 |
| Outer ring with single split in axial drection. |
| ◆ ES型内、外圈有润滑油槽、油孔。 |
| Lubrication grooves and holes in the outer and inner rings of type ES. |
| ◆ 内圈两端带台阶 |
| Inner ring with cyindrical extension at either side. |
| ◆（2RS）型两面带密封圈。 |
| Outer ring of type(2RS) with two seals. |
| ◆ 零件表面磷化处理。 |
| Both outer and inner rings are properly phosphorlylate-treated. |
| ◆ 外圈和内圈为GCr15轴承钢 |
| Outer and inner--52100Steel. | |
 |
 | |
| Inch size bearings ( in ) |

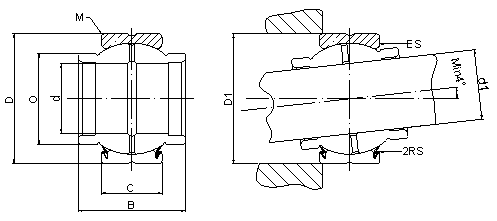

型 号
Part Number |
d |
d1
Recommended
Shaft Dia |
D |
D1
Recommended
Housing Dia |
C |
B |
O |
M
Max |
Load Ratings
Static Ibs Thrust lbs |
Weight
Ibs |
| GEWZ12ES |
0.5000 |
0.5000 |
0.4996 |
0.8750 |
0.8752 |
0.8744 |
0.375 |
0.750 |
0.625 |
0.024 |
9337 |
3156 |
0.051 |
| GEWZ15ES |
0.6250 |
0.6250 |
0.6246 |
1.0625 |
1.0627 |
1.0619 |
0.469 |
0.937 |
0.780 |
0.039 |
14732 |
4864 |
0.090 |
| GEWZ19ES |
0.7500 |
0.7500 |
0.7495 |
1.2500 |
1.2502 |
1.2494 |
0.562 |
1.125 |
0.920 |
0.039 |
20927 |
7089 |
0.150 |
| GEWZ22ES |
0.8750 |
0.8750 |
0.8745 |
1.4375 |
1.4377 |
1.4369 |
0.656 |
1.312 |
1.070 |
0.039 |
28573 |
9565 |
0.231 |
| GEWZ25ES(2RS) |
1.0000 |
1.0000 |
0.9995 |
1.6250 |
1.6252 |
1.6244 |
0.750 |
1.500 |
1.220 |
0.039 |
37359 |
12605 |
0.335 |
| GEWZ31ES(2RS) |
1.2500 |
1.2500 |
1.2495 |
2.0000 |
2.0002 |
1.9994 |
0.937 |
1.875 |
1.525 |
0.039 |
58507 |
19468 |
0.628 |
| GEWZ34ES(2RS) |
1.3750 |
1.3750 |
1.3745 |
2.1875 |
2.1877 |
2.1869 |
1.031 |
2.062 |
1.670 |
0.039 |
69756 |
23404 |
0.809 |
| GEWZ38ES(2RS) |
1.5000 |
1.5000 |
1.4995 |
2.4375 |
2.4377 |
2.4369 |
1.125 |
2.250 |
1.850 |
0.039 |
84379 |
28129 |
1.130 |
| GEWZ44ES(2RS) |
1.7500 |
1.7500 |
1.7494 |
2.8125 |
2.8128 |
2.1118 |
1.312 |
2.625 |
2.165 |
0.039 |
114752 |
38255 |
1.780 |
| GEWZ50ES(2RS) |
2.0000 |
2.0000 |
1.9993 |
3.1875 |
3.1878 |
3.1868 |
1.500 |
3.000 |
2.460 |
0.039 |
150754 |
50408 |
2.620 |
| GEWZ57ES(2RS) |
2.2500 |
2.2500 |
2.2493 |
3.5625 |
3.5629 |
3.5617 |
1.687 |
3.375 |
2.760 |
0.039 |
191251 |
63002 |
3.670 |
| GEWZ63ES(2RS) |
2.5000 |
2.5000 |
2.4993 |
3.9375 |
3.9379 |
3.9367 |
1.875 |
3.750 |
3.060 |
0.039 |
234007 |
77629 |
4.980 |
| GEWZ69ES(2RS) |
2.7500 |
2.7500 |
2.7493 |
4.3750 |
4.3754 |
4.3742 |
2.062 |
4.125 |
3.380 |
0.039 |
285752 |
95628 |
6.830 |
| GEWZ76ES(2RS) |
3.0000 |
3.0000 |
2.9993 |
4.7500 |
4.7504 |
4.7491 |
2.250 |
4.500 |
3.675 |
0.039 |
337506 |
112505 |
8.770 |
| GEWZ82ES(2RS) |
3.2500 |
3.2500 |
3.2491 |
5.1250 |
5.1254 |
5.1241 |
2.437 |
4.875 |
3.985 |
0.039 |
396009 |
131626 |
11.070 |
| GEWZ88ES(2RS) |
3.5000 |
3.5000 |
3.4991 |
5.5000 |
5.5004 |
5.4991 |
2.625 |
5.250 |
4.300 |
0.039 |
459001 |
153003 |
13.760 |
| GEWZ95ES(2RS) |
3.7500 |
3.7500 |
3.7491 |
5.8750 |
5.8754 |
5.8741 |
2.812 |
5.625 |
4.590 |
0.039 |
531004 |
175507 |
16.750 |
| GEWZ101ES(2RS) |
4.0000 |
4.0000 |
3.9991 |
6.2500 |
6.2504 |
5.2491 |
3.000 |
6.000 |
4.905 |
0.039 |
596256 |
202508 |
20.080 |
| GEWZ114ES(2RS) |
4.5000 |
4.5000 |
4.4991 |
7.0000 |
7.0004 |
6.9991 |
3.375 |
6.750 |
5.525 |
0.039 |
765002 |
252006 |
28.350 |
| GEWZ127ES(2RS) |
5.0000 |
5.0000 |
4.9990 |
7.7500 |
7.7505 |
7.7490 |
3.750 |
7.500 |
6.130 |
0.039 |
933755 |
315009 |
38.530 | |
