外圈单开缝向心关节轴承GEZ12ES、GEZ15ES、GEZ19ES、GEZ22ES、GEZ25ES、GEZ31ES、GEZ34ES、GEZ38ES、GEZ44ES、GEZ50ES、GEZ57ES、GEZ63ES、GEZ69ES、GEZ76ES、GEZ82ES、GEZ88ES、GEZ95ES、GEZ101ES、GEZ114ES、GEZ120ES、GEZ127ES、GEZ152ES
发布时间：2026-06-25
| ◆ 外圈有一轴向缝。 |
| Outer ring with single split in axial drection. |
| ◆ ES型内、外圈有润滑油槽、油孔。 |
| Lubrication grooves and holes in the outer and inner rings of type ES. |
| ◆ （2RS）型两面带密封圈。 |
| Outer ring of type(2RS) with two seals |
| ◆ 零件表面磷化处理。 |
| Both outer and inner rings are properly phosphorlylate-treated |
| ◆ 外圈和内圈为GCr15轴承钢 |
| Outer and inner--52100Steel | |
 |
 | |
| |

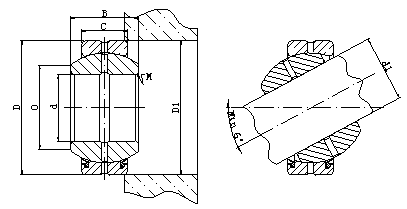

| Inch size bearings ( in ) |
型 号
Part Number |
d |
d1
Recommended
Shaft Dia |
D |
D1
Recommended
Housing Dia |
C |
B |
O |
M |
Load Ratings
Static Ibs Thrust lbs
|
Weight
Ibs |
| GEZ12ES |
0.5000 |
0.5000 |
0.4996 |
0.8750 |
0.8752 |
0.8744 |
0.375 |
0.437 |
0.551 |
0.032 |
9337 |
3156 |
0.044 |
| GEZ15ES |
0.6250 |
0.6250 |
0.6246 |
1.0625 |
1.0627 |
1.0619 |
0.469 |
0.547 |
0.703 |
0.400 |
14732 |
4864 |
0.077 |
| GEZ19ES(2RS) |
0.7500 |
0.7500 |
0.7495 |
1.2500 |
1.2502 |
1.2494 |
0.562 |
0.656 |
0.844 |
0.400 |
20927 |
7089 |
0.121 |
| GEZ22ES(2RS) |
0.8750 |
0.8750 |
0.8745 |
1.4375 |
1.4377 |
1.4369 |
0.656 |
0.765 |
0.974 |
0.400 |
28573 |
9565 |
0.187 |
| GEZ25ES(2RS) |
1.0000 |
1.0000 |
0.9995 |
1.6250 |
1.6252 |
1.6244 |
0.750 |
0.875 |
1.103 |
0.400 |
37359 |
12605 |
0.265 |
| GEZ31ES(2RS) |
1.2500 |
1.2500 |
1.2495 |
2.0000 |
2.0002 |
1.9994 |
0.937 |
1.093 |
1.382 |
0.400 |
58507 |
19468 |
0.507 |
| GEZ34ES(2RS) |
1.3750 |
1.3750 |
1.3745 |
2.1875 |
2.1877 |
2.1869 |
1.031 |
1.187 |
1.516 |
0.400 |
69756 |
23404 |
0.772 |
| GEZ38ES(2RS) |
1.5000 |
1.5000 |
1.4995 |
2.4375 |
2.4377 |
2.4369 |
1.125 |
1.312 |
1.703 |
0.400 |
84379 |
28129 |
0.926 |
| GEZ44ES(2RS) |
1.7500 |
1.7500 |
1.7494 |
2.8125 |
2.8128 |
2.1118 |
1.312 |
1.531 |
1.984 |
0.400 |
114752 |
38255 |
1.41 |
| GEZ50ES(2RS) |
2.0000 |
2.0000 |
1.9993 |
3.1875 |
3.1878 |
3.1868 |
1.500 |
1.750 |
2.266 |
0.480 |
150754 |
50408 |
2.05 |
| GEZ57ES(2RS) |
2.2500 |
2.2500 |
2.2493 |
3.5625 |
3.5629 |
3.5617 |
1.687 |
1.969 |
2.554 |
0.480 |
191251 |
63002 |
2.87 |
| GEZ63ES(2RS) |
2.5000 |
2.5000 |
2.4993 |
3.9375 |
3.9379 |
3.9367 |
1.875 |
2.187 |
2.833 |
0.480 |
234007 |
77629 |
4.08 |
| GEZ69ES(2RS) |
2.7500 |
2.7500 |
2.7493 |
4.3750 |
4.3754 |
4.3742 |
2.062 |
2.406 |
3.110 |
0.480 |
285752 |
95628 |
5.29 |
| GEZ76ES(2RS) |
3.0000 |
3.0000 |
2.9993 |
4.7500 |
4.7504 |
4.7491 |
2.250 |
2.625 |
3.406 |
0.480 |
337506 |
112505 |
6.84 |
| GEZ82ES(2RS) |
3.2500 |
3.2500 |
3.2491 |
5.1250 |
5.1254 |
5.1241 |
2.437 |
2.844 |
3.703 |
0.480 |
396009 |
131626 |
8.38 |
| GEZ88ES(2RS) |
3.5000 |
3.5000 |
3.4991 |
5.5000 |
5.5004 |
5.4991 |
2.625 |
3.062 |
4.000 |
0.480 |
459001 |
153003 |
10.58 |
| GEZ95ES(2RS) |
3.7500 |
3.7500 |
3.7491 |
5.8750 |
5.8754 |
5.8741 |
2.812 |
3.281 |
4.266 |
0.480 |
531004 |
175507 |
12.79 |
| GEZ101ES(2RS) |
4.0000 |
4.0000 |
3.9991 |
6.2500 |
6.2504 |
5.2491 |
3.000 |
3.500 |
4.559 |
0.480 |
596256 |
202508 |
15.44 |
| GEZ114ES(2RS) |
4.5000 |
4.5000 |
4.4991 |
7.0000 |
7.0004 |
6.9991 |
3.375 |
3.937 |
5.110 |
0.600 |
765002 |
252006 |
21.61 |
| GEZ120ES(2RS) |
4.7500 |
4.7500 |
4.7491 |
7.3750 |
7.3754 |
7.3741 |
3.562 |
4.156 |
5.386 |
0.600 |
843754 |
281254 |
25.36 |
| GEZ127ES(2RS) |
5.0000 |
5.0000 |
4.9990 |
7.7500 |
7.7505 |
7.7490 |
3.750 |
4.375 |
5.703 |
0.600 |
933755 |
315009 |
29.76 |
| GEZ152ES(2RS) |
6.0000 |
6.0000 |
5.9990 |
8.7500 |
8.7505 |
8.7490 |
4.125 |
4.750 |
6.594 |
0.600 |
1170002 |
389257 |
38.59 | | |
