尼龙衬垫内螺纹杆端轴承NF3、NF4、NF5、NF6、NF7、NF8、NF10、NF12、NF3L、NF4L、NF5L、NF6L、NF7L、NF8L、NF10L、NF12L

发布时间：2025-05-05

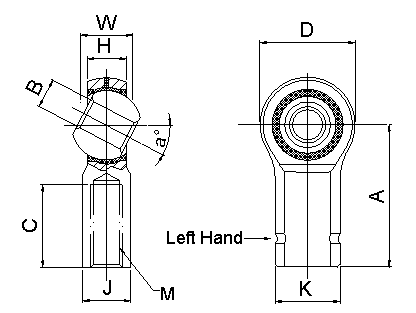

Dimensions in inches 型　号 B W H A D K J 　 C M a Ultimate 　 Radial Part Number Ball Ball Housing Centerline Head Shank Wrench Ball Thread Thread Misalign Static Load Right Left Bore Width Width Length Diameter Diameter Flat Width Diameter Length Size Angle Capacity Hand Hand +0.0020 +0.005 　 +0.062 +0.015 +0.015 +0.015 　 +0.060 UNF-2B Min Pounds 　 　 --0.0000 --0.005 　 --0.031 --0.015 --0.015 --0.015 　 --0.060 NF3 NF3L 0.1900 0.312 0.250 1.062 0.625 0.406 0.312 0.437 0.562 10-32 13 1,210 NF4 NF4L 0.2500 0.375 0.281 1.312 0.750 0.469 0.375 0.5 0.750 1/4-28 16 2,470 NF5 NF5L 0.3125 0.437 0.344 1.375 0.875 0.500 0.437 0.625 0.750 5/16-24 14 2,740 NF6 NSF6L 0.3750 0.500 0.406 1.625 1.000 0.687 0.562 0.719 0.937 3/8-24 12 4,100 NF7 NF7L 0.4375 0.562 0.437 1.812 1.125 0.750 0.625 0.812 1.062 7/16-20 14 5,350 NF8 NF8L 0.5000 0.625 0.500 2.125 1.312 0.875 0.750 0.937 1.187 1/2-20 12 6,430 NF10 NF10L 0.6250 0.750 0.562 2.500 1.500 1.000 0.875 1.125 1.500 5/8-18 16 8,300 NF12 NF12L 0.7500 0.875 0.687 2.875 1.750 1.125 1.000 1.312 1.750 3/4-16 14 10,900
