组合轴承ZARN1545、ZARN1747、、ZARN2052、ZARN2062、ZARN2557、ZARN3062、ZARN3080、ZARN3570、ZARN3585、ZARN4075、ZARN4090、ZARN4580、ZARN45105、ZARN5090、ZARN50110、ZARN55115、ZARN60120

发布时间：2026-05-07

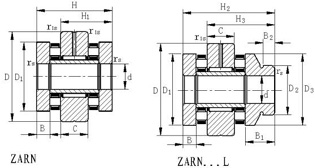

型号	型号	尺寸Dimensions
Designation	Designation	d	D	H	H1	H2	H3	C	D1	D2	D3	B	B1	Bc	rs	ris mn.
		mm
ZARN1545TN	ZARN1545LTN	15	45	40	28	53	41	16	35	24	34	7.5	20.5	11	0.3	0.6
ZARN1747TN	ZARN1547LTN	17	47	43	29.5	57	43.5	16	38	28	38	9	23	11	0.3	0.6
ZARN2052TN	ZARN2052LTN	20	52	46	31	60	45	16	42	30	40	10	24	11	0.3	0.6
ZARN2062TN	ZARN2062LTN	20	62	60	40	75	55	20	52	40	50	12.5	27.5	11	0.3	0.6
ZARN2557TN	ZARN2557LTN	25	57	50	35	65	50	20	47	36	45	10	25	11	0.3	0.6
ZARN2572TN	ZARN2572LTN	25	72	60	40	75	55	20	62	48	60	12.5	27.5	11	0.3	0.6
ZARN3062TN	ZARN3062LTN	30	62	50	35	65	50	20	52	40	50	10	25	11	0.3	0.6
ZARN3080TN	ZARN3080LTN	30	80	66	43	82	59	20	68	52	66	14	30	12	0.3	0.6
ZARN3570TN	ZARN3570LTN	35	70	54	37	70	53	20	60	45	58	11	27	12	0.3	0.6
ZARN3585TN	ZARN3585LTN	35	85	66	43	82	59	20	73	60	73	14	30	12	0.3	0.6
ZARN4075TN	ZARN4075LTN	40	75	54	37	70	53	20	65	50	63	11	27	12	0.3	0.6
ZARN4090TN	ZARN4090LTN	40	90	75	50	93	68	25	78	60	78	16	34	12	0.3	0.6
ZARN4580TN	ZARN4580LTN	45	80	60	42.5	75	57.5	25	70	56	68	11.5	26.5	12	0.3	0.6
ZARN45105TN	ZARN45105LTN	45	105	82	53.5	103	74.5	25	90	70	88	17.5	38.5	14	0.3	0.6
ZARN5090TN	ZARN5090LTN	50	90	60	42.5	78	60.5	25	78	60	78	11.5	29.5	12	0.3	0.6
ZARN50110TN	ZARN50110LTN	50	110	82	53.5	103	74.5	25	95	75	93	17.5	38.5	14	0.3	0.6
ZARN55115TN	ZARN55115LTN	55	115	82	53.5	103	74.5	25	1	80	98	17.5	38.5	14	0.3	0.6
ZARN60120TN	ZARN60120LTN	60	120	82	53.5	103	74.5	25	105	90	105	17.5	38.5	16	0.3	0.6
