搜轴承 -- 黑板报 -- 外球面轴承带座SBLF201G、SBLF202G、SBLF203G、SBLF204G、SBL...

外球面轴承带座SBLF201G、SBLF202G、SBLF203G、SBLF204G、SBLF205G、SBLF206G、SBLF207G、SBLF201-8G、SBLF202-10G、SBLF203-11G、SBLF204-12G、SBLF205-14G、SBLF205-16G

发布时间：2026-01-31

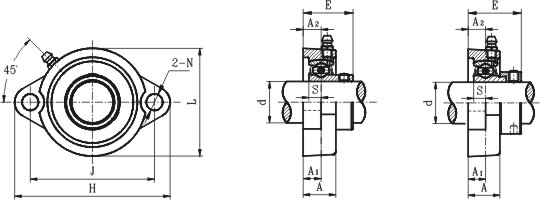

带座轴 承代号 轴径 外形尺寸(mm) 螺栓规格 轴承代码 座代号 重量(kg) d H J L A1 A A2 N S E (in.) (mm)  SBLF201G 12 81 63.5 56 9.5 18 9.5 8 6 25.5 M6 SB201G LF203 0.27  SBLF201-8G 1/2 81 63.5 56 9.5 18 9.5 8 6 25.5 1/4 SB201-8G LF203 0.27  SBLF202G 15 81 63.5 56 9.5 18 9.5 8 6 25.5 M6 SB202G LF203 0.26  SBLF202-10G 5/8 81 63.5 56 9.5 18 9.5 8 6 25.5 1/4 SB202-10G LF203 0.26  SBLF203G 17 81 63.5 56 9.5 18 9.5 8 6 25.5 M6 SB203G LF203 0.25  SBLF203-11G 11/16 81 63.5 56 9.5 18 9.5 8 6 25.5 1/4 SB203-11G LF203 0.25  SBLF204-12G 3/4 90 71.5 61 11 20 11 10 7 29 5/16 SB204-12G LF204 0.33  SBLF204G 20 90 71.5 61 11 20 11 10 7 29 M8 SB204G LF204 0.33  SBLF205-14G 7/8 95 76 64 115.9 20.6 11 10 7.5 30.5 5/16 SB205-14G LF205 0.38  SBLF205-15G 15/16 95 76 64 11 20 11 10 7.5 30.5 5/16 SB205-15G LF205 0.38  SBLF205G 25 95 76 64 11 20 11 10 7.5 30.5 M8 SB205G LF205 0.38  SBLF205-16G 1 94 76 64 11 20 11 10 7.5 30.5 5/16 SB205-16G LF205 0.38  SBLF206-18G 1-1/8 113 90.5 76 12 22.5 12 12 8 34 3/8 SB206-18G LF206 0.56  SBLF206G 30 113 90.5 76 12 22.5 12 12 8 34 M10 SB206G LF206 0.56  SBLF206-19G 1-3/16 113 90.5 76 12 22.5 12 12 8 34 3/8 SB206-19G LF206 0.56  SBLF206-20G 1-1/4 113 90.5 76 12 22.5 12 12 8 34 3/8 SB206-20G LF206 0.56  SBLF207-20G 1-1/4 122 100 89 13 24 13 12 9 36.5 3/8 SB207-20G LF207 0.80  SBLF207-21G 1-5/16 122 100 89 13 24 13 12 9 36.5 3/8 SB207-21G LF207 0.80  SBLF207-22G 1-3/8 122 100 89 13 24 13 12 9 36.5 3/8 SB207-22G LF207 0.80  SBLF207G 35 122 100 89 13 24 13 12 9 36.5 M10 SB207G LF207 0.80  SBLF207-23G 1-7/16 122 100 89 13 24 13 12 9 36.5 3/8 SB207-23G LF207 0.80
