外球面轴承带座SALF201G、SALF202G、SALF203G、SALF204G、SALF205G、SALF206G、SALF207G

发布时间：2026-09-26

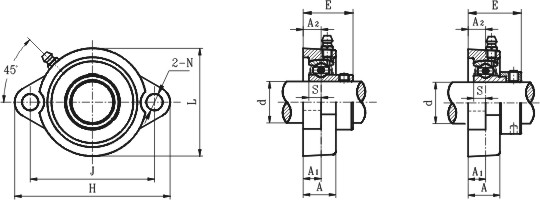

带座轴 承代号 轴径 外形尺寸(mm) 螺栓规格 轴承代码 座代号 重量(kg) d H J L A1 A A2 N S E (in.) (mm)  SALF201G 12 81 63.5 56 9.5 18 9.5 8 6.5 31.6 M6 SA201G LF203 0.3  SALF201-8G 1/2 81 63.5 56 9.5 18 9.5 8 6.5 31.6 1/4 SA201-8G LF203 0.3  SALF202G 15 81 63.5 56 9.5 18 9.5 8 6.5 31.6 M6 SA202G LF203 0.29  SALF202-10G 5/8 81 63.5 56 9.5 18 9.5 8 6.5 31.6 1/4 SA202-10G LF203 0.29  SALF203G 17 81 63.5 56 9.5 18 9.5 8 6.5 31.6 M6 SA203G LF203 0.28  SALF203-11G 11/16 81 63.5 56 9.5 18 9.5 8 6.5 31.6 1/4 SA230-11G LF203 0.28  SALF204-12F 3/4 90 71.5 61 11 20 11 10 7.5 34.4 5/16 SA204-12G LF204 0.33  SALF204G 20 90 71.5 61 11 20 11 10 7.5 34.4 M8 SA204G LF204 0.33  SALF205-14G 7/8 95 76 64 11 20 11 10 7.5 34.4 5/16 SA205-14G LF205 0.42  SALF205-15G 15/16 95 76 64 11 20 11 10 7.5 34.4 5/16 SA205-15G LF205 0.42  SALF205G 25 95 76 64 11 20 11 10 7.5 34.4 M8 SA205G LF205 0.42  SALF205-16G 1 95 76 64 11 20 11 10 7.5 34.4 5/16 SA205-16G LF205 0.42  SALF206-18G 1-1/8 113 90.5 76 12 22.5 12 12 9 38.7 3/8 SA206-18G LF206 0.60  SALF206G 30 113 90.5 76 12 22.5 12 12 9 38.7 M10 SA206G LF206 0.60  SALF206-19G 1-3/16 113 90.5 76 12 22.5 12 12 9 38.7 3/8 SA206-19G LF206 0.60  SALF206-20G 1-1/4 113 90.5 76 12 22.5 12 12 9 38.7 3/8 SA206-20G LF206 0.60  SALF207-20G 1-1/4 122 100 89 13 24 13 12 9.5 42.4 3/8 SA207-20G LF207 0.85  SALF207-21G 1-5/16 122 100 89 13 24 13 12 9.5 42.4 3/8 SA207-21G LF207 0.85  SALF207-22G 1-3/8 122 100 89 13 24 13 12 9.5 42.4 3/8 SA207-22G LF207 0.85  SALF207G 35 122 100 89 13 24 13 12 9.5 42.4 M10 SA207G LF207 0.85  SALF207-23G 1-7/16 122 100 89 13 24 13 12 9.5 42.4 3/8 SA207-23G LF207 0.85
