法兰标准型轴承SWF4、SWF6、SWF8、SWF10、SWF12、SWF16、SWF20、SWF24、SWF32
发布时间：2025-05-05
|
|

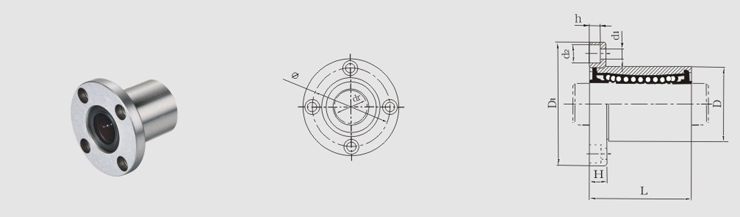

| 型号 |
球列数 |
主要尺寸 |
法兰垂直度 |
径向跳动 |
基本额定负载 |
| 内径 |
外径 |
长度 |
法兰 |
联接孔 |
c(kgf) |
Co(kgf) |
| dr |
公差 |
D |
公差 |
L |
公差 |
D1 |
K |
H |
ф |
d1 |
d2 |
h |
| SWF04 |
3 |
1/4˝ 6.35 |
0
-0.09 |
0.5˝ 12.7 |
0
-0.011 |
1.375˝ 34.925 |
0
-0.20 |
1.25˝ 31.75 |
1˝ 25.4 |
0.219˝ 5.556 |
0.875˝ 22.225 |
0.156˝ 3.969 |
0.25˝ 6.35 |
0.141˝ 3.572 |
0.012 |
0.012 |
21 |
27 |
0
-0.013 |
| SWF06 |
4 |
3/8˝ 9.525 |
0.625˝ 15.875 |
1.5938˝ 40.481 |
1.5˝ 38.1 |
1.25˝ 31.75 |
0.25˝ 6.35 |
1.062˝ 26.988 |
0.1875˝ 4.763 |
0.297˝ 7.541 |
0.172˝ 4.366 |
23 |
32 |
| SWF08 |
4 |
1/2˝ 12.7 |
0.875˝ 22.225 |
2.375˝ 60.325 |
1.75˝ 44.45 |
1.375˝ 34.925 |
0.25˝ 6.35 |
1.312˝ 33.338 |
0.1875˝ 4.763 |
0.297˝ 7.541 |
0.172˝ 4.366 |
52 |
80 |
| SWF10 |
4 |
5/8˝ 15.875 |
1.125˝ 28.575 |
2.8125˝ 71.438 |
2˝ 50.8 |
1.5˝ 38.1 |
0.25˝ 6.35 |
1.562˝ 39.688 |
0.1875˝ 4.763 |
0.297˝ 7.541 |
0.172˝ 4.366 |
79 |
120 |
| SWF12 |
4 |
3/4˝ 19.05 |
0
-0.010 |
1.25˝ 31.75 |
0
-0.016 |
3.0937˝ 78.581 |
2.1875˝ 55.563 |
1.6875˝ 42.863 |
0.3125˝ 7.938 |
1.718˝ 43.66 |
0.2178˝ 5.556 |
0.344˝ 8.731 |
0.203˝ 5.159 |
0.015 |
0.015 |
88 |
140 |
| SWF16 |
5 |
1˝ 25.4 |
1.5625˝ 39.688 |
4.283˝ 108.744 |
0
-0.30 |
2.5˝ 63.5 |
2˝ 50.8 |
0.3125˝ 7.938 |
2.031˝ 51.594 |
0.2187˝ 5.556 |
0.344˝ 8.731 |
0.203˝ 5.159 |
100 |
160 |
| SWF20 |
5 |
1-1/4˝ 31.75 |
0
-0.012 |
2˝ 50.8 |
0
-0.019 |
5˝ 127 |
3.125˝ 79.375 |
2.5˝ 63.5 |
0.375˝ 9.525 |
2.5625˝ 65.088 |
0.2812˝ 7.144 |
0.406˝ 0.319 |
0.2656˝ 6.747 |
0.020 |
0.020 |
160 |
280 |
| SWF24 |
6 |
1-1/2˝ 38.1 |
2.375˝ 60.325 |
5.6875˝ 144.463 |
3.75˝ 95.25 |
3˝ 76.2 |
0.5˝ 12.7 |
3.0625˝ 77.788 |
0.344˝ 8.731 |
0.5˝ 12.7 |
0.328˝ 8.334 |
222 |
410 |
| SWF32 |
6 |
2˝ 50.8 |
3˝ 76.2 |
0
-0.022 |
7.75˝ 196.85 |
4.375˝ 111.125 |
3.5˝ 88.9 |
0.5˝ 12.7 |
3.6875˝ 93.662 |
0.344˝ 8.731 |
0.5˝ 12.7 |
0.328˝ 8.334 |
0.025 |
0.025 |
390 |
810 | |
