滚珠丝杠轴承BSS2047TN1、BSS2362TN1、BSS3872TN1、BSS4476TN1、BSS5790TN1、BSS76110TN1、BSS101145TN1

发布时间：2025-05-05

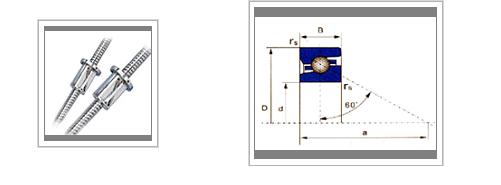

轴承代号	外形尺寸					额定载荷		极限转速		重量
	d	D	B	rsmin	a	Cr	Cor	脂油		≈
	mm				≈	KN		r/min		kg
BSS2047TN1	20	47	15.875	1	38	19.3	25	12000	17000	0.13
BSS2362TN1	23.838	62	15.875	1	45	28.5	41.5	9000	13000	0.24
BSS3872TN1	38.1	72	15.875	1	56	28	49	8000	11000	0.26
BSS4476TN1	44.475	76.2	15.875	1	60	28.5	52	7500	10000	0.26
BSS5790TN1	57.15	90	15.875	1	72	32.5	65.5	6300	8500	0.38
BSS76110TN1	76.2	110	15.875	1.5	88	35.5	83	5000	6700	0.75
BSS101145TN1	101.6	145	22.225	1.5	118	69.5	173	3800	5000	1.37
