滚珠丝杠轴承760304TN1、760305TN1、760306TN1、760307TN1、760308TN1、760309TN1、760310TN1、760311TN1、760312TN1、760313TN1、760314TN1、760315TN1、760316TN1、760317TN1、760318TN1、760319TN1、760320TN1、760322TN1、760324TN1、760326TN1

发布时间：2026-06-24

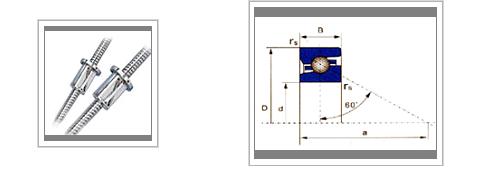

轴承代号	外形尺寸					额定载荷		极限转速		重量
	d	D	B	rsmin	a	Cr	Cor	脂油		≈
	mm				≈	KN		r/min		kg
760304TN1	20	52	15	1.1	39	24.5	32	11000	16000	0.17
760305TN1	25	62	17	1.1	46	28.5	41.5	9000	13000	0.28
760306TN1	30	72	19	1.1	53	34.5	55	8000	11000	0.41
760307TN1	35	80	21	1.5	60	36.5	61	7000	9500	0.55
760307TN1×3TN1	35	90	23	1.5	68	50	83	6300	8500	0.81
760308TN1	40	90	23	1.5	68	50	83	6300	8500	0.76
760309TN1	45	100	25	1.5	75	58.5	104	5600	7500	1.02
760309TN1×3TN1	45	110	27	2	83	69.5	127	5000	6700	1.41
760310TN1	50	110	27	2	83	69.5	127	5000	6700	1.33
760311TN1	55	120	29	2	90	78	146	4800	6300	1.69
760312TN1	60	130	31	2.1	98	88	166	4500	6000	2.12
760313TN1	65	140	33	2.1	105	100	196	4000	5300	2.6
760314TN1	70	150	35	2.1	113	110	220	3800	5000	3.16
760315TN1	75	160	37	2.1	120	125	255	3600	4800	3.79
760316TN1	80	170	39	2.1	128	137	285	3400	4500	4.5
760317TN1	85	180	41	3	135	160	325	3200	4300	5.29
760318TN1	90	190	43	3	143	163	345	3000	4000	6.17
760319TN1	95	200	45	3	150	163	360	3000	4000	7.15
760320TN1	100	215	47	3	160	193	430	2600	3600	8.73
760322TN1	110	240	50	3	176	250	560	2400	3400	11.8
760324TN1	120	260	55	3	192	265	620	2200	3200	14.6
760326TN1	130	280	58	3	206	290	695	2000	3000	18.7
