SN516轴承座、SSN516轴承座、SN517轴承座、SSN517轴承座、SN518轴承座、SSN518轴承座、SN519轴承座

发布时间：2025-05-05

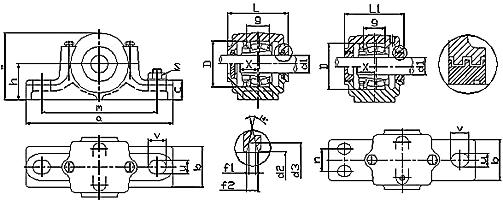

Housing No.	Shaft Dia d₁		Dimensions(mm)																			Hou- sing Wt (kg)	Bearing No.		Adapter Sleeve		Locating Ring
Housing No.	mm	in	D H8	a	b	c	g H12	h h12	L	L1	W	n	m	s	u	v	x	d₂ H12	d₃ H12	f₁ H13	f₂	Hou- sing Wt (kg)	Bearing No.		Adapter Sleeve		Number	Q T Y
SN505	20	3/4	52	165	46	22	25	40	67	70	75	25	130	M12	15	20	22	21.5	31	3	4.2	1.4	1205K 2205K	22205K	H205 H305	HE205 HE305	SR52x5 SR52x7	2 1
SN506	25	1	62	185	52	22	30	50	77	80	90	25	150	M12	15	20	22	26.5	38	4	5.4	2.15	1206K 2206K	22206K	H206 H306	HE206 HE306	SR62x7 SR62x10	2 1
SN507	30	1-1/8	72	185	52	22	33	50	82	85	95	25	150	M12	15	20	24	31.5	43	4	5.4	2.35	1207K 2207K	22207K	H207 H307	HE207 HE307	SR72x8 SR72x10	2 1
SN508	35	1-1/4	80	205	60	25	33	60	85	90	110	30	170	M12	15	20	26	36.5	48	4	5.4	3.2	1208K 2208K	22208K	H208 H308	HE208 HE308	SR80x7.5 SR80x10	2 1
SN509 SSN509	40	1-1/2	85	205	60	25	31	60	85	90	112	30	170	M12	15	20	28	41.5	53	4	5.4	3.0 4.4	1209K 2209K	22209K	H209 H309	HE209 HE309	SR85x6 SR85x8	2 1
SN510 SSN510	45	1-3/4	90	205	60	25	33	60	90	95	115	30	170	M12	15	20	28	46.5	58	4	5.4	3.75 5.0	1210K 2210K	22210K	H210 H310	HE210 HE310	SR90x6.5 SR90x10	2 1
SN511 SSN511	50	2	100	255	70	28	33	70	95	100	130	35	210	M16	18	23	30	51.5	67	5	6.9	5.3 7.15	1211K 2211K	22211K	H211 H311	HE211 HE311	SR100x6 SR100x8	2 1
SN512 SSN512	55	2-1/8	110	255	70	30	38	70	105	110	135	35	210	M16	18	23	32	56.5	72	5	6.9	6.3 7.95	1212K 2212K	22212K	H212 H312	HE212 HE312	SR110x8 SR110x10	2 1
SN513 SSN513	60	2-1/4	120	275	80	30	43	80	110	115	150	40	230	M16	18	23	36	62	77	5	6.8	6.8 9.9	1213K 2213K	22213K	H213 H313	HE213 HE313	SR120x10 SR120x12	2 1
SN515 SSN516	65	2-1/2	130	280	80	30	41	80	115	120	155	40	230	M16	18	23	38	67	82	5	6.8	7.4 9.3	1215K 2215K	22215K	H215 H315	HE215 HE315	SR130x8 SR130x10	2 1
SN516 SSN516	70	2-3/4	140	315	90	32	43	95	120	125	175	50	260	M20	22	27	40	72	89	6	8.1	11.4 14.5	1216K 2216K	22216K	H216 H316	HE216 HE316	SR140x8.5 SR140x10	2 1
SN517 SSN517	75	3	150	320	90	32	46	95	125	130	185	50	260	M20	22	27	42	77	94	6	8.1	11.1 15.5	1217K 2217K	22217K	H217 H317	HE217 HE317	SR150x9 SR150x10	2 1
SN518 SSN518	80	3-1/4	160	345	100	35	62.4	100	145	150	195	50	290	M20	22	27	50	82	99	6	8.1	17 20.2	1218K 2218K	22218K 23218K	H218 H318 H2318	HE218 HE318 HE2318	SR160x16.2 SR160x11.2 SR160x10	2 2 1
SN519 SSN519	85		170	345	100	35	53	112	140	145	210	50	290	M20	22	27	52	87	104	6	8.1	15.5	1219K 2219K	22219K	H219 H319	HE219 HE319	SR170x10.5 SR170x10	2 1
SN520 SSN520	90	3-1/2	180	380	110	40	70.3	112	160	165	218	60	320	M24	26	32	54	92	111	7	9.3	23 27.5	2220K	22220K 23220K	H320 H2320	HE320 HE2320	SR180x12.1 SR180x10	2 1
SN522 SSN522	100	4	200	410	120	45	80	125	175	180	240	70	350	M24	26	32	60	102	125	8	10.8	29 35	2222K	22222K 23222K	H322 H2322	HE322 HE2322	SR200x13.5 SR200x10	2 1
SN524 SSN524	110	4-1/4	215	410	120	45	86	140	185	190	270	70	350	M24	26	32	64	113	135	8	10.7	33.6 43.8		22224K 23224K	H3124 H2324	HE3124 HE2324	SR215x14 SR215x10	2 1
SN526 SSN526	115	4-1/2	230	445	130	50	90	150	190	195	290	70	380	M24	28	36	64	118	140	8	10.7	41 50.4		22226K 23226K	H3126 H2326	HE3126 HE2326	SR230x13 SR230x10	2 1
SN528 SSN528	125	5	250	500	150	50	98	150	205	210	305	80	420	M30	33	42	70	128	154	9	12.2	49 62		22228K 23228K	H3128 H2328	HE3128 HE2328	SR250x15 SR250x10	2 1
SN530 SSN530	135	5-1/4	270	530	160	60	106	160	220	225	325	90	450	M30	33	42	76	138	164	9	12.2	60 75		22230K 23230K	H3130 H2330	HE3130 HE2330	SR270x16.5 SR270x10	2 1
SN532 SSN532	140	5-1/2	290	550	160	60	114	170	235	240	345	90	470	M30	33	42	80	143	173	10	13.7	68.8 87		22232K 23232K	H3132 H2332	HE3132 HE2332	SR290x17 SR290x10	2 1
