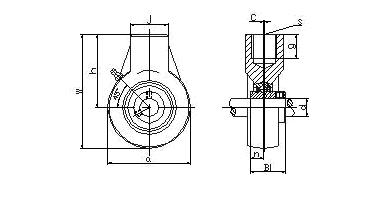

悬吊式座UCECH201、UCECH202、UCECH203、UCECH204、UCECH205、UCECH206、UCECH207、UCECH208、UCECH209、UCECH210、UCECH211、UCECH212、UCECH213、UCECH214、UCECH215

Bearing Unit NO.

Shaft Dia d

Dimensions(mm)

Bearing No.

Housing No.

Weight (kg)

(in)

(mm)

a

w

h

j

s

g

Bi

n

c

UCECH201-8
UCECH202-9
UCECH202-10
UCECH203-11
UCECH204-12
UCECH201
UCECH202
UCECH203
UCECH204

1/2
9/16
5/8
11/16
3/4

12
15
17
20

64

96

64

40

PF3/4

19

31

12.7

0

UC201-8
UC202-9
UC202-10
UC203-11
UC204-12
UC201
UC202
UC203
UC204

ECH204

0.5

UCECH205-13
UCECH205-14
UCECH205-15
UCECH205-16
UCECH205

13/16
7/8
15/16
1

25

78

103

64

40

PF3/4

19

34

14.3

0

UC205-13
UC205-14
UC205-15
UC205-16
UC205

ECH205

0.5

UCECH206-17
UCECH206-18
UCECH206-19
UCECH206-20
UCECH206

1-1/16
1-1/8
1-3/16
1-1/4

30

78

103

64

40

PF3/4

19

38.1

15.9

0

UC206-17
UC206-18
UC206-19
UC206-20
UC206

ECH206

0.5

UCECH207-20
UCECH207-21
UCECH207-22
UCECH207-23
UCECH207

1-1/4
1-5/16
1-3/8
1-7/16

35

92

116

70

40

PF3/4

19.1

42.9

17.5

0

UC207-20
UC207-21
UC207-22
UC207-23
UC207

ECH207

0.6

UCECH208-24
UCECH208-25
UCECH208

1-1/2
1-9/16

40

96

121

73

40

PF3/4

19

49.2

19

2

UC208-24
UC208-25
UC208

ECH208

0.5

UCECH209-26
UCECH209-27
UCECH209-28
UCECH209

1-5/8
1-11/16
1-3/4

45

108

136

82

48

PF3/4

21

49.2

19

5

UC209-26
UC209-27
UC209-28
UC209

ECH209

1.4

UCECH210-29
UCECH210-30
UCECH210-31
UCECH210-32
UCECH210

1-13/16
1-7/8
1-15/16
2

50

118

142

83

48

PF1

21

51.6

19

5

UC210-29
UC210-30
UC210-31
UC210-32
UC210

ECH210

1.8

UCECH211-32
UCECH211-33
UCECH211-34
UCECH211-35
UCECH211

2
2-1/16
2-1/8
2-3/16

55

126

158

95

60

PF1-1/4

25

55.6

22.2

7

UC211-32
UC211-33
UC211-34
UC211-35
UC211

ECH211

1.85

UCECH212-36
UCECH212-37
UCECH212-38
UCECH212-39
UCECH212

2-1/4
2-5/16
2-3/8
2-7/16

60

142

173

102

60

PF1-1/4

28

65.1

25.4

9

UC212-36
UC212-37
UC212-38
UC212-39
UC212

ECH212

2.87

UCECH213-40
UCECH213-41
UCECH213

2-1/2
2-9/16

65

166

200

117

70

PF1-1/2

32

65.1

25.4

9.5

UC213-40
UC213-41
UC213

ECH213

4.75

UCECH214-42
UCECH214-43
UCECH214-44
UCECH214

2-5/8
2-11/16
2-3/4

70

166

200

117

70

PF1-1/2

32

74.6

30.2

9.5

UC214-42
UC214-43
UC214-44
UC214

ECH214

4.75

UCECH215-45
UCECH215-46
UCECH215-47
UCECH215-48
UCECH215

2-13/16
2-7/8
2-15/16
3

75

166

200

117

70

PF1-1/2

32

77.8

33.2

9.5

UC215-45
UC215-46
UC215-47
UC215-48
UC215

ECH215

4.75
