立式外球面轴承带座SBLLP201、SBLLP202、SBLLP203、SBLLP204、SBLLP205、SBLLP206、SBLLP207、SBLLP201-8、SBLLP202-9、SBLLP202-10、SBLLP203-11、SBLLP204-12、SBLLP205-14、SBLLP205-15、SBLLP205-16

Bearing Unit NO.

Shaft Dia d

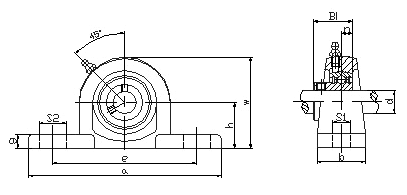

Dimensions(mm)

Bolt Used

Bearing No.

Housing No.

Housing
Wt (kg)

(in)

(mm)

h

a

e

b

s1

s2

g

w

Bi

n

(in)

(mm)

SBLLP201-8
SBLLP202-9
SBLLP202-10
SBLLP203-11
SBLLP201
SBLLP202
SBLLP203

1/2
9/16
5/8
11/16

12
15
17

30.2

114

87

25

12

16

12

57

22

6

3/8

M10

SB201-8
SB202-9
SB202-10
SB203-11
SB201
SB202
SB203

LLP203

0.29

SBLLP204-12
SBLLP204

3/4

20

33.3

125

97

27

12

16

13

64

24.7

7

3/8

M10

SB204-12
SB204

LLP204

0.38

SBLLP205-14
SBLLP205-15
SBLLP205-16
SBLLP205

7/8
15/16
1

25

36.5

130

100

29

12

16

13

70

27

7.5

3/8

M10

SB205-14
SB205-15
SB205-16
SB205

LLP205

0.45

SBLLP206-17
SBLLP206-18
SBLLP206-19
SBLLP206-20
SBLLP206

1-1/16
1-1/8
1-3/16
1-1/4

30

42.9

156

120

33

14

21

15

83

30.3

8

7/16

M12

SB206-17
SB206-18
SB206-19
SB206-20
SB206

LLP206

0.47

SBLLP207-20
SBLLP207-21
SBLLP207-22
SBLLP207-23
SBLLP207

1-1/4
1-5/16
1-3/8
1-7/16

35

47.6

165

127

35

14

21

16

93

32.9

8.5

7/16

M12

SB207-20
SB207-21
SB207-22
SB207-23
SB207

LLP207

0.6
