JSA-LG15KT直线滑块、JSA-LG20KT直线滑块、JSA-LG20KTC直线滑块、JSA-LG25KT直线滑块、JSA-LG25KTC直线滑块、JSA-LG30KT直线滑块、JSA-LG30KTC直线滑块、JSA-LG35KT直线滑块、JSA-LG35KTC直线滑块、JSA-LG45KT直线滑块、JSA-LG45KTC直线滑块、JSA-LG55KT直线滑块、JSA-LG55KTC直线滑块
发布时间：2025-05-05

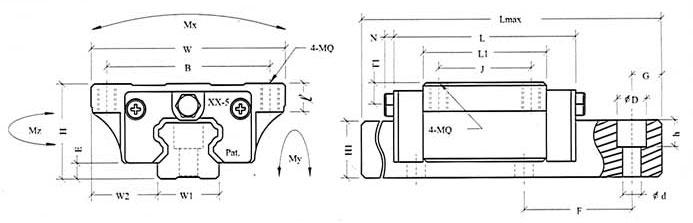

| 型号 | 组合尺寸(mm) | 滑座尺寸(mm) | 滑轨尺寸(mm) | ||||||||||||
| H | W | W2 | E | L | B×J | MQ | L1 | 油孔 | T1 | N | W1 | H1 | F | d×D×h | |
| JSA-LG15KT | 24 | 47 | 16 | 4.6 | 66 | 38×30 | Ø4.6 | 40 | Ø3 | 4.3 | 5 | 15 | 14 | 60 | 4.5×7.5×5.3 |
| JSA-LG20KT | 30 | 63 | 21.5 | 5 | 77.8 | 53×40 | Ø6 | 48.8 | M6×1 | 5 | 6.5 | 20 | 18 | 60 | 6×9.5×8.5 |
| JSA-LG20KTC | 92.4 | 63.4 | |||||||||||||
| JSA-LG25KT | 36 | 70 | 23.5 | 7 | 88 | 57×45 | Ø6.7 | 57 | M6×1 | 5 | 6.5 | 23 | 22 | 60 | 7×11×9 |
| JSA-LG25KTC | 110.1 | 79.1 | |||||||||||||
| JSA-LG30KT | 42 | 90 | 31 | 9 | 109 | 72×52 | Ø9 | 72 | M6×1 | 7 | 6.5 | 28 | 26 | 80 | 9×14×12 |
| JSA-LG30KTC | 131.3 | 94.3 | |||||||||||||
| JSA-LG35KT | 48 | 100 | 33 | 9.5 | 119 | 82×62 | Ø9 | 80 | M6×1 | 8 | 6.5 | 34 | 29 | 80 | 9×14×12 |
| JSA-LG35KTC | 144.8 | 105.8 | |||||||||||||
| JSA-LG45KT | 60 | 120 | 37.5 | 14 | 148.2 | 100×80 | Ø11 | 105 | M8×1 | 10 | 13 | 45 | 38 | 105 | 14×20×17 |
| JSA-LG45KTC | 173 | 129.8 | |||||||||||||
| JSA-LG55KT | 70 | 140 | 43.5 | 15 | 170 | 116×95 | Ø14 | 121 | M8×1 | 11 | 13 | 53 | 44 | 120 | 16×23×20 |
| JSA-LG55KTC | 205.1 | 156.1 | |||||||||||||
| 型号 | 参考资料(mm) | 基本荷重(kgf) | 容许静力矩(kgf*m) | 重量(mm) | |||||
| L max | G | 动额定负荷(G) | 静额定负荷(G) | Mx | My | Mz | 滑块 | 滑轨 | |
| (kgf) | (kgf/M) | ||||||||
| JSA-LG15KT | 4000 | 20 | 850 | 1650 | 10 | 8 | 8 | 0.19 | 1.4 |
| JSA-LG20KT | 4000 | 20 | 1450 | 2650 | 22 | 18 | 18 | 0.4 | 2.6 |
| JSA-LG20KTC | 1900 | 3330 | 28.6 | 23.4 | 23.4 | 0.52 | |||
| JSA-LG25KT | 4000 | 20 | 2140 | 4000 | 36 | 32 | 31 | 0.57 | 3.6 |
| JSA-LG25KTC | 2996 | 5600 | 50.4 | 44.8 | 43.4 | 0.72 | |||
| JSA-LG30KT | 4000 | 20 | 2980 | 5490 | 60 | 50 | 49 | 1.1 | 5.2 |
| JSA-LG30KTC | 5230 | 9270 | 125 | 95 | 95 | 2 | |||
| JSA-LG35KT | 4000 | 20 | 3960 | 7010 | 96 | 75 | 73 | 1.6 | 7.2 |
| JSA-LG35KTC | 5230 | 9270 | 125 | 95 | 95 | 2 | |||
| JSA-LG45KT | 4000 | 22.5 | 6740 | 12100 | 216 | 170 | 168 | 2.7 | 12.3 |
| JSA-LG45KTC | 8330 | 14950 | 267 | 210 | 210 | 3.6 | |||
| JSA-LG55KT | 4000 | 30 | 9940 | 17100 | 367 | 293 | 288 | 5 | 16.9 |
| JSA-LG55KTC | 12820 | 22060 | 473 | 380 | 375 | 6.4 | |||
