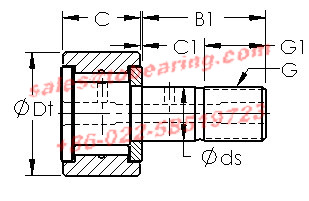

(dimensions in inches)

Bearing Type - Full Complement

Dynamic Load Rating (Cr) - 640

Static Load Rating (Cor) - 830

Max Speed (Grease) (X1000 RPM) - 10,000

Tire Outer Dia. (Dt) - 0.500

Stud Dia. (ds) - 0.190

Tire Width (C) - 0.375

Tire Washer Width (C1) - 0.031

Total Length (B) - 1.032

Stud Length (B1) - 0.625

Threads (G) - 10-32 UNF

Thread Length (G1) - 0.25

Weight (g) - 11.00

Material - Stud and Roller head: Hardened carbon steel alloy, Needle rollers - 52100 Chrome steel or equivalent

Standard finish is black oxide.

The stud has a screwdriver slot or hexagonal hole for mounting.

Some sizes are available with crowned outer race tires.

Some sizes are available with integral seals.

The load rating is based on a track hardness of HRc40 minimum.

The stud has an axially drilled hole for lubrication.

• AST CF8-1滚针轴承图纸和参数

• 发布时间：2021-07-12
• 产品型号: CF8-1
• 新型号:CF8-1
• 内径：mm 外径：mm 厚度：mm
• 主要类别：滚针轴承
• 应用行业:紧固件,化学原料及试剂,离心泵,自动排水器,过滤材料,万向节类,无机化工,电磁铁类,心电系统,光学仪器,温湿检测
• 近似型号:KOYO RVU323942 Timken K16X22X12BE Timken AX 45 65 Torrington LS130170 NTN PK34.9X50.9X45 FBJ K28X33X27 SKF NA-4905-2RS NTN KBK20×25×27.9X JNS NA 5919 SKF NKI-10/20
• 天津八零动力国际贸易有限公司专业经销 CF8-1产品，常年备货AST CF8-1 滚针轴承. 我们可以可以快速将您所需要的CF8-1产品运送到全球任意地方购买 AST CF8-1 我认准八零动力工业，价格低，品种全，交货快，质量有保证！ 滚针轴承订购电话022-58519723/22/21
