搜轴承 -- SKF -- 轴承单元 -- SKF FYTB 50 TDW轴承

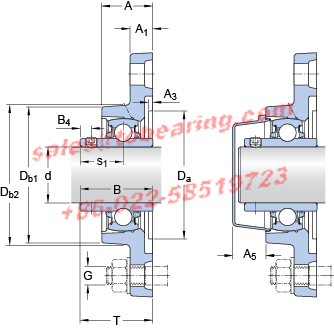

d - 50 mm

A - 43 mm

A₁ - 15 mm

A₃ - H14 - 3.2 mm

A₅ - 29.5 mm

B - 51.6 mm

B₄ - 9 mm

D_a - H11 - 101.6 mm

D_b1 - 107 mm

D_b2 - 116 mm

J - 157 mm

H - 189 mm

L - 116 mm

H - 18 mm

s₁ - 32.6 mm

T - 60.6 mm

J₆ - 127 mm

J₇ - 20 mm

N₄ - 2 mm

R_G - 1/4-28 UNF

R₁ - 28.5 mm

R_α - 45 °

Basic dynamic load rating - C - 35.1 kN

Basic static load rating - C₀ - 23.2 kN

Fatigue load limit - P_u - 0.98 kN

Limiting speed - 800 r/min

Mass bearing unit - 2.05 kg

Thread - G₂ - M10x1

Hexagonal key size for grub screw - H - 5 mm

Recommended tightening torque for grub screw - 16.5 N·m

• SKF FYTB50TDW轴承单元图纸和参数

• 发布时间：2021-08-24
• 产品型号: FYTB50TDW
• 新型号:FYTB 50 TDW
• 内径：50mm 外径：43mm 厚度：15mm
• 主要类别：轴承单元
• 应用行业:攻丝机类,光谱仪,轴瓦拉床,内螺纹类,塑料成型,昆虫计数,五金低压电气设备,凿岩机械,吊夹,塑机辅机,行走系统
• 近似型号:SKF SY 50 TF/VA201 KOYO UCTH205-15-150 INA PSHEY50-N SKF SYJ 50 KF+HA 2310 INA RCJL50-N KOYO UCTU316-500 INA PMEY50-N INA TSHE50-N INA PCJY50-N INA RASEL50-N
• 天津八零动力国际贸易有限公司专业经销 FYTB 50 TDW产品，常年备货SKF FYTB 50 TDW 轴承单元. 我们可以可以快速将您所需要的FYTB 50 TDW产品运送到全球任意地方购买 SKF FYTB 50 TDW 我认准八零动力工业，价格低，品种全，交货快，质量有保证！ 轴承单元订购电话022-58519723/22/21
