搜轴承 -- 黑板报 -- JFZD8020-8滚珠丝杠、JFZD8025-5滚珠丝杠、JFZD8025-8滚珠...
JFZD8020-8滚珠丝杠、JFZD8025-5滚珠丝杠、JFZD8025-8滚珠丝杠、JFZD8032-5滚珠丝杠、JFZD8032-8滚珠丝杠、JFZD10020-5滚珠丝杠、JFZD10020-8滚珠丝杠、JFZD10025-5滚珠丝杠、JFZD10025-8滚珠丝杠、JFZD10032-5滚珠丝杠、JFZD10032-8滚珠丝杠、JFZD10040-4滚珠丝杠、JFZD12520-5滚珠丝杠、JFZD12520-8滚珠丝杠、JFZD12525-5滚珠丝杠、JFZD12525-8滚珠丝杠
发布时间：2026-03-22

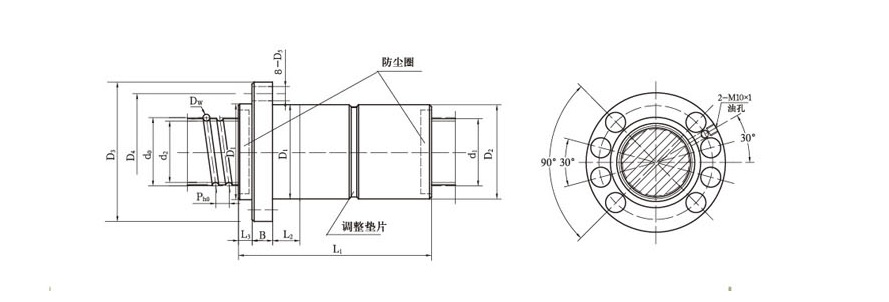

| CODE | d0 | Ph0 | Xd1 | Dw | Xd2 | n | CaKN | C0aKN | Kc | D1 | D2 | L2 | L3 | D3 | B | D5 | D4 | L1 |
| JFZD8020-8 | 80 | 20 | 78 | 12.7 | 68.9184916 | 8 | 305.1 | 1074.7 | 7919 | 125 | 125 | 25 | 15 | 170 | 28 | 13.5 | 150 | 412 |
| JFZD80225 | 80 | 25 | 78 | 12.7 | 68.9184916 | 5 | 203.7 | 670.5 | 5040 | 125 | 125 | 25 | 15 | 170 | 28 | 13.5 | 150 | 348 |
| JFZD80228 | 80 | 25 | 78 | 12.7 | 68.9184916 | 8 | 305.1 | 1072.8 | 7889 | 125 | 125 | 25 | 15 | 170 | 28 | 13.5 | 150 | 498 |
| JFZD8032-5 | 80 | 32 | 78 | 12.7 | 68.9184916 | 5 | 202.8 | 668.4 | 5007 | 125 | 125 | 25 | 15 | 170 | 28 | 13.5 | 150 | 425 |
| JFZD8032-8 | 80 | 32 | 78 | 12.7 | 68.9184916 | 8 | 303.9 | 1069.5 | 7838 | 125 | 125 | 25 | 15 | 170 | 28 | 13.5 | 150 | 617 |
| JFZD10020-5 | 100 | 20 | 97 | 12.7 | 87.9184916 | 5 | 233.7 | 887.3 | 6354 | 150 | 150 | 25 | 20 | 207 | 28 | 17.5 | 180 | 300 |
| JFZD10020-8 | 100 | 20 | 97 | 12.7 | 87.9184916 | 8 | 350.1 | 1419.7 | 9947 | 150 | 150 | 25 | 20 | 207 | 28 | 17.5 | 180 | 420 |
| JFZD100225 | 100 | 25 | 97 | 15.875 | 85.6981145 | 5 | 304.3 | 1050.5 | 6229 | 150 | 150 | 25 | 20 | 207 | 28 | 17.5 | 180 | 371 |
| JFZD100228 | 100 | 25 | 97 | 15.875 | 85.6981145 | 8 | 457 | 1679.3 | 9752 | 150 | 150 | 25 | 20 | 207 | 28 | 17.5 | 180 | 521 |
| JFZD10032-5 | 100 | 32 | 97 | 15.875 | 85.6981145 | 5 | 304.3 | 1047.4 | 6204 | 150 | 150 | 25 | 20 | 207 | 28 | 17.5 | 180 | 446 |
| JFZD10032-8 | 100 | 32 | 97 | 15.875 | 85.6981145 | 8 | 455.9 | 1675.9 | 9711 | 150 | 150 | 25 | 20 | 207 | 28 | 17.5 | 180 | 638 |
| JFZD10040-4 | 100 | 40 | 97 | 15.875 | 85.6981145 | 4 | 250.2 | 835.5 | 4895 | 150 | 150 | 40 | 20 | 207 | 32 | 17.5 | 180 | 436 |
| JFZD12520-5 | 125 | 20 | 123.5 | 12.7 | 114.4 | 5 | 258 | 1103.2 | 7580 | 170 | 170 | 25 | 25 | 244 | 32 | 22 | 210 | 298 |
| JFZD12520-8 | 125 | 20 | 123.5 | 12.7 | 114.4 | 8 | 286.6 | 1765.1 | 11865 | 170 | 170 | 25 | 25 | 244 | 32 | 22 | 210 | 418 |
| JFZD12525-5 | 125 | 25 | 123.5 | 18.256 | 110.642744 | 5 | 406.2 | 1523.5 | 7745 | 190 | 190 | 25 | 25 | 258 | 32 | 22 | 224 | 374 |
| JFZD12525-8 | 125 | 25 | 123.5 | 18.256 | 110.642744 | 8 | 608.5 | 2437.6 | 12123 | 190 | 190 | 25 | 25 | 258 | 32 | 22 | 224 | 524 |
| JFZD12532-5 | 125 | 32 | 123.5 | 20.638 | 109.21416 | 5 | 463 | 1665.2 | 7731 | 190 | 190 | 25 | 25 | 258 | 32 | 22 | 224 | 476 |
| JFZD12532-8 | 125 | 32 | 123.5 | 20.638 | 109.21416 | 8 | 693.6 | 2664.4 | 12101 | 190 | 190 | 25 | 25 | 258 | 32 | 22 | 224 | 668 |
| JFZD12540-4 | 125 | 40 | 123.5 | 20.638 | 109.21416 | 4 | 381.2 | 1329.7 | 6225 | 190 | 190 | 40 | 25 | 258 | 32 | 22 | 224 | 470 |
| JFZD16020-5 | 160 | 20 | 156.5 | 12.7 | 147.4184916 | 5 | 291.9 | 1493.2 | 8538 | 220 | 220 | 25 | 25 | 294 | 36 | 22 | 260 | 303 |
| JFZD16020-8 | 160 | 20 | 156.5 | 12.7 | 147.4184916 | 8 | 437.3 | 2389.1 | 13365 | 220 | 220 | 25 | 25 | 294 | 36 | 22 | 260 | 423 |
| JFZD160225 | 160 | 25 | 156.5 | 18.256 | 143.642744 | 5 | 464.5 | 2015.5 | 8798 | 240 | 240 | 40 | 25 | 314 | 36 | 22 | 280 | 380 |
| JFZD160228 | 160 | 25 | 156.5 | 18.256 | 143.642744 | 8 | 695.9 | 3224.7 | 13771 | 240 | 240 | 40 | 25 | 314 | 36 | 22 | 280 | 530 |
| JFZD16032-5 | 160 | 32 | 156.5 | 20.638 | 142.21416 | 5 | 543.9 | 2306.2 | 10106 | 240 | 240 | 40 | 25 | 314 | 36 | 22 | 280 | 433 |
| JFZD16032-8 | 160 | 32 | 156.5 | 20.638 | 142.21416 | 8 | 814.8 | 3690 | 15819 | 240 | 240 | 40 | 25 | 314 | 36 | 22 | 280 | 625 |
| JFZD16040-4 | 160 | 40 | 156.5 | 25.4 | 138.6427 | 4 | 592 | 2213.4 | 8112 | 240 | 240 | 40 | 25 | 314 | 36 | 22 | 280 | 451 |
| JFZD200225 | 200 | 25 | 196.5 | 18.256 | 183.642744 | 5 | 532.9 | 2736.4 | 12465 | 280 | 280 | 40 | 25 | 349 | 40 | 22 | 315 | 358 |
| JFZD200228 | 200 | 25 | 196.5 | 18.256 | 183.642744 | 8 | 798.3 | 4378.3 | 19511 | 280 | 280 | 40 | 25 | 349 | 40 | 22 | 315 | 508 |
| JFZD20032-5 | 200 | 32 | 196.5 | 20.638 | 182.21416 | 5 | 605.3 | 2949.6 | 12313 | 280 | 280 | 40 | 25 | 349 | 40 | 22 | 315 | 434 |
| JFZD20032-8 | 200 | 32 | 196.5 | 20.638 | 182.21416 | 8 | 906.8 | 4719.4 | 19274 | 280 | 280 | 40 | 25 | 349 | 40 | 22 | 315 | 626 |
| JFZD20040-4 | 200 | 40 | 196.5 | 25.4 | 178.6427 | 4 | 670.8 | 2882.8 | 10061 | 300 | 300 | 40 | 25 | 369 | 40 | 22 | 335 | 452 |
