DGF2020-0.8x4、DGZ2020-0.8x4、DGF2020-1.8x4、DGZ2020-1.8x4、DGF2025-0.8x4、DGZ2025-0.8x4、DGF2025-1.8x4、DGZ2025-1.8x4、DGF3232-0.8x4、DGZ3232-0.8x4、DGF3232-1.8x4、DGZ3232-1.8x4、DGF4040-0.8x4、DGZ4040-0.8x4、DGF4040-1.8x4、DGZ4040-1.8x4滚珠丝杠

发布时间：2025-05-03

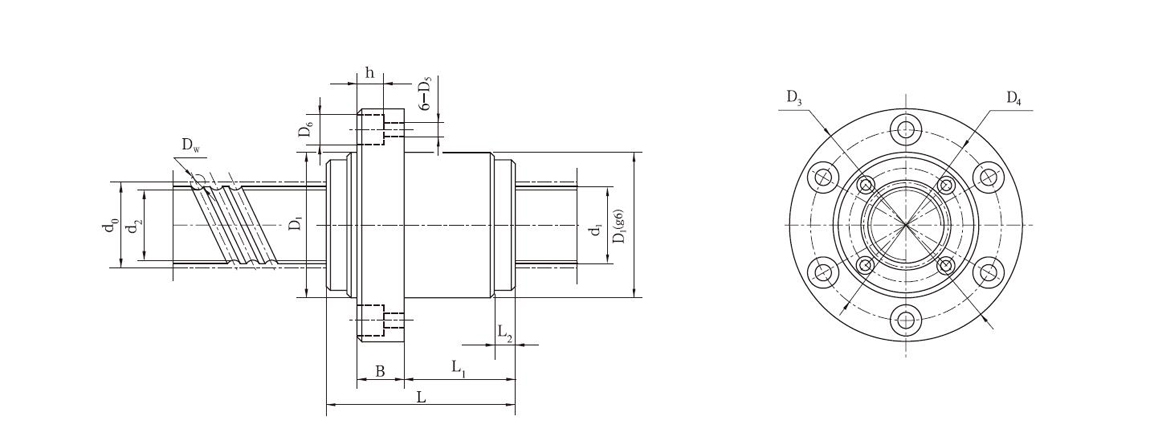

CODE d0 Ph0 d1 Dw d2 n Ca KN C0a KN D1(g6) D3 D4 D5 D6 B h L L1 L2 L3 b×t

DGF2020-0.8x4 20 20 19.3 3.5 16.4 0.8x4 5.6 11.2 40 66 53 5.8 10 9 5 31 13 8 - -

DGZ2020-0.8x4 20 20 19.3 3.5 16.4 0.8x4 5.6 11.2 40 - - - - - - 31 - 8 10 5×5

DGF2020-1.8x4 20 20 19.3 3.5 16.4 1.8x4 11.4 25.2 40 66 53 5.8 10 11 6 51 33 8 - -

DGZ2020-1.8x4 20 20 19.3 3.5 16.4 1.8x4 11.4 25.2 40 - - - - - - 51 - 8 20 5×5

DGF20220.8x4 25 25 24.3 3.5 21.4 0.8x4 6.4 14.5 45 70 56 5.8 10 10 5 35 16 8 - -

DGZ20220.8x4 25 25 24.3 3.5 21.4 0.8x4 6.4 14.5 45 - - - - - - 35 - 8 12 5×5

DGF20221.8x4 25 25 24.3 3.5 21.4 1.8x4 12.9 32.7 45 70 56 5.8 10 11 6- 60 40 8 - -

DGZ20221.8x4 25 25 24.3 3.5 21.4 1.8x4 12.9 32.7 45 - - - - - 　 60 - 8 30 5×5

DGF3232-0.8x4 32 32 31 4.763 27.1 0.8x4 11 25.6 60 92 75 7 12 13 7 48 22 12 - -

DGZ3232-0.8x4 32 32 31 4.763 27.1 0.8x4 11 25.6 60 - - - - - - 48 - 12 15 6×6

DGF3232-1.8x4 32 32 31 4.763 27.1 1.8x4 22 57.7 60 92 75 7 12 13 7 80 54 12 - -

DGZ3232-1.8x4 32 32 31 4.763 27.1 1.8x4 22 57.7 60 - - - - - - 80 - 12 40 6×6

DGF4040-0.8x4 40 40 39 5 34.9 0.8x4 12.9 33.7 71 110 90 9 15 15 9 54 26 12 - -

DGZ4040-0.8x4 40 40 39 5 34.9 0.8x4 12.9 33.7 71 - - - - - - 54 - 12 20 6×6

DGF4040-1.8x4 40 40 39 5 34.9 1.8x4 26 75.9 71 110 90 9 15 15 9 94 66 12 - -

DGZ4040-1.8x4 40 40 39 5 34.9 1.8x4 26 75.9 71 - - - - - - 94 - 12 50 6×6

上一篇：DKF2506-4滚珠丝杠、DKF2506-5滚珠丝杠、DKF2510-4滚珠丝杠、DKF3206-5滚珠丝杠、DKF3206-6滚珠丝杠、DKF3210-4滚珠丝杠、DKF3210-5滚珠丝杠、DKF3212-4滚珠丝杠、DKF3212-5滚珠丝杠、DKF4010-5滚珠丝杠、DKF4010-6滚珠丝杠、DKF4012-5滚珠丝杠、DKF4012-6滚珠丝杠、DKF4016-5滚珠丝杠 —— 下一篇：CTF1610-2.5滚珠丝杠、CTF2010-2.5滚珠丝杠、CTF2016-1.5滚珠丝杠、CTF2020-1.5滚珠丝杠、CTF2520-1.5滚珠丝杠、CTF2525-1.5滚珠丝杠、CTF3225-1.5滚珠丝杠、CTF3232-1.5滚珠丝杠、CTF4032-1.5滚珠丝杠、CTF4040-1.5滚珠丝杠

返回搜轴承首页

CODE	d0	Ph0	d1	Dw	d2	n	Ca KN	C0a KN	D1(g6)	D3	D4	D5	D6	B	h	L	L1	L2	L3	b×t
DGF2020-0.8x4	20	20	19.3	3.5	16.4	0.8x4	5.6	11.2	40	66	53	5.8	10	9	5	31	13	8	-	-
DGZ2020-0.8x4	20	20	19.3	3.5	16.4	0.8x4	5.6	11.2	40	-	-	-	-	-	-	31	-	8	10	5×5
DGF2020-1.8x4	20	20	19.3	3.5	16.4	1.8x4	11.4	25.2	40	66	53	5.8	10	11	6	51	33	8	-	-
DGZ2020-1.8x4	20	20	19.3	3.5	16.4	1.8x4	11.4	25.2	40	-	-	-	-	-	-	51	-	8	20	5×5
DGF20220.8x4	25	25	24.3	3.5	21.4	0.8x4	6.4	14.5	45	70	56	5.8	10	10	5	35	16	8	-	-
DGZ20220.8x4	25	25	24.3	3.5	21.4	0.8x4	6.4	14.5	45	-	-	-	-	-	-	35	-	8	12	5×5
DGF20221.8x4	25	25	24.3	3.5	21.4	1.8x4	12.9	32.7	45	70	56	5.8	10	11	6-	60	40	8	-	-
DGZ20221.8x4	25	25	24.3	3.5	21.4	1.8x4	12.9	32.7	45	-	-	-	-	-		60	-	8	30	5×5
DGF3232-0.8x4	32	32	31	4.763	27.1	0.8x4	11	25.6	60	92	75	7	12	13	7	48	22	12	-	-
DGZ3232-0.8x4	32	32	31	4.763	27.1	0.8x4	11	25.6	60	-	-	-	-	-	-	48	-	12	15	6×6
DGF3232-1.8x4	32	32	31	4.763	27.1	1.8x4	22	57.7	60	92	75	7	12	13	7	80	54	12	-	-
DGZ3232-1.8x4	32	32	31	4.763	27.1	1.8x4	22	57.7	60	-	-	-	-	-	-	80	-	12	40	6×6
DGF4040-0.8x4	40	40	39	5	34.9	0.8x4	12.9	33.7	71	110	90	9	15	15	9	54	26	12	-	-
DGZ4040-0.8x4	40	40	39	5	34.9	0.8x4	12.9	33.7	71	-	-	-	-	-	-	54	-	12	20	6×6
DGF4040-1.8x4	40	40	39	5	34.9	1.8x4	26	75.9	71	110	90	9	15	15	9	94	66	12	-	-
DGZ4040-1.8x4	40	40	39	5	34.9	1.8x4	26	75.9	71	-	-	-	-	-	-	94	-	12	50	6×6
