SCI01604-4滚珠丝杠、SCI01605-4滚珠丝杠、SCI02004-4滚珠丝杠、SCI02005-4滚珠丝杠、SCI02504-4滚珠丝杠、SCI02505-4滚珠丝杠、SCI02510-4滚珠丝杠、SCI03204-4滚珠丝杠、SCI03205-4滚珠丝杠、SCI03210-4滚珠丝杠、SCI04005-4滚珠丝杠、SCI04010-4滚珠丝杠、SCI05010-4滚珠丝杠、SCI06310-4滚珠丝杠、SCI08010-4滚珠丝杠

发布时间：2026-06-24

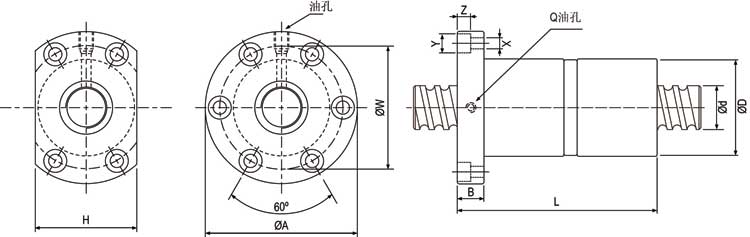

型号 滾珠螺杆 , 螺帽之基准数据
d l Da D L L1 L2 M R n Ca Coa K
SCI01604-4 16 4 2.381 30 40 9 15 3 1.5 4 640 1340 16
SCI01605-4 16 5 3.175 30 45 9 20 5 3 4 780 1790 20
SCI02004-4 20 4 2.381 34 40 9 15 3 1.5 4 670 1480 25
SCI02005-4 20 5 3.175 34 45 9 20 5 3 4 1130 2380 25
SCI02504-4 25 4 2.381 40 40 9 15 3 1.5 4 760 1950 31
SCI02505-4 25 5 3.175 40 45 9 20 5 3 4 1280 3110 35
SCI02510-4 25 10 4.762 46 85 13 30 5 3 4 1944 3877 33
SCI03204-4 32 4 2.381 46 40 9 15 3 1.5 4 860 3050 40
SCI03205-4 32 5 3.175 46 45 9 20 5 3 4 1450 4150 40
SCI03210-4 32 10 6.35 54 85 13 30 5 3 4 3390 7170 40
SCI04005-4 40 5 3.175 56 45 9 20 5 3 4 1610 5330 49
SCI04010-4 40 10 6.35 62 85 13 30 5 3 4 3910 9520 50
SCI05010-4 50 10 6.35 72 85 13 30 5 3 4 4450 12500 65
SCI06310-4 63 10 6.35 85 85 13 30 6 3.5 4 5070 16600 80
SCI08010-4 80 10 6.35 105 85 13 30 8 4.5 4 5620 21300 90
