搜轴承 -- 黑板报 -- B128-9L-DLP-TS球面滑动轴承、B136-9L-DLP-TS球面滑动轴承...
B128-9L-DLP-TS球面滑动轴承、B136-9L-DLP-TS球面滑动轴承、B144-9L-DLP-TS球面滑动轴承、B152-9L-DLP-TS球面滑动轴承、B160-9L-DLP-TS球面滑动轴承、B168-9L-DLP-TS球面滑动轴承、B176-9L-DLP-TS球面滑动轴承、B184-9L-DLP-TS球面滑动轴承、B192-9L-DLP-TS球面滑动轴承
发布时间：2025-05-04

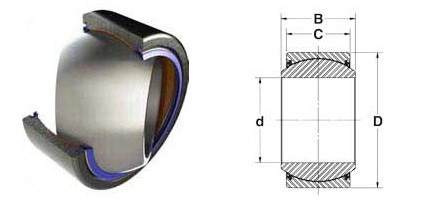

| Part | d | D | B | C |
| Inside | Outside | Inner | Outer | |
| Number | Diameter | Diameter | Ring | Ring |
| Nom. | Width | Width | ||
| B16-L-DLP-TS | 1 | 1.625 | 0.875 | 0.75 |
| B20-L-DLP-TS | 1.25 | 2 | 1.093 | 0.937 |
| B22-L-DLP-TS | 1.375 | 2.1875 | 1.187 | 1.031 |
| B24-L-DLP-TS | 1.5 | 2.4375 | 1.312 | 1.125 |
| B28-L-DLP-TS | 1.75 | 2.8125 | 1.531 | 1.312 |
| B32-L-DLP-TS | 2 | 3.1875 | 1.75 | 1.5 |
| B36-L-DLP-TS | 2.25 | 3.5625 | 1.969 | 1.687 |
| B40-L-DLP-TS | 2.5 | 3.9375 | 2.187 | 1.875 |
| B44-L-DLP-TS | 2.75 | 4.375 | 2.406 | 2.062 |
| B48-L-DLP-TS | 3 | 4.75 | 2.625 | 2.25 |
| B52-L-DLP-TS | 3.25 | 5.125 | 2.844 | 2.437 |
| B56-L-DLP-TS | 3.5 | 5.5 | 3.062 | 2.625 |
| B60-L-DLP-TS | 3.75 | 5.875 | 3.281 | 2.812 |
| B64-L-DLP-TS | 4 | 6.25 | 3.5 | 3 |
| B72-9L-DLP-TS | 4.5 | 7 | 3.937 | 3.375 |
| B80-9L-DLP-TS | 5 | 7.75 | 4.375 | 3.75 |
| B96-9L-DLP-TS | 6 | 8.75 | 4.75 | 4.125 |
| B104-9L-DLP-TS | 6.5 | 9.75 | 4.875 | 4.062 |
| B112-9L-DLP-TS | 7 | 10.5 | 5.25 | 4.375 |
| B120-9L-DLP-TS | 7.5 | 11.25 | 5.625 | 4.687 |
| B128-9L-DLP-TS | 8 | 12 | 6 | 5 |
| B136-9L-DLP-TS | 8.5 | 12.75 | 6.375 | 5.312 |
| B144-9L-DLP-TS | 9 | 13.5 | 6.75 | 5.625 |
| B152-9L-DLP-TS | 9.5 | 14.25 | 7.125 | 5.937 |
| B160-9L-DLP-TS | 10 | 15 | 7.5 | 6.25 |
| B168-9L-DLP-TS | 10.5 | 15.75 | 7.875 | 6.562 |
| B176-9L-DLP-TS | 11 | 16.5 | 8.25 | 6.875 |
| B184-9L-DLP-TS | 11.5 | 17.25 | 8.625 | 7.187 |
| B192-9L-DLP-TS | 12 | 18 | 9 | 7.5 |
