44829/1120圆柱滚子轴承、44827/1120圆柱滚子轴承、44829/1180圆柱滚子轴承、44827/1180圆柱滚子轴承、44827/1250圆柱滚子轴承、44829/1320圆柱滚子轴承、42829/1320圆柱滚子轴承、44827/1320圆柱滚子轴承、44827/1400圆柱滚子轴承、44827/1500圆柱滚子轴承
发布时间：2019-10-15

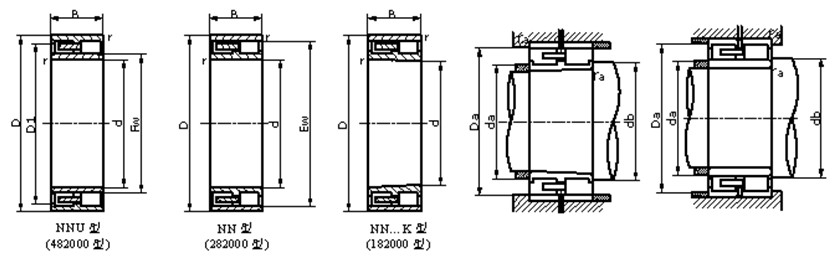

| 轴承代号 | 外 形 尺 寸 | 基本额定载荷 | 结构尺寸 | 安装尺寸 | 重量 | |||||||||||
| mm | kN | mm | mm | 参考 | ||||||||||||
| 现代号 | 原代号 | d | D | B | rmin | Cr | Cor | Fw | Ew | damin | damax | Damin | Damax | dbmin | ramax | Kg |
| NNU48/850 | 44828/850 | 850 | 1030 | 180 | 5 | 3400 | 11400 | 905 | - | 888 | - | - | - | 912 | 4 | 310 |
| NNU49/850 | 44829/850 | 850 | 1120 | 272 | 6 | 5346 | 16200 | 939 | - | 876 | 930 | - | 1094 | 946 | 5 | 715 |
| NN30/850 | 32821/850 | 850 | 1220 | 272 | 7.5 | 7128 | 16740 | - | 1130 | 883 | - | 1136 | 1187 | - | 6 | 940 |
| NNU40/850 | 44821/850 | 850 | 1220 | 365 | 7.5 | 10530 | 25650 | 940 | - | 883 | 923 | - | 1187 | 947 | 6 | 1340 |
| NNU41/850 | 44827/850 | 850 | 1360 | 500 | 6 | 19080 | 40500 | 976 | - | 897 | 935 | - | 1334 | 963 | 5 | 2900 |
| NNU49/900 | 44829/900 | 900 | 1180 | 280 | 6 | 5940 | 18000 | 986 | - | 926 | 977 | - | 1154 | 993 | 5 | 805 |
| NN30/900 | 32821/900 | 900 | 1280 | 280 | 7.5 | 7425 | 18000 | - | 1185 | 933 | - | 1191 | 1257 | - | 6 | 1050 |
| NNU40/900 | 44821/900 | 900 | 1280 | 375 | 7.5 | 11520 | 28350 | 990 | - | 933 | 963 | - | 1257 | 997 | 6 | 1500 |
| NNU41/900 | 44827/900 | 900 | 1420 | 515 | 6 | 19800 | 42750 | 1032 | - | 947 | 1008 | - | 1394 | 1039 | 5 | 3180 |
| NNU49/950 | 44829/950 | 950 | 1250 | 300 | 7.5 | 6633 | 20160 | 1046 | - | 983 | 1036 | - | 1217 | 1053 | 6 | 960 |
| NN30/950 | 32821/950 | 950 | 1360 | 300 | 7.5 | 8217 | 20160 | - | 1255 | 983 | - | 1263 | 1327 | - | 6 | 1300 |
| NNU40/950 | 44821/950 | 950 | 1360 | 412 | 7.5 | 12780 | 31950 | 1050 | - | 983 | 1033 | - | 1327 | 1057 | 6 | 1900 |
| NNU41/950 | 44827/950 | 950 | 1500 | 545 | 6 | 22950 | 51300 | 1092 | - | 997 | 1068 | - | 1474 | 1099 | 5 | 3830 |
| NNU49/1000 | 44829/1000 | 1000 | 1320 | 315 | 7.5 | 7722 | 23400 | 1103 | - | 1033 | 1096 | - | 1287 | 1110 | 6 | 1250 |
| NN49/1000 | 42829/1000 | 1000 | 1320 | 315 | 7.5 | 8580 | 25200 | - | 1238 | 1033 | - | 1249 | 1287 | - | 6 | 1200 |
| NN30/1000 | 32821/1000 | 1000 | 1420 | 308 | 7.5 | 9090 | 22050 | - | 1316 | 1033 | - | 1324 | 1387 | - | 6 | 1400 |
| NNU40/1000 | 44821/1000 | 1000 | 1420 | 412 | 7.5 | 13860 | 34200 | 1101 | - | 1033 | 1084 | - | 1387 | 1108 | 6 | 2000 |
| NNU41/1000 | 44827/1000 | 1000 | 1580 | 580 | 6 | 24750 | 55800 | 1154 | - | 1047 | 1128 | - | 1474 | 1161 | 5 | 4270 |
| NNU49/1060 | 44829/1060 | 1060 | 1400 | 335 | 7.5 | 9450 | 27450 | 1160 | - | 1093 | 1150 | - | 1367 | 1167 | 6 | 1350 |
| NN30/1060 | 32821/1060 | 1060 | 1500 | 325 | 9.5 | 9900 | 24750 | - | 1391 | 1100 | - | 1399 | 1460 | - | 8 | 1650 |
| NNU41/1060 | 44827/1060 | 1060 | 1660 | 600 | 7.5 | 27270 | 62550 | 1214 | - | 1116 | 1189 | - | 1627 | 1221 | 6 | 5070 |
| NNU49/1120 | 44829/1120 | 1120 | 1460 | 335 | 7.5 | 9450 | 28350 | 1220 | - | 1153 | 1210 | - | 1427 | 1227 | 6 | 1450 |
| NNU41/1120 | 44827/1120 | 1120 | 1750 | 630 | 7.5 | 30240 | 68850 | 1279 | - | 1176 | 1253 | - | 1717 | 1286 | 6 | 5600 |
| NNU49/1180 | 44829/1180 | 1180 | 1540 | 355 | 7.5 | 10710 | 32400 | 1285 | - | 1213 | 1270 | - | 1507 | 1293 | 6 | 1650 |
| NNU41/1180 | 44827/1180 | 1180 | 1850 | 670 | 7.5 | 33210 | 76500 | 1350 | - | 1227 | 1320 | - | 1817 | 1358 | 6 | 7200 |
| NNU41/1250 | 44827/1250 | 1250 | 1950 | 710 | 7.5 | 37620 | 88200 | 1426 | - | 1297 | 1396 | - | 1917 | 1434 | 6 | 8000 |
| NNU49/1320 | 44829/1320 | 1320 | 1720 | 400 | 7.5 | 12420 | 38250 | 1440 | - | 1353 | 1420 | - | 1687 | 1448 | 6 | 3100 |
| NN49/1320 | 42829/1320 | 1320 | 1720 | 400 | 7.5 | 13800 | 42500 | - | 1620 | 1353 | - | 1640 | 1687 | - | 6 | 3060 |
| NNU41/1320 | 44827/1320 | 1320 | 2060 | 750 | 7.5 | 41130 | 95400 | 1507 | - | 1367 | 1474 | - | 2027 | 1515 | 6 | 9400 |
| NNU41/1400 | 44827/1400 | 1400 | 2180 | 775 | 9.5 | 44550 | 104400 | 1598 | - | 1470 | 1564 | - | 2140 | 1608 | 8 | 10700 |
| NNU41/1500 | 44827/1500 | 1500 | 2300 | 800 | 9.5 | 47520 | 118800 | 1709 | - | 1570 | 1674 | - | 2260 | 1718 | 8 | 12300 |
