RNFCL2020A3S滚珠丝杠与螺母、RNFCL2020A6滚珠丝杠与螺母、RNFCL2020A6S滚珠丝杠与螺母、RNFCL2525A3滚珠丝杠与螺母、RNFCL2525A3S滚珠丝杠与螺母、RNFCL2525A6滚珠丝杠与螺母、RNFCL2525A6S滚珠丝杠与螺母、RNFCL3232A3滚珠丝杠与螺母、RNFCL3232A3S滚珠丝杠与螺母 — 搜轴承黑板报
搜轴承 -- 黑板报 -- RNFCL2020A3S滚珠丝杠与螺母、RNFCL2020A6滚珠丝杠与螺母...

RNFCL2020A3S滚珠丝杠与螺母、RNFCL2020A6滚珠丝杠与螺母、RNFCL2020A6S滚珠丝杠与螺母、RNFCL2525A3滚珠丝杠与螺母、RNFCL2525A3S滚珠丝杠与螺母、RNFCL2525A6滚珠丝杠与螺母、RNFCL2525A6S滚珠丝杠与螺母、RNFCL3232A3滚珠丝杠与螺母、RNFCL3232A3S滚珠丝杠与螺母

发布时间：2025-12-15

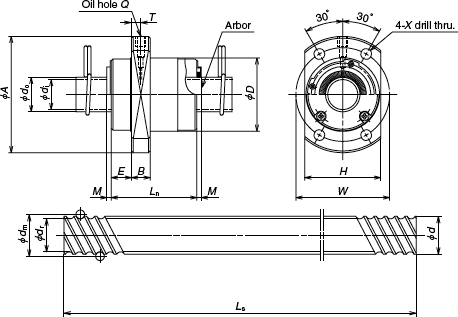

Part number d l Dw dm dr Turns x Circuits Ca C0a Axial play max. D A H B E
RNFCL1212A3 12 12 2.381 12.65 10.1 1.7x2 3740 6640 0.1 26 44 28 6 9
RNFCL1212A6 12 12 2.381 12.65 10.1 1.7x4 6780 13300 0.1 26 44 28 6 9
RNFCL1520A3 15 20 3.175 15.5 12.2 1.7x2 6730 12300 0.1 33 51 35 10 11
RNFCL1520A3S 15 20 3.175 15.5 12.2 1.7x2 6730 12300 0.1 33 51 35 10 11
RNFCL1616A3 16 16 2.778 16.65 13.5 1.7x2 5430 10400 0.1 32 53 34 10 10
RNFCL1616A3S 16 16 2.778 16.65 13.5 1.7x2 5430 10400 0.1 32 53 34 10 10
RNFCL1616A6 16 16 2.778 16.65 13.5 1.7x4 9860 20800 0.1 32 53 34 10 10
RNFCL1616A6S 16 16 2.778 16.65 13.5 1.7x4 9860 20800 0.1 32 53 34 10 10
RNFCL2020A3 20 20 3.175 20.75 17.3 1.7x2 7810 16500 0.1 39 62 41 10 11.5
RNFCL2020A3S 20 20 3.175 20.75 17.3 1.7x2 7810 16500 0.1 39 62 41 10 11.5
RNFCL2020A6 20 20 3.175 20.75 17.3 1.7x4 14200 33000 0.1 39 62 41 10 11.5
RNFCL2020A6S 20 20 3.175 20.75 17.3 1.7x4 14200 33000 0.1 39 62 41 10 11.5
RNFCL2525A3 25 25 3.969 26 22 1.7x2 11700 25800 0.12 47 74 49 12 13
RNFCL2525A3S 25 25 3.969 26 22 1.7x2 11700 25800 0.12 47 74 49 12 13
RNFCL2525A6 25 25 3.969 26 22 1.7x4 21200 51500 0.12 47 74 49 12 13
RNFCL2525A6S 25 25 3.969 26 22 1.7x4 21200 51500 0.12 47 74 49 12 13
RNFCL3232A3 32 32 4.762 33.25 28 1.7x2 17100 40500 0.15 58 92 60 12 16
RNFCL3232A3S 32 32 4.762 33.25 28 1.7x2 17100 40500 0.15 58 92 60 12 16
RNFCL3232A6 32 32 4.762 33.25 28 1.7x4 31000 81000 0.15 58 92 60 12 16
RNFCL3232A6S 32 32 4.762 33.25 28 1.7x4 31000 81000 0.15 58 92 60 12 16
RNFCL4040A3 40 40 6.35 41.75 35 1.7x2 27200 67900 0.2 73 114 75 15 19.5
RNFCL4040A3S 40 40 6.35 41.75 35 1.7x2 27200 67900 0.2 73 114 75 15 19.5
RNFCL4040A6 40 40 6.35 41.75 35 1.7x4 49300 136000 0.2 73 114 75 15 19.5
RNFCL4040A6S 40 40 6.35 41.75 35 1.7x4 49300 136000 0.2 73 114 75 15 19.5
RNFCL5050A3 50 50 7.938 52.25 44 1.7x2 40600 106000 0.25 90 135 92 20 21.5
RNFCL5050A3S 50 50 7.938 52.25 44 1.7x2 40600 106000 0.25 90 135 92 20 21.5
RNFCL5050A6 50 50 7.938 52.25 44 1.7x4 73700 212000 0.25 90 135 92 20 21.5
RNFCL5050A6S 50 50 7.938 52.25 44 1.7x4 73700 212000 0.25 90 135 92 20 21.5
Part number Ln M W X Q T Mass (kg) d0 di Standard length LS Standard length LS Standard length LS Screw shaft No. Shaft mass/m (kg)
RNFCL1212A3 30 - 35 4.5 M3x0.5 3 0.12 10.1 8.1 400 400 400 0.74
RNFCL1212A6 30 - 35 4.5 M3x0.5 3 0.12 10.1 8.1 400 400 400 0.74
RNFCL1520A3 45 - 42 4.5 M6x1 5 0.28 12.2 10.2 500 500 500 1.15
RNFCL1520A3S 45 3 42 4.5 M6x1 5 0.28 12.2 10.2 500 500 500 1.15
RNFCL1616A3 38 - 42 4.5 M6x1 5 0.23 13.5 11.5 500 500 500 1.37
RNFCL1616A3S 38 3 42 4.5 M6x1 5 0.23 13.5 11.5 500 500 500 1.37
RNFCL1616A6 38 - 42 4.5 M6x1 5 0.23 13.5 11.5 500 500 500 1.37
RNFCL1616A6S 38 3 42 4.5 M6x1 5 0.23 13.5 11.5 500 500 500 1.37
RNFCL2020A3 46 - 50 5.5 M6x1 5 0.37 17.3 14.9 500 500 500 2.19
RNFCL2020A3S 46 3 50 5.5 M6x1 5 0.37 17.3 14.9 500 500 500 2.19
RNFCL2020A6 46 - 50 5.5 M6x1 5 0.37 17.3 14.9 500 500 500 2.19
RNFCL2020A6S 46 3 50 5.5 M6x1 5 0.37 17.3 14.9 500 500 500 2.19
RNFCL2525A3 55 - 60 6.6 M6x1 6 0.62 22 19.6 1000 1000 1000 3.43
RNFCL2525A3S 55 3 60 6.6 M6x1 6 0.62 22 19.6 1000 1000 1000 3.43
RNFCL2525A6 55 - 60 6.6 M6x1 6 0.62 22 19.6 1000 1000 1000 3.43
RNFCL2525A6S 55 3 60 6.6 M6x1 6 0.62 22 19.6 1000 1000 1000 3.43
RNFCL3232A3 70 - 74 9 M6x1 5.5 1.1 28 25.6 1000 1000 1000 5.71
RNFCL3232A3S 70 3 74 9 M6x1 5.5 1.1 28 25.6 1000 1000 1000 5.71
RNFCL3232A6 70 - 74 9 M6x1 5.5 1.1 28 25.6 1000 1000 1000 5.71
RNFCL3232A6S 70 3 74 9 M6x1 5.5 1.1 28 25.6 1000 1000 1000 5.71
RNFCL4040A3 85 - 93 11 M6x1 6.5 2.09 35 31.8 2000 2000 2000 8.82
RNFCL4040A3S 85 3.5 93 11 M6x1 6.5 2.09 35 31.8 2000 2000 2000 8.82
RNFCL4040A6 85 - 93 11 M6x1 6.5 2.09 35 31.8 2000 2000 2000 8.82
RNFCL4040A6S 85 3.5 93 11 M6x1 6.5 2.09 35 31.8 2000 2000 2000 8.82
RNFCL5050A3 107 - 112 14 M6x1 7 3.9 44 40.8 2000 2000 2000 13.81
RNFCL5050A3S 107 3.5 112 14 M6x1 7 3.9 44 40.8 2000 2000 2000 13.81
RNFCL5050A6 107 - 112 14 M6x1 7 3.9 44 40.8 2000 2000 2000 13.81
RNFCL5050A6S 107 3.5 112 14 M6x1 7 3.9 44 40.8 2000 2000 2000 13.81
