RNCT2505A5S滚珠丝杠与螺母系列、RNCT2510A5滚珠丝杠与螺母系列、RNCT2510A5S滚珠丝杠与螺母系列、RNCT2806A5滚珠丝杠与螺母系列、RNCT2806A5S滚珠丝杠与螺母系列、RNCT3210A5滚珠丝杠与螺母系列、RNCT3210A5S滚珠丝杠与螺母系列、RNCT3610A5滚珠丝杠与螺母系列

发布时间：2025-05-05

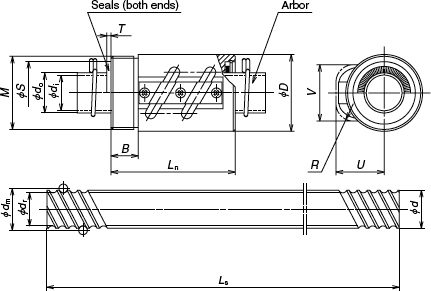

Part number d l Dw dm dr Turns x Circuits Ca C0a Axial play max. D M B Ln
RNCT1003A3.5 10 3 2.381 10.65 8.1 3.5x1 3780 6730 0.1 20 M18x1 10 38
RNCT1404A3.5S 14 4 2.778 14.5 11.5 3.5x1 5370 10800 0.1 25 M24x1 10 43
RNCT1405A2.5S 14 5 3.175 14.5 11 2.5x1 5260 9720 0.1 30 M26x1.5 10 45
RNCT1808A3.5 18 8 4.762 18.5 13.6 3.5x1 13200 25800 0.15 34 M32x1.5 12 58
RNCT1808A3.5S 18 8 4.762 18.5 13.6 3.5x1 13200 25800 0.15 34 M32x1.5 12 58
RNCT2005A2.5 20 5 3.175 20.5 17 2.5x1 6360 14200 0.1 40 M36x1.5 12 48
RNCT2005A2.5S 20 5 3.175 20.5 17 2.5x1 6360 14200 0.1 40 M36x1.5 12 48
RNCT2505A5 25 5 3.175 25.5 22 2.5x2 12800 36300 0.1 42 M40x1.5 15 69
RNCT2505A5S 25 5 3.175 25.5 22 2.5x2 12800 36300 0.1 42 M40x1.5 15 69
RNCT2510A5 25 10 6.35 26 19 2.5x2 31800 70300 0.2 44 M42x1.5 15 92
RNCT2510A5S 25 10 6.35 26 19 2.5x2 31800 70300 0.2 44 M42x1.5 15 92
RNCT2806A5 28 6 3.175 28.5 25 2.5x2 13500 40600 0.1 50 M45x1.5 15 79
RNCT2806A5S 28 6 3.175 28.5 25 2.5x2 13500 40600 0.1 50 M45x1.5 15 79
RNCT3210A5 32 10 6.35 33.75 27 2.5x2 35700 92200 0.2 55 M50x1.5 18 97
RNCT3210A5S 32 10 6.35 33.75 27 2.5x2 35700 92200 0.2 55 M50x1.5 18 97
RNCT3610A5 36 10 6.35 37 30 2.5x2 38100 102000 0.2 60 M55x2 18 98
RNCT3610A5S 36 10 6.35 37 30 2.5x2 38100 102000 0.2 60 M55x2 18 98
RNCT4010A7 40 10 6.35 41.75 35 3.5x2 53500 164000 0.2 65 M60x2 25 125
RNCT4010A7S 40 10 6.35 41.75 35 3.5x2 53500 164000 0.2 65 M60x2 25 125
RNCT4512A5 45 12 7.144 46.5 39 2.5x2 49600 147000 0.23 70 M65x2 30 124
RNCT4512A5S 45 12 7.144 46.5 39 2.5x2 49600 147000 0.23 70 M65x2 30 124
RNCT5010A7 50 10 6.35 51.75 45 3.5x2 59500 205000 0.2 80 M75x2 40 140
RNCT5010A7S 50 10 6.35 51.75 45 3.5x2 59500 205000 0.2 80 M75x2 40 140
RNCT5016A5 50 16 9.525 52 42 2.5x2 99900 293000 0.23 85 M80x2 40 158
RNCT5016A5S 50 16 9.525 52 42 2.5x2 99900 293000 0.23 85 M80x2 40 158
Part number U V R Mass (kg) S T d0 di Standard length LS Standard length LS Standard length LS Screw shaft No. Shaft mass/m (kg)
RNCT1003A3.5 15 15 7 0.049 - - 8.1 6.1 400 400 400 　 0.5
RNCT1404A3.5S 19 20 7 0.083 - - 11.5 9.5 500 500 500 　 1.02
RNCT1405A2.5S 22 21 8 0.15 - - 11 9 500 500 500 　 1
RNCT1808A3.5 27 27 14 0.21 28.5 - 13.6 11.6 500 500 500 　 1.6
RNCT1808A3.5S 27 27 14 0.21 28.5 2.5 13.6 11.6 500 500 500 　 1.6
RNCT2005A2.5 28 27 10 0.28 29.5 - 17 14.6 500 500 500 　 2.17
RNCT2005A2.5S 28 27 10 0.28 29.5 2.5 17 14.6 500 500 500 　 2.17
RNCT2505A5 28 31 10 0.38 34.5 - 22 19.6 1000 1000 1000 　 3.47
RNCT2505A5S 28 31 10 0.38 34.5 2.5 22 19.6 1000 1000 1000 　 3.47
RNCT2510A5 34 37 17 0.49 38.5 - 19 16.6 1000 1000 1000 　 3.13
RNCT2510A5S 34 37 17 0.49 38.5 2.5 19 16.6 1000 1000 1000 　 3.13
RNCT2806A5 33 34 10 0.68 37.5 - 25 22.6 1000 1000 1000 　 4.47
RNCT2806A5S 33 34 10 0.68 37.5 2.5 25 22.6 1000 1000 1000 　 4.47
RNCT3210A5 39 42 17 0.79 45.5 - 27 24.6 1000 1000 1000 　 5.53
RNCT3210A5S 39 42 17 0.79 45.5 2.5 27 24.6 1000 1000 1000 　 5.53
RNCT3610A5 42 46 17 0.97 50.5 - 30 27.6 1000 1000 1000 　 6.91
RNCT3610A5S 42 46 17 0.97 50.5 3 30 27.6 1000 1000 1000 　 6.91
RNCT4010A7 44 50 20 1.37 54.5 - 35 31.8 2000 2000 2000 　 8.87
RNCT4010A7S 44 50 20 1.37 54.5 3 35 31.8 2000 2000 2000 　 8.87
RNCT4512A5 47 55 20 1.42 60.5 - 39 35.8 2000 2000 2000 　 11.16
RNCT4512A5S 47 55 20 1.42 60.5 3 39 35.8 2000 2000 2000 　 11.16
RNCT5010A7 52 59 20 2.41 64.5 - 45 41.8 2000 2000 2000 　 14.15
RNCT5010A7S 52 59 20 2.41 64.5 3 45 41.8 2000 2000 2000 　 14.15
RNCT5016A5 57 63 25 3.14 68.5 - 42 38.8 2000 2000 2000 　 13.48
RNCT5016A5S 57 63 25 3.14 68.5 3 42 38.8 2000 2000 2000 　 13.48
