YSLR-M190X3锁紧螺母、YSLR-M200X3锁紧螺母、YSLR-M210X3锁紧螺母、YSLR-M220X3锁紧螺母、YSLR-M230X3锁紧螺母、YSLR-M240X3锁紧螺母、YSLR-M250X3锁紧螺母、YSLR-M260X4锁紧螺母、YSLR-M270X4锁紧螺母、YSLR-M280X4锁紧螺母、YSLR-M290X4锁紧螺母、YSLR-M300X4锁紧螺母
发布时间：2025-05-04

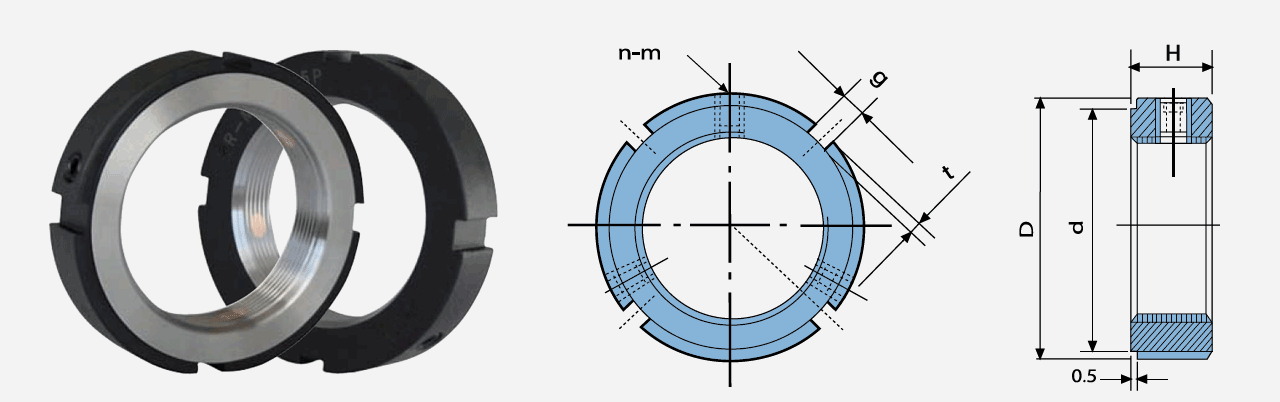

| 型 号 | D | H | g | t | d | n-m | 扭紧力矩 | 轴向载荷 |
| Thread | mm | mm | mm | mm | mm | Max.Nm | KN | |
| YSLR-M6x0.5 | 16 | 8 | 3 | 2 | 13 | 2-M4 | 3.5 | 17 |
| YSLR-M8x0.75 | 16 | 8 | 3 | 2 | 13 | 2-M4 | 3.5 | 23 |
| YSLR-M10x0.75 | 18 | 8 | 3 | 2 | 16 | 2-M4 | 3.5 | 31 |
| YSLR-M10x1 | 18 | 8 | 3 | 2 | 16 | 2-M4 | 3.5 | 31 |
| YSLR-M12x1 | 20（22） | 8 | 3 | 2 | 18 | 2-M4 | 3.5 | 38 |
| YSLR-M12x1.25 | 20（22） | 8 | 3 | 2 | 18 | 2-M4 | 3.5 | 38 |
| YSLR-M14x1.5 | 25 | 8 | 3 | 2 | 21 | 2-M4 | 3.5 | 50 |
| YSLR-M15x1 | 25 | 8 | 3 | 2 | 21 | 2-M4 | 3.5 | 50 |
| YSLR-M16x1.5 | 28 | 10 | 4 | 2 | 23 | 2-M5 | 4.5 | 57 |
| YSLR-M17x1 | 28 | 10 | 4 | 2 | 23 | 2-M5 | 4.5 | 57 |
| YSLR-M18x1.5 | 30 | 10 | 4 | 2 | 25 | 2-M5 | 4.5 | 62 |
| YSLR-M20x1 | 32 | 10 | 4 | 2 | 27 | 3-M5 | 4.5 | 69 |
| YSLR-M20x1.5 | 32 | 10 | 4 | 2 | 27 | 3-M5 | 4.5 | 69 |
| YSLR-M22x1.5 | 35 | 10 | 4 | 2 | 30 | 3-M5 | 4.5 | 81 |
| YSLR-M24x1.5 | 38 | 12 | 5 | 2 | 33 | 3-M6 | 8 | 90 |
| YSLR-M25x1.5 | 38 | 12 | 5 | 2 | 33 | 3-M6 | 8 | 90 |
| YSLR-M27x1.5 | 42 | 12 | 5 | 2 | 37 | 3-M6 | 8 | 98 |
| YSLR-M30x1.5 | 45 | 12 | 5 | 2 | 40 | 3-M6 | 8 | 112 |
| YSLR-M33x1.5 | 52 | 12 | 5 | 2 | 45 | 3-M6 | 8 | 134 |
| YSLR-M35x1.5 | 52 | 12 | 5 | 2 | 47 | 3-M6 | 8 | 134 |
| YSLR-M36x1.5 | 55 | 14 | 6 | 2.5 | 49 | 3-M6 | 8 | 143 |
| YSLR-M39x1.5 | 58 | 14 | 6 | 2.5 | 52 | 3-M6 | 8 | 157 |
| YSLR-M40x1.5 | 58 | 14 | 6 | 2.5 | 52 | 3-M6 | 8 | 157 |
| YSLR-M42x1.5 | 62 | 14 | 6 | 2.5 | 56 | 3-M6 | 8 | 176 |
| YSLR-M45x1.5 | 65 | 14 | 6 | 2.5 | 59 | 3-M6 | 8 | 181 |
| YSLR-M48x1.5 | 68 | 14 | 6 | 2.5 | 62 | 3-M6 | 8 | 193 |
| YSLR-M50x1.5 | 70 | 14 | 6 | 2.5 | 64 | 3-M8 | 8 | 205 |
| YSLR-M52x1.5 | 73 | 16 | 7 | 3 | 66 | 3-M8 | 18 | 213 |
| YSLR-M55x1.5 | 75 | 16 | 7 | 3 | 68 | 3-M8 | 18 | 229 |
| YSLR-M55x2 | 75 | 16 | 7 | 3 | 68 | 3-M8 | 18 | 229 |
| YSLR-M56x2 | 77 | 16 | 7 | 3 | 70 | 3-M8 | 18 | 240 |
| YSLR-M60x2 | 80 | 16 | 7 | 3 | 73 | 3-M8 | 18 | 255 |
| YSLR-M64x2 | 85 | 16 | 7 | 3 | 78 | 3-M8 | 18 | 280 |
| YSLR-M65x2 | 85 | 16 | 7 | 3 | 78 | 3-M8 | 18 | 280 |
| YSLR-M68x2 | 92 | 18 | 8 | 3.5 | 84 | 3-M8 | 18 | 305 |
| YSLR-M70x2 | 92 | 18 | 8 | 3.5 | 84 | 3-M8 | 18 | 305 |
| YSLR-M72x2 | 95 | 18 | 8 | 3.5 | 86 | 3-M8 | 18 | 320 |
| YSLR-M75x2 | 98 | 18 | 8 | 3.5 | 90 | 3-M8 | 18 | 331 |
| YSLR-M76x2 | 100 | 18 | 8 | 3.5 | 92 | 3-M8 | 18 | 342 |
| YSLR-M80x2 | 105 | 18 | 8 | 3.5 | 96 | 3-M8 | 18 | 355 |
| YSLR-M85x2 | 110 | 18 | 8 | 3.5 | 102 | 3-M8 | 18 | 385 |
| YSLR-M90x2 | 120 | 20 | 10 | 4 | 108 | 3-M8 | 18 | 410 |
| YSLR-M95x2 | 125 | 20 | 10 | 4 | 113 | 3-M8 | 18 | 450 |
| YSLR-M100x2 | 130 | 20 | 10 | 4 | 118 | 3-M8 | 18 | 465 |
| YSLR-M105x2 | 140 | 22 | 12 | 5 | 125 | 3-M8 | 18 | 495 |
| YSLR-M110x2 | 145 | 22 | 12 | 5 | 132 | 3-M8 | 18 | 520 |
| YSLR-M115x2 | 150 | 22 | 12 | 5 | 137 | 3-M8 | 18 | 550 |
| YSLR-M120x2 | 155 | 24 | 12 | 5 | 142 | 3-M8 | 18 | 580 |
| YSLR-M125x2 | 160 | 24 | 12 | 5 | 147 | 3-M8 | 18 | 610 |
| YSLR-M130x2 | 165 | 24 | 12 | 5 | 152 | 3-M8 | 18 | 630 |
| YSLR-M135x2 | 175 | 26 | 14 | 6 | 160 | 3-M10 | 35 | 670 |
| YSLR-M140x2 | 180 | 26 | 14 | 6 | 165 | 3-M10 | 35 | 690 |
| YSLR-M145x2 | 190 | 26 | 14 | 6 | 175 | 3-M10 | 35 | 720 |
| YSLR-M150x2 | 195 | 26 | 14 | 6 | 180 | 3-M10 | 35 | 750 |
| YSLR-M155x3 | 200 | 28 | 16 | 7 | 180 | 3-M10 | 35 | 830 |
| YSLR-M160x3 | 210 | 28 | 16 | 7 | 190 | 3-M10 | 35 | 980 |
| YSLR-M165x3 | 210 | 28 | 16 | 7 | 190 | 3-M10 | 35 | 1030 |
| YSLR-M170x3 | 220 | 28 | 16 | 7 | 200 | 3-M10 | 35 | 1130 |
| YSLR-M180x3 | 230 | 30 | 18 | 8 | 205 | 3-M12 | 60 | 1300 |
| YSLR-M190x3 | 240 | 30 | 18 | 8 | 215 | 3-M12 | 60 | 1470 |
| YSLR-M200x3 | 250 | 30 | 18 | 8 | 225 | 3-M12 | 60 | 1600 |
| YSLR-M210x3 | 260 | 30 | 18 | 8 | 240 | 3-M12 | 60 | 2000 |
| YSLR-M220x3 | 270 | 30 | 18 | 8 | 250 | 3-M12 | 60 | 2050 |
| YSLR-M230x3 | 280 | 34 | 20 | 9 | 258 | 3-M12 | 60 | 2100 |
| YSLR-M240x3 | 290 | 34 | 20 | 9 | 268 | 3-M12 | 60 | 2200 |
| YSLR-M250x3 | 300 | 34 | 20 | 9 | 278 | 3-M12 | 60 | 2300 |
| YSLR-M260x4 | 310 | 34 | 22 | 10 | 288 | 3-M14 | 100 | 2400 |
| YSLR-M270x4 | 320 | 34 | 22 | 10 | 298 | 3-M14 | 100 | 2500 |
| YSLR-M280x4 | 330 | 34 | 22 | 10 | 308 | 3-M14 | 100 | 2650 |
| YSLR-M290x4 | 340 | 36 | 24 | 11 | 315 | 3-M14 | 100 | 2700 |
| YSLR-M300x4 | 350 | 36 | 24 | 11 | 325 | 3-M14 | 100 | 2800 |
