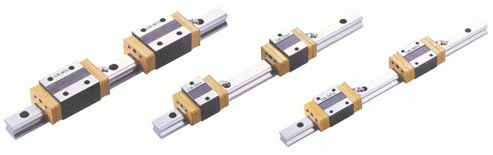

GR15TA-LSK四方型滑块滑轨、GR15SA-LSK四方型滑块滑轨、GR20TA-LSK四方型滑块滑轨、GR20SA-LSK四方型滑块滑轨、GR25TA-LSK四方型滑块滑轨、GR25SA-LSK四方型滑块滑轨、GR30TA-LSK四方型滑块滑轨、GR30SA-LSK四方型滑块滑轨、GR35TA-LSK四方型滑块滑轨、GR35SA-LSK四方型滑块滑轨

发布时间：2025-10-23

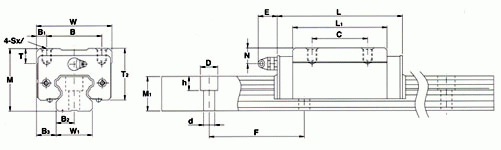

型号
Width
(W)
Length
(L)
Height
(M)
B
B1
L1
C
T
T2
SX/
N
E
润滑油接管
GR-15TA
34
67.5
24
26
4
39.5
26
6
19.5
M4×5
4
5.5
M4×0.7P
GR-15SA
34
50.5
24
26
4
22.5
-
6
19.5
M4×5
4
5.5
M4×0.7P
GR-20TA
42
76.5
28
32
5
46.5
32
7.5
22.5
M5×6
4
12
M6×1.0P
GR-20SA
42
57.5
28
32
5
27.5
-
7.5
22.5
M5×6
4
12
M6×1.0P
GR-25TA
48
89.0
33
35
6.5
59.0
35
8
26
M6×8
4.5
12
M6×1.0P
GR-25SA
48
65.0
33
35
6.5
35.0
-
8
26
M6×8
4.5
12
M6×1.0P
GR-30TA
60
102.5
42
40
10
69.0
40
9
34
M8×10
7
12
M6×1.0P
GR-30SA
60
73.5
42
40
10
40.5
-
9
34
M8×10
7
12
M6×1.0P
GR-35TA
70
114.0
48
50
10
79.0
50
13
39
M8×12
8
12
M6×1.0P
GR-35SA
70
80.5
48
50
10
45.5
-
13
39
M8×12
8
12
M6×1.0P














LSK滑轨的尺寸 LSK Rail Dimensions /mm
Width
(W1)
Height
(M1)
Pitch
(F)
B2
B3
dxDxh
C
kgf
Co
kgf
MA
kgf-M
MB
kgf-M
MC
kgf-M
Block
kgf
Rail
kgf
15
15
60
7.5
9.5
4.5×7.5×5.5
850
1380
7.3
7.3
10.1
0.18
1.7
15
15
60
7.5
9.5
4.5×7.5×5.5
550
1132
2.04
2.04
4.08
0.11
1.7
20
18
60
10
11
6×9.5×8.5
1410
2430
15.9
15.9
23.7
0.25
2.5
20
18
60
10
11
6×9.5×8.5
730
1468
3.06
2.04
7.14
0.23
2.5
23
22
60
11.5
12.5
7×11×9
2030
3510
27.5
27.5
40.0
0.54
3.6
23
22
60
11.5
12.5
7×11×9
1190
2295
5.1
4.08
12.24
0.45
3.6
28
26
80
14
16
9×14×12
2860
4770
43.8
43.8
65.8
0.9
5.1
28
26
80
14
16
9×14×12
1754
3315
9.18
8.16
21.42
0.7
5.1
34
29
80
17
18
9×14×12
3800
6230
127.6
127.6
213.2
2.6
6.9
34
29
80
17
18
9×14×12
2428
4498
14.28
12.24
34.68
1.2
6.9
