FR15TA-LSK法兰型滑块滑轨、FR15SA-LSK法兰型滑块滑轨、FR20TA-LSK法兰型滑块滑轨、FR20SA-LSK法兰型滑块滑轨、FR25TA-LSK法兰型滑块滑轨、FR25SA-LSK法兰型滑块滑轨、FR30TA-LSK法兰型滑块滑轨、FR30SA-LSK法兰型滑块滑轨、FR35TA-LSK法兰型滑块滑轨、FR35SA-LSK法兰型滑块滑轨

发布时间：2026-09-27

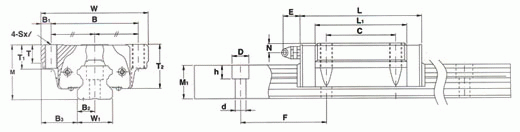

型号
Width
(W)
Length
(L)
Height
(M)
B
B1
L1
C
T
T1
T2
Sxl
N
E
润滑油接管
FR-15TA
52
67.5
24
41
5.5
39.5
26
7
11
19.5
M5x11
4
5.5
M4×0.7P
FR-15SA
52
50.5
24
41
5.5
22.5
-
7
11
19.5
M5x11
4
5.5
M4×0.7P
FR-20TA
59
76.5
28
49
5
46.5
32
8
10
22.5
M6x10
4
12
M6×1.0P
FR-20SA
59
57.5
28
49
5
27.5
-
8
10
22.5
M6x10
4
12
M6×1.0P
FR-25TA
73
89.0
33
60
6.5
59.0
35
10
16
26
M8x16
4.5
12
M6×1.0P
FR-25SA
73
65.0
33
60
6.5
35.0
-
10
16
26
M8x16
4.5
12
M6×1.0P
FR-30TA
90
102.5
42
72
9
69.0
40
12
18
34.0
M10x18
7
12
M6×1.0P
FR-30SA
90
73.5
42
72
9
40.5
-
12
18
34.0
M10x18
7
12
M6×1.0P
FR-35TA
100
114.0
48
82
9
79.0
50
13
21
39.0
M10x21
8
12
M6×1.0P
FR-35SA
100
80.5
48
82
9
45.5
-
13
21
39.0
M10x21
8
12
M6×1.0P
LSK滑轨的尺寸 LSK Rail Dimensions /mm
Width
(W1)
Height
(M1)
Pitch
(F)
B2
B3
dxDxh
C
kgf
Co
kgf
MA
kgf-M
MB
kgf-M
MC
kgf-M
Block
kgf
Rail
kgf
15
15
60
7.5
18.5
4.5×7.5×5.5
850
1380
7.3
7.3
10.1
0.2
1.7
15
15
60
7.5
18.5
4.5×7.5×5.5
550
1132
2.04
2.04
4.08
0.15
1.7
20
18
60
10
19.5
6×9.5×8.5
1410
2430
15.9
15.9
23.7
0.35
2.5
20
18
60
10
19.5
6×9.5×8.5
730
1468
3.06
2.04
7.14
0.42
2.5
23
22
60
11.5
25
7×11×9
2030
3510
27.3
27.5
40.0
0.59
3.6
23
22
60
11.5
25
7×11×9
1190
2295
5.1
4.08
12.24
0.71
3.6
28
26
80
14
31
9×14×12
2860
4770
43.8
43.8
65.8
1.1
5.1
28
26
80
14
31
9×14×12
1754
3315
9.18
8.16
21.42
1.3
5.1
34
29
80
17
33
9×14×12
3800
6230
40.8
34.68
61.2
1.6
6.9
34
29
80
17
33
9×14×12
2428
4498
14.28
12.24
34.68
2.0
6.9
