HJG-K3040A滚动导轨块、HJG-K3050A滚动导轨块、HJG-K4560A滚动导轨块、HJG-K5570A滚动导轨块、HJG-K6890A滚动导轨块、HJG-K82125A滚动导轨块、HJG-K33050滚动导轨块、HJG-K3662滚动导轨块

发布时间：2025-10-23

HJG-K3040A滚动导轨、HJG-K3050A滚动导轨、HJG-K4560A滚动导轨、HJG-K5570A滚动导轨、HJG-K6890A滚动导轨、HJG-K82125A滚动导轨、HJG-K33050滚动导轨、HJG-K3662滚动导轨、HJG-K4575滚动导轨、HJG-K5585滚动导轨、HJG-K68105滚动导轨、HJG-K82145滚动导轨、HJG-K2560B滚动导轨、HJG-K2670B滚动导轨、HJG-K2764B滚动导轨、HJG-K3070B滚动导轨、HJG-K3896B滚动导轨、HJG-K40100B滚动导轨、HJG-K40125B滚动导轨、HJG-K52140B滚动导轨、HJG-K52203B滚动导轨、HJG-K76198B滚动导轨、HJG-K124333B滚动导轨、HJG-K3475C滚动导轨、HJG-K47104C滚动导轨、HJG-K64140C滚动导轨、

HJG-K3040A滚动导轨块、HJG-K3050A滚动导轨块、HJG-K4560A滚动导轨块、HJG-K5570A滚动导轨块、HJG-K6890A滚动导轨块、HJG-K82125A滚动导轨块、HJG-K33050滚动导轨块、HJG-K3662滚动导轨块、HJG-K4575滚动导轨块、HJG-K5585滚动导轨块、HJG-K68105滚动导轨块、HJG-K82145滚动导轨块、HJG-K2560B滚动导轨块、HJG-K2670B滚动导轨块、HJG-K2764B滚动导轨块、HJG-K3070B滚动导轨块、HJG-K3896B滚动导轨块、HJG-K40100B滚动导轨块、HJG-K40125B滚动导轨块、HJG-K52140B滚动导轨块、HJG-K52203B滚动导轨块、HJG-K76198B滚动导轨块、HJG-K124333B滚动导轨块、HJG-K3475C滚动导轨块、HJG-K47104C滚动导轨块、HJG-K64140C滚动导轨块、

HJG-K3040A导轨块、HJG-K3050A导轨块、HJG-K4560A导轨块、HJG-K5570A导轨块、HJG-K6890A导轨块、HJG-K82125A导轨块、HJG-K33050导轨块、HJG-K3662导轨块、HJG-K4575导轨块、HJG-K5585导轨块、HJG-K68105导轨块、HJG-K82145导轨块、HJG-K2560B导轨块、HJG-K2670B导轨块、HJG-K2764B导轨块、HJG-K3070B导轨块、HJG-K3896B导轨块、HJG-K40100B导轨块、HJG-K40125B导轨块、HJG-K52140B导轨块、HJG-K52203B导轨块、HJG-K76198B导轨块、HJG-K124333B导轨块、HJG-K3475C导轨块、HJG-K47104C导轨块、HJG-K64140C导轨块、

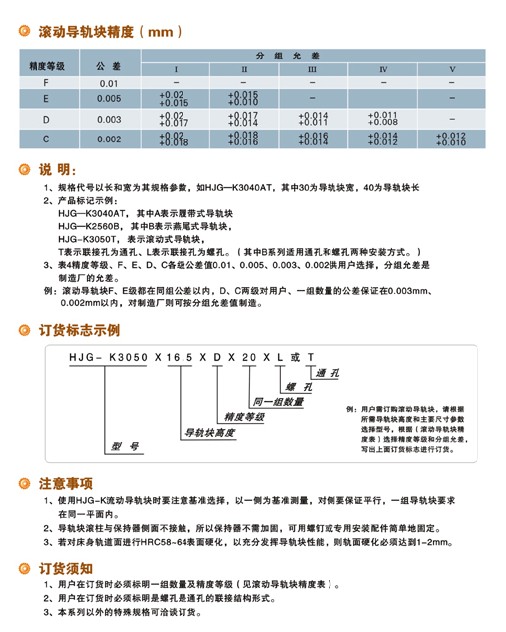

说明：
1、规格代号以长和宽为其规格参数，如HJG-K3040AT，其中30为导轨块宽，40为导轨块长。
2、产品标记示例：

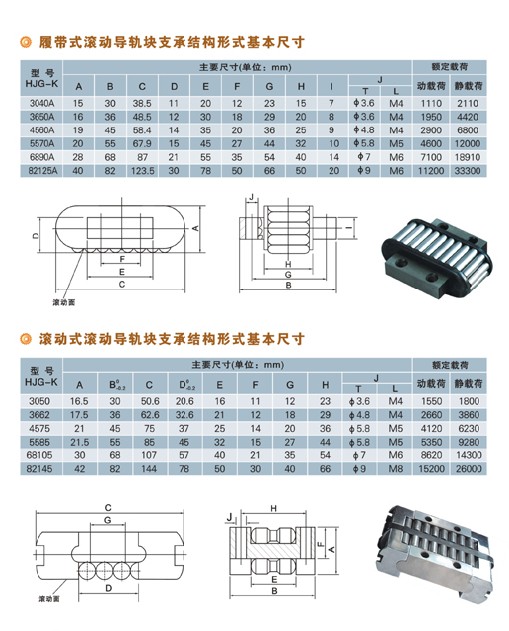

HJG-K3040AT，其中A表示履带式导轨块，

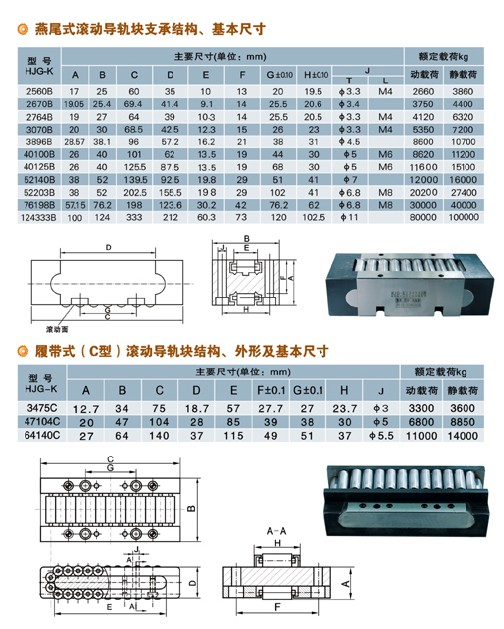

HJG-K2560BL，其中B表示燕尾式导轨块，
HJG-K3050T，表示滚动导轨块，
T表示联接孔为通孔、L表示联接孔为螺孔。

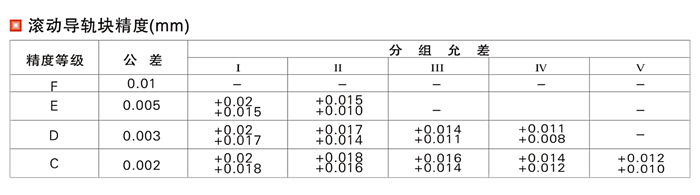

3、滚动导轨块精度表精度等级F、E、D、C各级公差值0.001、0.005、0.003、0.002供用户选择，分组允差是制造厂的允差。
例：滚动导轨块F、E级都在同组公差以内，D、C两级对用户、一组数量的公差保证在0.003MM、0.002MM以内，对制造厂则可按分组允差值制造

HJG-K特点及使用说明
1、滚动导轨是根据滚柱轴承基本原理设计的。具有承载能力大，动摩擦与静摩擦之差较小，对反复动作、起动、停止住复运动频率较高情况下可减少整机重量和传动机构以及动力费用。
2、采用滚动导轨块可获得较高的灵敏度和高性能的平面直线运动。在进行低速往复运动或微调时控制性能优越，移动轻便，没有爬行。
3、滚动导轨块摩擦系数小,滚柱在滚动时导向好,能自动定心,因而可以提高机械的跟随性和定位精度。
4、采用滚动导轨块，不受机床床身的长度限制，可按照HJG-K系列规定的载荷值选用规格和滚动导轨块数量。它的承载能力是传统滚珠轴承的10倍以上。
5、滚动导轨块采用GC15轴承钢，并经过严格热处理，所以在长期往复运动后，试验证明磨损少，可长期保持高精度。
6、HJG-K滚动导轨块润滑系统简单，润滑容易，机床维修方便。
7、HJG-K滚动导轨块，定位基准精度高，因此装配拆卸调整极基方便。
8、HJG-K系列滚动导轨块适合用于NC、CNC数控机床，也适用于重型机床,精密仪器的平面直线运动.
