HYEW30SA导轨滑块、HYEW30CA导轨滑块、HYEW15SA直线导轨滑块、HYEW15CA直线导轨滑块、HYEW20SA直线导轨滑块、HYEW20CA直线导轨滑块、HYEW25SA直线导轨滑块、HYEW25CA直线导轨滑块、HYEW30SA直线导轨滑块、HYEW30CA直线导轨滑块

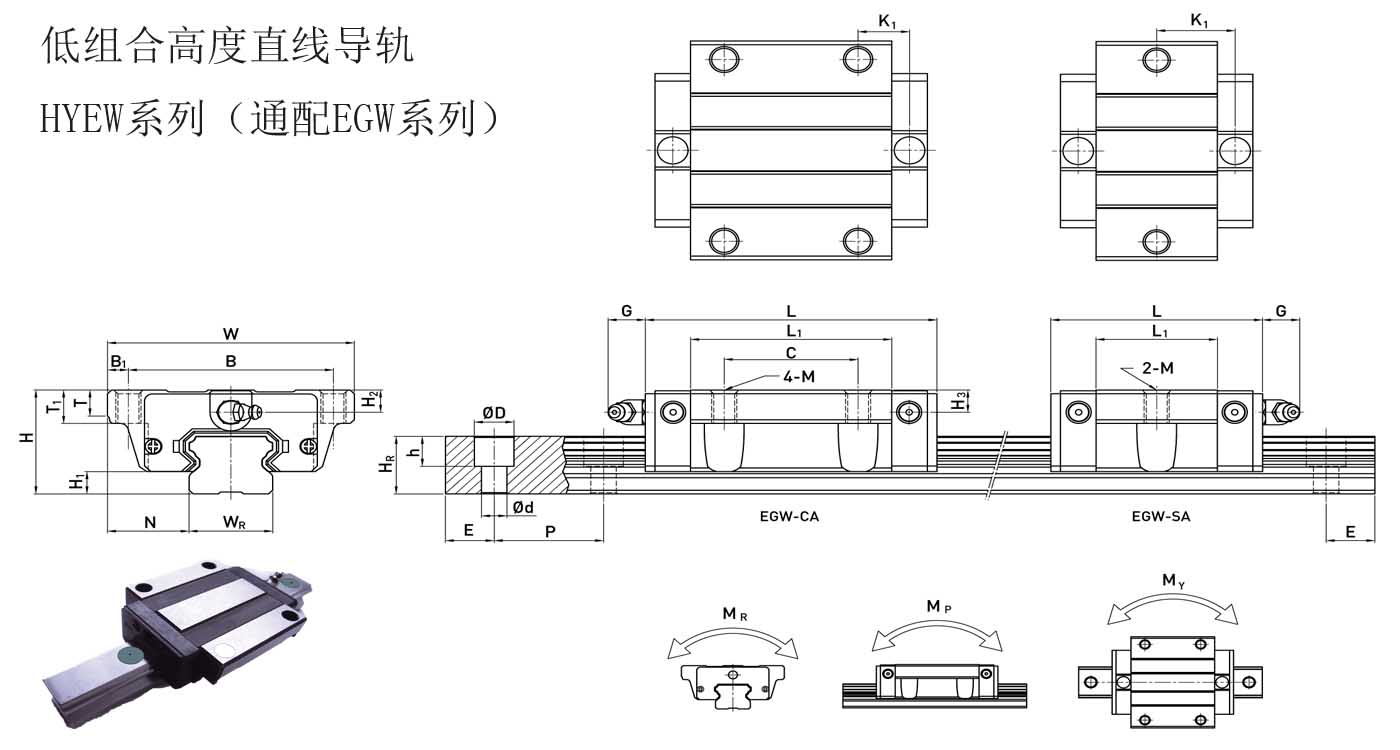

组件尺寸（mm）

滑块尺寸（mm）

滑块重量
Kg

H

H1

N

W

B

B1

C

L1

L

K1

G

M

T

T1

H2

H3

HYEW15SA

24

4.5

18.5

52

41

5.5

-

23.1

40.1

14.8

5.7

M5

5

7

5.5

6

0.12

HYEW15CA

26

39.8

56.8

10.15

0.21

HYEW20SA

28

6

19.5

59

49

5

-

29

50

18.75

12

M6

7

9

6

6

0.19

HYEW20CA

32

48.1

69.1

12.3

0.32

HYEW25SA

33

7

25

73

60

6.5

-

35.5

59.1

21.9

12

M8

7.5

10

8

8

0.35

HYEW25CA

35

59

82.6

16.15

0.59

HYEW30SA

42

10

31

90

72

9

-

41.5

69.5

26.75

12

M10

7

10

8

9

0.62

HYEW30CA

40

70.1

98.1

21.05

1.04

导轨尺寸(mm)

导轨的固定螺栓尺寸(mm)

基本动额定负荷C(KN)

基本静额定负荷C0(KN)

容许静力矩

导轨重量
Kg/m

WR

HR

D

h

d

P

E

MR
(KN-m)

MP
(KN-m)

MY
(KN-m)

HYEW15SA

15

12.5

6

4.5

3.5

60

20

M3*16

5.35

9.40

0.08

0.04

0.04

1.25

HYEW15CA

7.83

16.19

0.13

0.10

0.10

HYEW20SA

20

15.5

9.5

8.5

6

60

20

M5*16

7.23

12.74

0.13

0.06

0.06

2.08

HYEW20CA

10.31

21.13

0.22

0.16

0.16

HYEW25SA

23

18

11

9

7

60

20

M6*20

11.40

19.50

0.23

0.12

0.12

2.67

HYEW25CA

16.27

32.40

0.38

0.32

0.32

HYEW30SA

28

23

11

9

7

80

20

M6*25

16.42

28.10

0.40

0.21

0.21

4.35

HYEW30CA

23.70

47.46

0.68

0.55

0.55
