HYW45CA导轨滑块、HYW45HA导轨滑块、HYW55CA导轨滑块、HYW55HA导轨滑块、HYW15CA直线导轨滑块、HYW20CA直线导轨滑块、HYW20HA直线导轨滑块、HYW25CA直线导轨滑块、HYW25HA直线导轨滑块、HYW30CA直线导轨滑块、HYW30HA直线导轨滑块、HYW35CA直线导轨滑块、HYW35HA直线导轨滑块、HYW45CA直线导轨滑块、HYW45HA直线导轨滑块、HYW55CA直线导轨滑块、HYW55HA直线导轨滑块
发布时间：2026-05-07

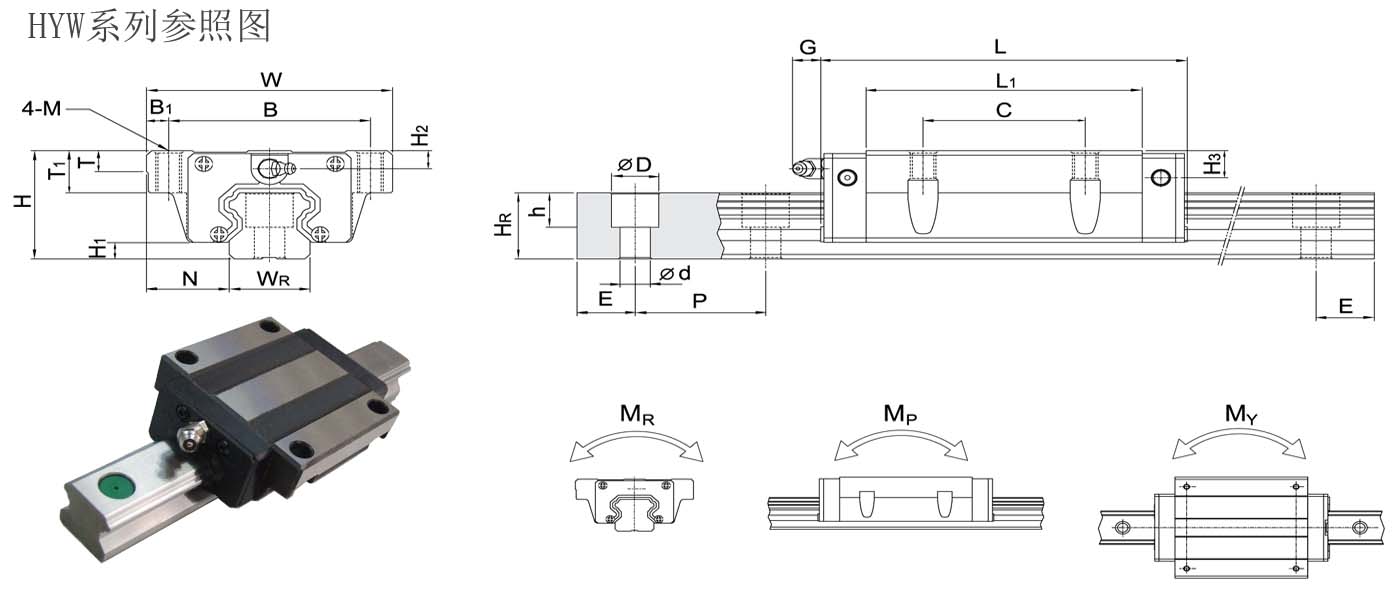

导轨型号 |
组件尺寸（mm） |
滑块尺寸（mm） |
滑块重量 | ||||||||||||||
|
H |
H1 |
N |
W |
B |
B1 |
C |
L1 |
L |
K1 |
G |
M |
T |
T1 |
H2 |
H3 | ||
|
HYW15CA |
24 |
4.3 |
16 |
47 |
38 |
4.5 |
30 |
39.4 |
61.4 |
8 |
5.3 |
M5 |
6 |
8.9 |
3.95 |
3.7 |
0.17 |
|
HYW20CA |
30 |
4.6 |
21.5 |
63 |
53 |
5 |
40 |
50.5 |
77.5 |
10.25 |
12 |
M6 |
8 |
10 |
6 |
7 |
0.40 |
|
HYW20HA |
65.2 |
92.2 |
17.6 |
0.52 | |||||||||||||
|
HYW25CA |
36 |
5.5 |
23.5 |
70 |
57 |
6.5 |
45 |
58 |
84 |
11.8 |
12 |
M8 |
8 |
14 |
6 |
9 |
0.59 |
|
HYW25HA |
78.6 |
104.6 |
22.1 |
0.80 | |||||||||||||
|
HYW30CA |
42 |
6 |
31 |
90 |
72 |
9 |
52 |
70 |
97.4 |
14.25 |
12 |
M10 |
8.5 |
16 |
6.5 |
10.8 |
1.09 |
|
HYW30HA |
93 |
120.4 |
25.75 |
1.44 | |||||||||||||
|
HYW35CA |
48 |
7.5 |
33 |
100 |
82 |
9 |
62 |
80 |
112.4 |
14.6 |
12 |
M10 |
10.1 |
18 |
9 |
12.6 |
1.56 |
|
HYW35HA |
105.8 |
138.2 |
27.5 |
2.06 | |||||||||||||
|
HYW45CA |
60 |
9.5 |
37.5 |
120 |
100 |
10 |
80 |
97 |
139.4 |
13 |
12.9 |
M12 |
15.1 |
22 |
8.5 |
20.5 |
2.79 |
|
HYW45HA |
128.8 |
171.2 |
28.9 |
3.69 | |||||||||||||
|
HYW55CA |
70 |
13 |
43.5 |
140 |
116 |
12 |
95 |
117.7 |
166.7 |
17.35 |
12.9 |
M14 |
17.5 |
26.5 |
12 |
19 |
4.52 |
|
HYW55HA |
155.8 |
204.8 |
36.4 |
5.96 | |||||||||||||
导轨型号 |
导轨尺寸(mm) |
导轨的固定螺栓尺寸(mm) |
基本动额定负荷C(KN) |
基本静额定负荷C0(KN) |
容许静力矩 |
导轨重量 | ||||||||
|
WR |
HR |
D |
h |
d |
P |
E |
MR |
MP |
MY | |||||
|
HYW15CA |
15 |
15 |
7.5 |
5.3 |
4.5 |
60 |
20 |
M4*16 |
11.38 |
25.31 |
0.17 |
0.15 |
0.15 |
1.45 |
|
HYW20CA |
20 |
17.5 |
9.5 |
8.5 |
6 |
60 |
20 |
M5*16 |
17.75 |
37.84 |
0.38 |
0.27 |
0.27 |
2.21 |
|
HYW20HA |
21.18 |
48.84 |
0.48 |
0.47 |
0.47 | |||||||||
|
HYW25CA |
23 |
22 |
11 |
9 |
7 |
60 |
20 |
M6*20 |
26.48 |
56.19 |
0.64 |
0.51 |
0.51 |
3.21 |
|
HYW25HA |
32.75 |
76.00 |
0.87 |
0.88 |
0.88 | |||||||||
|
HYW30CA |
28 |
26 |
14 |
12 |
9 |
80 |
20 |
M8*25 |
38.74 |
83.06 |
1.06 |
0.85 |
0.85 |
4.47 |
|
HYW30HA |
47.27 |
110.13 |
1.40 |
1.47 |
1.47 | |||||||||
|
HYW35CA |
34 |
29 |
14 |
12 |
9 |
80 |
20 |
M8*25 |
49.52 |
102.87 |
1.73 |
1.20 |
1.20 |
6.30 |
|
HYW35HA |
60.21 |
136.31 |
2.29 |
2.08 |
2.08 | |||||||||
|
HYW45CA |
45 |
38 |
20 |
17 |
14 |
105 |
22.5 |
M12*35 |
77.57 |
155.93 |
3.01 |
2.35 |
2.35 |
10.41 |
|
HYW45HA |
94.54 |
207.12 |
4.00 |
4.07 |
4.07 | |||||||||
|
HYW55CA |
53 |
44 |
23 |
20 |
16 |
120 |
30 |
M14*45 |
114.44 |
227.81 |
5.66 |
4.06 |
4.06 |
15.08 |
|
HYW55HA |
139.35 |
301.26 |
7.49 |
7.01 |
7.01 | |||||||||
