HYH15CA滑块、HYH20CA滑块、HYH20HA滑块、HYH25CA滑块、HYH25HA滑块、HYH30CA滑块、HYH30HA滑块、HYH35CA滑块、HYH35HA滑块、HYH45CA滑块、HYH45HA滑块、HYH55CA滑块、HYH55HA滑块、HYH15CA导轨滑块、HYH20CA导轨滑块、HYH20HA导轨滑块、HYH25CA导轨滑块、HYH25HA导轨滑块、HYH30CA导轨滑块、HYH30HA导轨滑块、HYH35CA导轨滑块、HYH35HA导轨滑块、HYH45CA导轨滑块
发布时间：2025-05-05
|

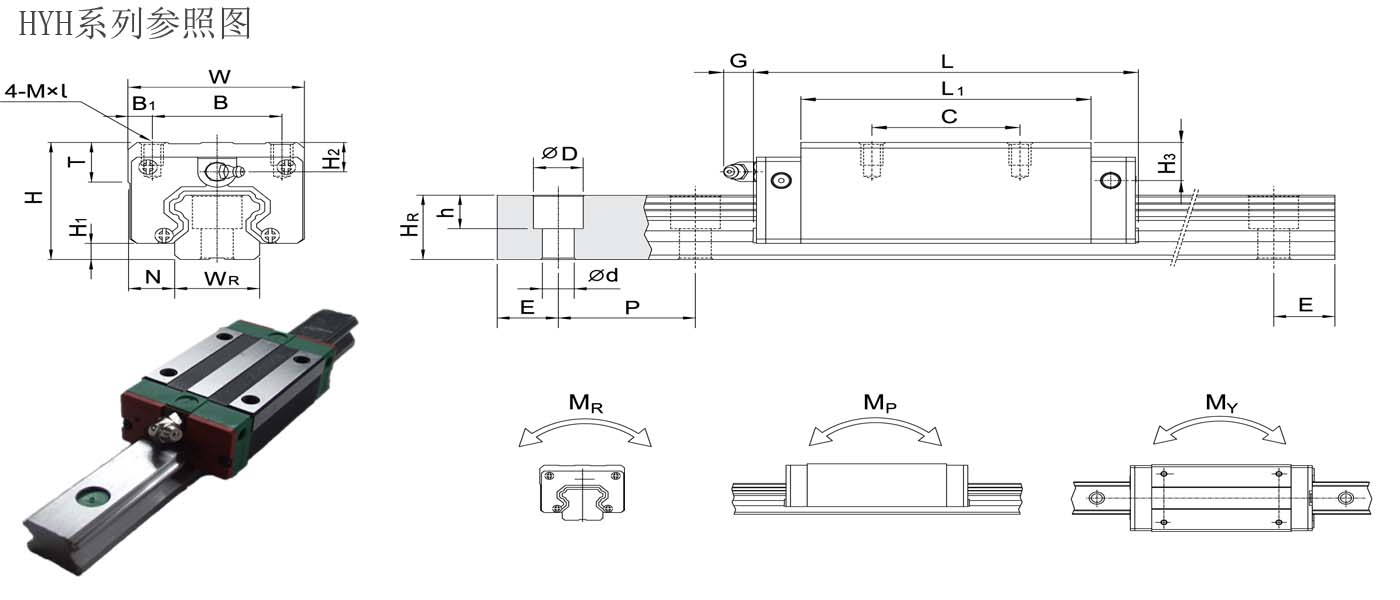

导轨型号 |
组件尺寸（mm） |
滑块尺寸（mm） |
滑块重量 | |||||||||||||
|
H |
H1 |
N |
W |
B |
B1 |
C |
L1 |
L |
K1 |
G |
M*l |
T |
H2 |
H3 | ||
|
HYH15CA |
28 |
4.3 |
9.5 |
34 |
26 |
4 |
26 |
39.4 |
61.4 |
10 |
5.3 |
M4*5 |
6 |
7.95 |
7.7 |
0.18 |
|
HYH20CA |
30 |
4.6 |
12 |
44 |
32 |
6 |
36 |
50.5 |
77.5 |
12.25 |
12 |
M5*6 |
8 |
6 |
7 |
0.30 |
|
HYH20HA |
50 |
65.2 |
92.2 |
12.6 |
0.39 | |||||||||||
|
HYH25CA |
40 |
5.5 |
12.5 |
48 |
35 |
6.5 |
35 |
58 |
84 |
16.8 |
12 |
M6*8 |
8 |
10 |
13 |
0.51 |
|
HYH25HA |
50 |
78.6 |
104.6 |
19.6 |
0.69 | |||||||||||
|
HYH30CA |
45 |
6 |
16 |
60 |
40 |
10 |
40 |
70 |
97.4 |
20.25 |
12 |
M8*10 |
8.5 |
9.5 |
13.8 |
0.88 |
|
HYH30HA |
60 |
93 |
120.4 |
21.75 |
1.16 | |||||||||||
|
HYH35CA |
55 |
7.5 |
18 |
70 |
50 |
10 |
50 |
80 |
112.4 |
20.6 |
12 |
M8*12 |
10.2 |
16 |
19.6 |
1.45 |
|
HYH35HA |
72 |
105.8 |
138.2 |
22.5 |
1.92 | |||||||||||
|
HYH45CA |
70 |
9.5 |
20.5 |
86 |
60 |
13 |
60 |
97 |
139.4 |
23 |
12.9 |
M10*17 |
16 |
18.5 |
30.5 |
2.73 |
|
HYH45HA |
80 |
128.8 |
171.2 |
28.9 |
3.61 | |||||||||||
|
HYH55CA |
80 |
13 |
23.5 |
100 |
75 |
12.5 |
75 |
117.7 |
166.7 |
27.35 |
12.9 |
M12*18 |
17.5 |
22 |
29 |
4.17 |
|
HYH55HA |
95 |
155.8 |
204.8 |
36.4 |
5.49 | |||||||||||
导轨型号 |
导轨尺寸(mm) |
导轨的固定螺栓尺寸(mm) |
基本动额定负荷C(KN) |
基本静额定负荷C0(KN) |
容许静力矩 |
导轨重量 | ||||||||
|
WR |
HR |
D |
h |
d |
P |
E |
MR |
MP |
MY | |||||
|
HYH15CA |
15 |
15 |
7.5 |
5.3 |
4.5 |
60 |
20 |
M4*16 |
11.38 |
25.31 |
0.17 |
0.15 |
0.15 |
1.45 |
|
HYH20CA |
20 |
17.5 |
9.5 |
8.5 |
6 |
60 |
20 |
M5*16 |
17.75 |
37.84 |
0.38 |
0.27 |
0.27 |
2.21 |
|
HYH20HA |
21.18 |
48.84 |
0.48 |
0.47 |
0.47 | |||||||||
|
HYH25CA |
23 |
22 |
11 |
9 |
7 |
60 |
20 |
M6*20 |
26.48 |
56.19 |
0.64 |
0.51 |
0.51 |
3.21 |
|
HYH25HA |
32.75 |
76.00 |
0.87 |
0.88 |
0.88 | |||||||||
|
HYH30CA |
28 |
26 |
14 |
12 |
9 |
80 |
20 |
M8*25 |
38.74 |
83.06 |
1.06 |
0.85 |
0.85 |
4.47 |
|
HYH30HA |
47.27 |
110.13 |
1.40 |
1.47 |
1.47 | |||||||||
|
HYH35CA |
34 |
29 |
14 |
12 |
9 |
80 |
20 |
M8*25 |
49.52 |
102.87 |
1.73 |
1.20 |
1.20 |
6.30 |
|
HYH35HA |
60.21 |
136.31 |
2.29 |
2.08 |
2.08 | |||||||||
|
HYH45CA |
45 |
38 |
20 |
17 |
14 |
105 |
22.5 |
M12*35 |
77.57 |
155.93 |
3.01 |
2.35 |
2.35 |
10.41 |
|
HYH45HA |
94.54 |
207.12 |
4.00 |
4.07 |
4.07 | |||||||||
|
HYH55CA |
53 |
44 |
23 |
20 |
16 |
120 |
30 |
M14*45 |
114.44 |
227.81 |
5.66 |
4.06 |
4.06 |
15.08 |
|
HYH55HA |
139.35 |
301.26 |
7.49 |
7.01 |
7.01 | |||||||||
