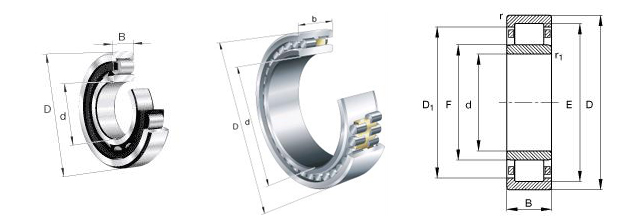

Bearing Number Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg)

PYC d D B rs min Cr Cor Grease Oil (Approx.)

NN3005 25 47 16 0.6 25.8 30 14,000 17,000 0.124

NN3005K 25 47 16 0.6 25.8 30 14,000 17,000 0.121

NN3006 30 55 19 1 31 37 12,000 15,000 0.199

NN3006K 30 55 19 1 31 37 12,000 15,000 0.193

NN3007 35 62 20 1 38 47.5 11,000 13,000 0.242

NN3007K 35 62 20 1 38 47.5 11,000 13,000 0.235

NN3008 40 68 21 1 43.5 55.5 9,700 11,000 0.312

NN3008K 40 68 21 1 43.5 55.5 9,700 11,000 0.303

NN3009 45 75 23 1 52 68.5 8,800 10,000 0.405

NN3009K 45 75 23 1 52 68.5 8,800 10,000 0.393

NN3010 50 80 23 1 53 72.5 8,000 9,400 0.433

NN3010K 50 80 23 1 53 72.5 8,000 9,400 0.419

NN3011 55 90 26 1.1 69.5 96.5 7,300 8,600 0.651

NN3011K 55 90 26 1.1 69.5 96.5 7,300 8,600 0.631

NN3012 60 95 26 1.1 71 102 6,700 7,900 0.704

NN3012K 60 95 26 1.1 71 102 6,700 7,900 0.683

NN3013 65 100 26 1.1 75 111 6,200 7,300 0.758

NN3013K 65 100 26 1.1 75 111 6,200 7,300 0.735

NN3014 70 110 30 1.1 94.5 143 5,800 6,800 1.04

NN3014K 70 110 30 1.1 94.5 143 5,800 6,800 1.01

NN3015 75 115 30 1.1 96.5 149 5,400 6,300 1.14

NN3015K 75 115 30 1.1 96.5 149 5,400 6,300 1.11

NN3016 80 125 34 1.1 116 179 5,100 5,900 1.52

NN3016K 80 125 34 1.1 116 179 5,100 5,900 1.47

NN3017 85 130 34 1.1 122 194 4,800 5,600 1.61

NN3017K 85 130 34 1.1 122 194 4,800 5,600 1.56

NN3018 90 140 37 1.5 143 228 4,500 5,300 2.07

NN3018K 90 140 37 1.5 143 228 4,500 5,300 2.01

NN3019 95 145 37 1.5 146 238 4,300 5,000 2.17

NN3019K 95 145 37 1.5 146 238 4,300 5,000 2.1

NN3020 100 150 37 1.5 153 256 4,000 4,800 2.26

NN3020K 100 150 37 1.5 153 256 4,000 4,800 2.19

NN3021 105 160 41 2 198 320 3,800 4,500 2.89

NN3021K 105 160 41 2 198 320 3,800 4,500 2.8

NN3022 110 170 45 2 229 375 3,600 4,300 3.69

NN3022K 110 170 45 2 229 375 　　　
