搜轴承 -- 黑板报 -- B44英制轴承、B57英制轴承、B68英制轴承、B78英制轴�...

B44英制轴承、B57英制轴承、B68英制轴承、B78英制轴承、B88英制轴承、B810英制轴承、B108英制轴承、B1012英制轴承、B128英制轴承、B1612英制轴承、B1616英制轴承、B1812英制轴承、B1816英制轴承、B2012英制轴承、B2016英制轴承、B2020英制轴承、B2220英制轴承、B2416英制轴承、B2816英制轴承

发布时间：2026-01-31

冲压外圈满针轴承

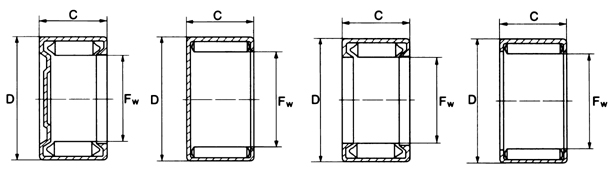

轴承型号		外形尺寸
		Fw ×D × C
	B44	6.35×11.112×6.35
	B57	7.938×12.7×11.11
S68	B68	9.525×14.288×12.7
	B78	11.112×15.875×12.7
	B88	12.7×17.462×12.7
	B810	12.7×17.462×15.88
	B108	15.875×20.638×12.7
	B1012	15.875×20.638×19.05
	B128	19.05×25.4×12.7
	B1612	25.4×31.75×19.05
	B1616	25.4×31.75×25.4
	B1812	28.575×34.925×19.05
	B1816	28.575×34.925×25.4
	B2012	31.75×38.1×19.05
	B2016	31.75×38.1×25.4
S2020	B2020	31.75×38.1×31.75
	B2220	34.925×41.275×31.75
	B2416	38.1×47.625×25.4
	B2420	38.1×47.625×31.75
	B2816	44.45×53.975×25.4
	B2824	44.45×53.975×38.1
	B3012	47.625×57.15×19.05
S3016	B3016	47.625×57.15×25.4
	B3216	50.8×60.325×25.4
