搜轴承 -- 黑板报 -- UCPA206-12外球面轴承带座、UCPA207-20外球面轴承带座、...

UCPA206-12外球面轴承带座、UCPA207-20外球面轴承带座、UCPA207-21外球面轴承带座、UCPA207-21外球面轴承带座、UCPA207-22外球面轴承带座、UCPA207外球面轴承带座、UCPA207外球面轴承带座、UCPA207-23外球面轴承带座、UCPA208-24外球面轴承带座、UCPA208-25外球面轴承带座、UCPA208外球面轴承带座、UCPA209-26外球面轴承带座

发布时间：2025-05-05

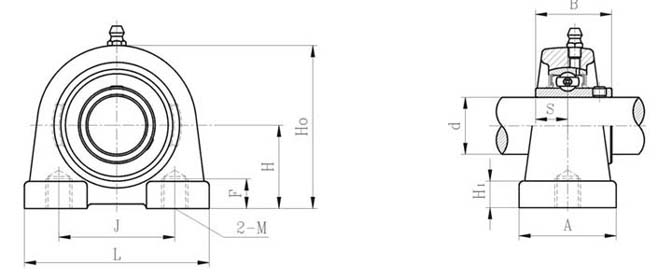

Unit No.	Shaft Dia.		Dimensions(mm)										Bearing No.	Housing No.	Mass(kg)
	d		H	L	J	A	H0	H1	S	B	F	M
	(in.)	(mm)
UCPA202		15	30.2	76	52	40	62	11	12.7	31	13	M10×1.5	UC202	PA204	0.63
UCPA202-10	5/8		30.2	76	52	40	62	11	12.7	31	13	M10×1.5	UC202-10	PA204	0.63
UCPA203		17	30.2	76	52	40	62	11	12.7	31	13	M10×1.5	UC203	PA204	0.63
UCPA203-11	11/16		30.2	76	52	40	62	11	12.7	31	13	M10×1.5	UC203-11	PA204	0.63
UCPA204-12	3/4		30.2	76	52	40	62	11	12.7	31	13	M10×1.5	UC204-12	PA204	0.63
UCPA204		20	30.2	76	52	40	62	11	12.7	31	13	M10×1.5	UC204	PA204	0.63
UCPA205-14	7/8		36.5	84	56	38	72	12	14.3	34	15	M10×1.5	UC205-14	PA205	0.8
UCPA205-15	15/16		36.5	84	56	38	72	12	14.3	34	15	M10×1.5	UC205-15	PA205	0.8
UCPA205		25	36.5	84	56	38	72	12	14.3	34	15	M10×1.5	UC205	PA205	0.8
UCPA205-16	1		36.5	84	56	38	72	12	14.	334	15	M10×1.5	UC205-16	PA205	0.8
UCPA206-18	1-1/8		42.9	94	66	48	84	13	15.9	38.1	18	M14×2	UC206-18	PA206	1.2
UCPA206		30	42.9	94	66	48	84	13	15.9	38.1	18	M14×2	UC206	PA206	1.2
UCPA206-19	1-3/16		42.9	94	66	48	84	13	15.9	38.1	18	M14×2	UC206-19	PA206	1.2
UCPA206-12	1-1/4		42.9	94	66	48	84	13	15.9	38.1	18	M14×2	UC206-20	PA206	1.2
UCPA207-20	1-1/4		47.6	110	80	48	95	13	17.5	42.9	20	M14×2	UC207-20	PA207	1.7
UCPA207-21	1-5/16		47.6	110	80	48	95	13	17.5	42.9	20	M14×2	UC207-21	PA207	1.7
UCPA207-21	1-5/16		47.6	110	80	48	95	13	17.5	42.9	20	M14×2	UC207-21	PA207	1.7
UCPA207-22	1-3/8		47.6	110	80	48	95	13	17.5	42.9	20	M14×2	UC207-22	PA207	1.7
UCPA207		35	47.6	110	80	48	95	13	17.5	42.9	20	M14×2	UC207	PA207	1.7
UCPA207		35	47.6	110	80	48	95	13	17.5	42.9	20	M14×2	UC207	PA207	1.7
UCPA207-23	1-7/16		47.6	110	80	48	95	13	17.5	42.9	20	M14×2	UC207-23	PA207	1.7
UCPA208-24	1-1/12		49.2	116	84	54	100	13	19	49.2	20	M14×2	UC208-24	PA208	2.0
UCPA208-25	1-9/16		49.2	116	84	54	100	13	19	49.2	20	M14×2	UC209-25	PA208	2.0
UCPA208		40	49.2	116	84	54	100	13	19	49.2	20	M14×2	UC208	PA208	2.0
UCPA209-26	1-5/8		54.2	120	90	60	108	13	19	49.2	25	M14×2	UC209-26	PA209	2.2
UCPA209-26	1-5/8		54.2	120	90	60	108	13	19	49.2	25	M14×2	UC209-26	PA209	2.2
UCPA209-27	1-11/16		54.2	120	90	60	108	13	19	49.2	25	M14×2	UC209-27	PA209	2.2
UCPA209-28	1-3/4		54.2	120	90	60	108	13	19	49.2	25	M14×2	UC209-28	PA209	2.2
UCPA209		45	54.2	120	90	60	108	13	19	49.2	25	M14×2	UC209	PA209	2.2
UCPA210-30	1-7/8		57.2	130	94	60	116	14	19	51.6	25	M16×2	UC210-30	PA210	2.8
UCPA210-31	1-15/16		57.2	130	94	60	116	14	19	51.6	25	M16×2	UC210-31	PA210	2.8
UCPA210		50	57.2	130	94	60	116	14	19	51.6	25	M16×2	UC210	PA210	2.8
UCPA210-32	2		57.2	130	94	60	116	14	19	51.6	25	M16×2	UC210-32	PA211	2.8
UCPA211-32	2		63.5	140	104	66	125	14	22.2	55.6	25	M16×2	UC211-32	PA211	3.0
UCPA211-34	2-1/8		63.5	140	104	66	125	14	22.2	55.6	25	M16×2	UC211-34	PA211	3.0
UCPA211		55	63.5	140	104	66	125	14	22.2	55.6	25	M16×2	UC211	PA211	3.0
UCPA211-35	2-3/16		63.5	140	104	66	125	14	22.2	55.6	25	M16×2	UC211-35	PA211	3.0
UCPA211-35	2-3/16		63.5	140	104	66	125	14	22.2	55.6	25	M16×2	UC211-35	PA211	3.0
UCPA212-36	2-1/4		69.9	150	114	68	138	15	25.4	65.1	25	M16×2	UC212-36	PA212	4.24
UCPA212		60	69.9	150	114	68	138	15	25.4	65.1	25	M16×2	UC212	PA212	4.24
UCPA212-38	2-3/8		69.9	150	114	68	138	15	25.4	65.1	25	M16×2	UC212-38	PA212	4.24
UCPA212-39	2-7/16		69.9	150	114	68	138	15	25.4	65.1	25	M16×2	UC212-39	PA212	4.24
UCPA213-40	2-1/2		76.2	160	124	70	150	15	25.4	65.1	25	M16×2	UC213-40	PA213
UCPA213-213		65	76.2	160	124	70	150	15	25.4	65.1	25	M16×2	UC213	PA213
UCPA201S		12	30.2	70	48	36	57	10	11.5	27.4	9	M8×1.25	UC201S	PA203
UCPA201-8S	1/2		30.2	70	48	36	57	10	11.5	27.4	9	M8×1.25	UC201-8S	PA203
UCPA202S	5/8		30.2	70	48	36	57	10	11.5	27.4	9	M8×1.25	UC202S	PA203
UCPA203S		17	30.2	70	48	36	57	10	11.5	27.4	9	M8×1.25	UC202-10S	PA203
UCPA203-11S		11/16	30.2	70	48	36	57	10	11.5	27.4	9	M8×1.25	UC203-11S	PA203
UCPA201		12	30.2	76	52	40	62	11	12.7	31	13	M10×1.5	UC201	PA204	0.63
