搜轴承 -- 黑板报 -- 150712200NF204偏心轴承、180712200NF204偏心轴承、200712200N...

150712200NF204偏心轴承、180712200NF204偏心轴承、200712200NF204偏心轴承、70712201NF204偏心轴承、80712201NF204偏心轴承

发布时间：2026-06-25

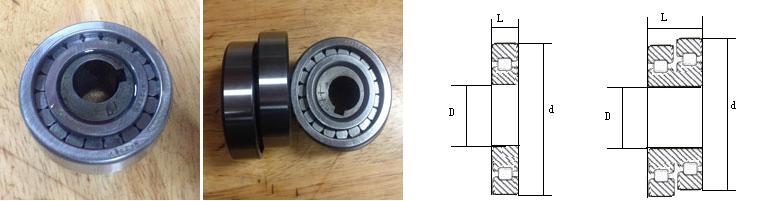

轴承型号	主要尺寸（mm）					额定负荷		极限转速（rpm）		键槽		重量
	D	d	L	r	e	静 N	动 N	脂润滑	油润滑	b	t1	kg
50712200NF204	10	47	14	0.7	0.5	13700	11600	14000	18000	3	1.3	0.059
70712200NF204	10	47	14	0.7	0.65	13700	11600	14000	18000	3	1.3	0.059
80712200NF204	10	47	14	0.7	0.75	13700	11600	14000	18000	3	1.3	0.059
100712200NF204	10	47	14	0.7	1	13700	11600	14000	18000	3	1.3	0.059
130712200NF204	10	47	14	0.7	1.25	13700	11600	14000	18000	3	1.3	0.059
150712200NF204	10	47	14	0.7	1.5	13700	11600	14000	18000	3	1.3	0.059
180712200NF204	10	47	14	0.7	1.75	13700	11600	14000	18000	3	1.3	0.059
200712200NF204	10	47	14	0.7	2	13700	11600	14000	18000	3	1.3	0.059
70712201NF204	12	47	14	0.7	0.65	15500	14500	12000	16000	4	1.8	0.09
80712201NF204	12	47	14	0.7	0.75	15500	14500	12000	16000	4	1.8	0.09
100712201NF204	12	47	14	0.7	1	15500	14500	12000	16000	4	1.8	0.09
130712201NF204	12	47	14	0.7	1.25	15500	14500	12000	16000	4	1.8	0.09
150712201NF204	12	47	14	0.7	1.5	15500	14500	12000	16000	4	1.8	0.09
200712201NF204	12	47	14	0.7	2	15500	14500	12000	16000	4	1.8	0.09
250712201NF204	12	47	14	0.7	2.5	15500	14500	12000	16000	4	1.8	0.09
50712202NF204	15	47	14	0.7	0.5	18000	17200	12000	16000	5	2.3	0.087
80712202NF204	15	47	14	0.7	0.75	18000	17200	12000	16000	5	2.3	0.087
100712202NF204	15	47	14	0.7	1	18000	17200	12000	16000	5	2.3	0.087
150712202NF204	15	47	14	0.7	1.5	18000	17200	12000	16000	5	2.3	0.087
180712202NF204	15	47	14	0.7	1.75	18000	17200	12000	16000	5	2.3	0.087
200712202NF204	15	47	14	0.7	2	18000	17200	12000	16000	5	2.3	0.087
250712202NF204	15	47	14	0.7	2.5	18000	17200	12000	16000	5	2.3	0.087
50752202NF204	15	47	28	0.7	0.5	31300	34500	12000	16000	5	2.3	0.17
70752202NF204	15	47	28	0.7	0.65	31300	34500	12000	16000	5	2.3	0.17
80752202NF204	15	47	28	0.7	0.75	31300	34500	12000	16000	5	2.3	0.17
100752202NF204	15	47	28	0.7	1	31300	34500	12000	16000	5	2.3	0.17
130752202NF204	15	47	28	0.7	1.25	31300	34500	12000	16000	5	2.3	0.17
150752202NF204	15	47	28	0.7	1.5	31300	34500	12000	16000	5	2.3	0.17
180752202NF204	15	47	28	0.7	1.75	31300	34500	12000	16000	5	2.3	0.17
200752202NF204	15	47	28	0.7	2	31300	34500	12000	16000	5	2.3	0.17
250752202NF204	15	47	28	0.7	2.5	31300	34500	12000	16000	5	2.3	0.17
300752202NF204	15	47	28	0.7	3	31300	34500	12000	16000	5	2.3	0.17
70752202NF205	15	45	30	0.7	0.65	40100	48000	11000	14000	5	2.3	0.25
80752202NF205	15	45	30	0.7	0.75	40100	48000	11000	14000	5	2.3	0.25
100752202NF205	15	45	30	0.7	1	40100	48000	11000	14000	5	2.3	0.25
130752202NF205	15	45	30	0.7	1.25	40100	48000	11000	14000	5	2.3	0.25
150752202NF205	15	45	30	0.7	1.5	40100	48000	11000	14000	5	2.3	0.25
200752202NF205	15	45	30	0.7	2	40100	48000	11000	14000	5	2.3	0.25
250752202NF205	15	45	30	0.7	2.5	40100	48000	11000	14000	5	2.3	0.25
300752202NF205	15	45	30	0.7	3	40100	48000	11000	14000	5	2.3	0.25
