搜轴承 -- 黑板报 -- GUD81万向节、GUD82万向节、GUD83万向节、GUD84万向节、...
GUD81万向节、GUD82万向节、GUD83万向节、GUD84万向节、GUD85万向节、GUD86万向节、GUD87万向节、GUD88万向节、GUD89万向节、GUKO-5万向节、GUKO-6万向节、GUKO-7万向节
发布时间：2025-05-04

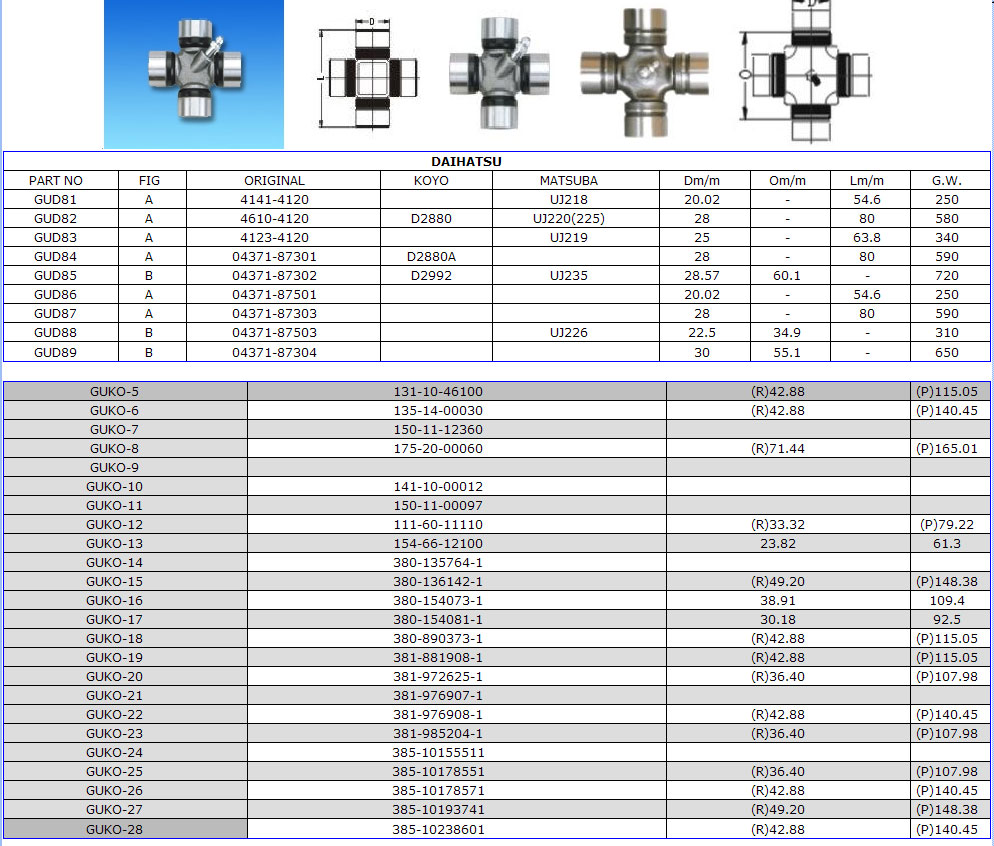

| DAIHATSU | ||||||||
| PART NO | FIG | ORIGINAL | KOYO | MATSUBA | Dm/m | Om/m | Lm/m | G.W. |
| GUD81 | A | 4141-4120 | UJ218 | 20.02 | - | 54.6 | 250 | |
| GUD82 | A | 4610-4120 | D2880 | UJ220(225) | 28 | - | 80 | 580 |
| GUD83 | A | 4123-4120 | UJ219 | 25 | - | 63.8 | 340 | |
| GUD84 | A | 04371-87301 | D2880A | 28 | - | 80 | 590 | |
| GUD85 | B | 04371-87302 | D2992 | UJ235 | 28.57 | 60.1 | - | 720 |
| GUD86 | A | 04371-87501 | 20.02 | - | 54.6 | 250 | ||
| GUD87 | A | 04371-87303 | 28 | - | 80 | 590 | ||
| GUD88 | B | 04371-87503 | UJ226 | 22.5 | 34.9 | - | 310 | |
| GUD89 | B | 04371-87304 | 30 | 55.1 | - | 650 | ||
| GUKO-5 | 131-10-46100 | (R)42.88 | (P)115.05 |
| GUKO-6 | 135-14-00030 | (R)42.88 | (P)140.45 |
| GUKO-7 | 150-11-12360 | ||
| GUKO-8 | 175-20-00060 | (R)71.44 | (P)165.01 |
| GUKO-9 | |||
| GUKO-10 | 141-10-00012 | ||
| GUKO-11 | 150-11-00097 | ||
| GUKO-12 | 111-60-11110 | (R)33.32 | (P)79.22 |
| GUKO-13 | 154-66-12100 | 23.82 | 61.3 |
| GUKO-14 | 380-135764-1 | ||
| GUKO-15 | 380-136142-1 | (R)49.20 | (P)148.38 |
| GUKO-16 | 380-154073-1 | 38.91 | 109.4 |
| GUKO-17 | 380-154081-1 | 30.18 | 92.5 |
| GUKO-18 | 380-890373-1 | (R)42.88 | (P)115.05 |
| GUKO-19 | 381-881908-1 | (R)42.88 | (P)115.05 |
| GUKO-20 | 381-972625-1 | (R)36.40 | (P)107.98 |
| GUKO-21 | 381-976907-1 | ||
| GUKO-22 | 381-976908-1 | (R)42.88 | (P)140.45 |
| GUKO-23 | 381-985204-1 | (R)36.40 | (P)107.98 |
| GUKO-24 | 385-10155511 | ||
| GUKO-25 | 385-10178551 | (R)36.40 | (P)107.98 |
| GUKO-26 | 385-10178571 | (R)42.88 | (P)140.45 |
| GUKO-27 | 385-10193741 | (R)49.20 | (P)148.38 |
| GUKO-28 | 385-10238601 | (R)42.88 | (P)140.45 |
