RSB8-2.5B1滚珠丝杠、RSB10-2.5B1滚珠丝杠、RSB10-4B1滚珠丝杠、RSB12-4B1滚珠丝杠、RSB16-5B1滚珠丝杠、RSB20-5C1滚珠丝杠、RSB25-5B2滚珠丝杠、RSB32-5B2滚珠丝杠、RSB32-10B2滚珠丝杠、RSB40-10B2滚珠丝杠、RSB50-10C2滚珠丝杠、RSB63-10C2滚珠丝杠

发布时间：2025-05-05

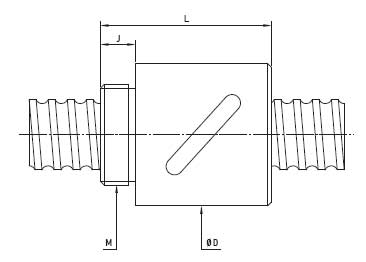

型号规格珠径珠卷数基本额定螺帽锁定螺纹锁定螺纹长度

动载静载 L D M J

外径导程 C(kgf) Co(kgf) 　　

8-2.5B1 8 2.5 2 2.5×1 218 317 24 22 M18×1P 7.5

10-2.5B1 10 2.5 2 2.5×1 252 405 24 24 M20×1P 7.5

10-4B1 10 4 2.381 2.5×1 304 466 34 26 M22×1P 10

12-4B1 12 4 2.381 2.5×1 344 574 34 28 M25×1.5P 10

16-5B1 16 5 3.175 2.5×1 679 1226 42 36 M30×1.5P 12

20-5C1 20 5 3.175 3.5×1 1001 2149 54 40 M36×1.5P 14

25-5B2 25 5 3.175 2.5×2 1534 3975 69 46 M42×1.5P 19

32-5B2 32 5 3.175 2.5×2 1702 5098 69 54 M50×2P 19

32-10B2 32 10 6.35 2.5×2 4379 10345 105 68 M62×2P 19

40-10B2 40 10 6.35 2.5×2 4812 12732 110 76 M70×2P 24

50-10C2 50 10 6.35 3.5×2 7146 22477 135 88 M82×2P 29

63-10C2 63 10 6.35 3.5×2 7869 28290 135 104 M95×2P 29

上一篇：RSI1602T4滚珠丝杠、RSI1605T3滚珠丝杠、RSI1605T4滚珠丝杠、RSI2005T3滚珠丝杠、RSI2005T4滚珠丝杠、RSI2006T3滚珠丝杠、RSI2006T4滚珠丝杠、RSI2505T3滚珠丝杠、RSI2505T4滚珠丝杠、RSI2506T3滚珠丝杠、RSI2506T4滚珠丝杠、RSI3205T3滚珠丝杠、RSI3205T4滚珠丝杠、RSI3205T6滚珠丝杠、RSI3206T3滚珠丝杠 —— 下一篇：RSB802.5B1滚珠丝杠、RSB1002.5B1滚珠丝杠、RSB1004B1滚珠丝杠、RSB1204B1滚珠丝杠、RSB1605B1滚珠丝杠、RSB2005C1滚珠丝杠、RSB2505B2滚珠丝杠、RSB3205B2滚珠丝杠、RSB3210B2滚珠丝杠、RSB4010B2滚珠丝杠、RSB5010C2滚珠丝杠、RSB6310C2滚珠丝杠

返回搜轴承首页

型号	规格		珠径	珠卷数	基本额定		螺帽		锁定螺纹	锁定螺纹长度
	规格				动载	静载	L	D	M	J
	外径	导程			C(kgf)	Co(kgf)	L	D
8-2.5B1	8	2.5	2	2.5×1	218	317	24	22	M18×1P	7.5
10-2.5B1	10	2.5	2	2.5×1	252	405	24	24	M20×1P	7.5
10-4B1	10	4	2.381	2.5×1	304	466	34	26	M22×1P	10
12-4B1	12	4	2.381	2.5×1	344	574	34	28	M25×1.5P	10
16-5B1	16	5	3.175	2.5×1	679	1226	42	36	M30×1.5P	12
20-5C1	20	5	3.175	3.5×1	1001	2149	54	40	M36×1.5P	14
25-5B2	25	5	3.175	2.5×2	1534	3975	69	46	M42×1.5P	19
32-5B2	32	5	3.175	2.5×2	1702	5098	69	54	M50×2P	19
32-10B2	32	10	6.35	2.5×2	4379	10345	105	68	M62×2P	19
40-10B2	40	10	6.35	2.5×2	4812	12732	110	76	M70×2P	24
50-10C2	50	10	6.35	3.5×2	7146	22477	135	88	M82×2P	29
63-10C2	63	10	6.35	3.5×2	7869	28290	135	104	M95×2P	29
