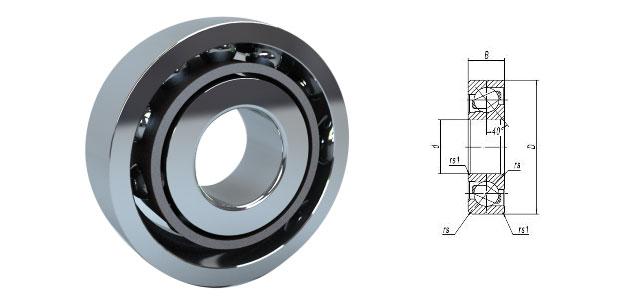

该类轴承能够同时承受径向载荷和轴向载荷，也可以承受纯轴向载荷，能在较高的转速下工作。单列角接触球轴承只能承受一个方向的轴向载荷，承受轴向负荷的能力由接触角决定，接触角大，承受轴向负荷的能力高, 但接触角越小则越有利于高速旋转。接触角α的定义为，径向平面上连接滚球和滚道触点的线与一条同轴承轴垂直的线之间的角度。按接触角度的不同分为：
1、接触角α=15°，后置代号为C，多用于较大尺寸精密轴承，如7005C；
2、接触角α=25°，后置代号为AC或A5，多用于精密主轴轴承，如7005AC；
3、接触角α=30°，后置代号为A，多用于精密主轴轴承，如7005A；
4、接触角α=40°，后置代号为B，适用于承受较大的轴向载荷，如7005B；
（附：单列角接触轴承参数）
|
主要尺寸（mm） |
型号 |
rs |
r1s |
重量 |
设定载荷 |
极限转速 | |||||||||
|
d |
D |
B |
|
min |
min |
kg |
Cr(KN) |
Cor(KN) |
min-1 | ||||||
|
10 |
30 |
9 |
7200B.TVP |
0.6 |
0.3 |
0.032 |
5 |
2.5 |
32000 | ||||||
|
12 |
32 |
10 |
7201B.TVP |
0.6 |
0.3 |
0.035 |
6.95 |
3.4 |
28000 | ||||||
|
|
37 |
12 |
7301B.TVP |
1 |
0.6 |
0.06 |
10.6 |
5 |
24000 | ||||||
|
15 |
35 |
11 |
7202B.TVP |
0.6 |
0.3 |
0.044 |
8 |
4.3 |
24000 | ||||||
|
|
42 |
13 |
7302B.TVP |
1 |
0.6 |
0.082 |
12.9 |
6.55 |
20000 | ||||||
|
17 |
40 |
12 |
7203B.TVP |
0.6 |
0.6 |
0.065 |
10 |
5.5 |
20000 | ||||||
|
|
47 |
14 |
7303B.TVP |
1 |
0.6 |
0.109 |
16 |
8.3 |
18000 | ||||||
|
20 |
47 |
14 |
7204B.TVP |
1 |
0.6 |
0.104 |
13.4 |
7.65 |
18000 | ||||||
|
|
52 |
15 |
7304B.TVP |
1.1 |
0.6 |
0.143 |
19 |
10.4 |
17000 | ||||||
|
25 |
52 |
15 |
7205B.TVP |
1 |
0.6 |
0.127 |
14.6 |
9.3 |
16000 | ||||||
|
|
62 |
17 |
7305B.TVP |
1.1 |
0.6 |
0.223 |
26 |
15 |
14000 | ||||||
|
30 |
62 |
16 |
7206B.TVP |
1 |
0.6 |
0.196 |
20.4 |
13.4 |
13000 | ||||||
|
|
72 |
19 |
7306B.TVP |
1.1 |
0.6 |
0.341 |
32.5 |
20 |
11000 | ||||||
|
35 |
72 |
17 |
7207B.TVP |
1.1 |
0.6 |
0.282 |
27 |
18.3 |
11000 | ||||||
|
|
80 |
21 |
7307B.TVP |
1.5 |
1 |
0.447 |
39 |
25 |
9500 | ||||||
|
40 |
80 |
18 |
7208B.TVP |
1.1 |
0.6 |
0.367 |
32 |
23.2 |
9500 | ||||||
|
|
90 |
23 |
7308B.TVP |
1.5 |
1 |
0.609 |
50 |
32.5 |
8500 | ||||||
|
45 |
85 |
19 |
7209B.TVP |
1.1 |
0.6 |
0.405 |
36 |
26.5 |
8500 | ||||||
|
|
100 |
25 |
7309B.TVP |
1.5 |
1 |
0.812 |
60 |
40 |
7500 | ||||||
|
50 |
90 |
20 |
7210B.TVP |
1.1 |
0.6 |
0.458 |
37.5 |
28.5 |
8000 | ||||||
|
|
110 |
27 |
7310B.TVP |
2 |
1 |
1.05 |
69.5 |
47.5 |
7000 | ||||||
|
55 |
100 |
21 |
7211B.TVP |
1.5 |
1 |
0.604 |
46.5 |
36 |
7000 | ||||||
|
|
120 |
29 |
7311B.TVP |
2 |
1 |
1.38 |
78 |
56 |
6300 | ||||||
|
60 |
110 |
22 |
7212B.TVP |
1.5 |
1 |
0.78 |
56 |
44 |
6300 | ||||||
|
|
130 |
31 |
7312B.TVP |
2.1 |
1.1 |
1.72 |
90 |
65.5 |
5600 | ||||||
|
65 |
120 |
23 |
7213B.TVP |
1.5 |
1 |
1 |
64 |
53 |
6000 | ||||||
|
|
140 |
33 |
7313B.TVP |
2.1 |
1.1 |
2.12 |
102 |
75 |
5300 | ||||||
|
70 |
125 |
24 |
7214B.TVP |
1.5 |
1 |
1.08 |
69.5 |
58.5 |
5600 | ||||||
|
|
150 |
35 |
7314B.TVP |
2.1 |
1.1 |
2.57 |
114 |
863.5 |
5000 | ||||||
|
75 |
130 |
25 |
7215B.TVP |
1.5 |
1 |
1.16 |
68 |
58.5 |
5300 | ||||||
|
|
160 |
37 |
7315B.TVP |
2.1 |
1.1 |
3.08 |
127 |
100 |
4500 | ||||||
|
80 |
140 |
26 |
7216B.TVP |
2 |
1 |
1.42 |
80 |
69.5 |
5000 | ||||||
|
|
170 |
39 |
7316B.TVP |
2.1 |
1.1 |
3.66 |
140 |
114 |
4300 | ||||||
|
85 |
150 |
28 |
7217B.TVP |
2 |
1 |
1.82 |
90 |
80 |
4500 | ||||||
|
|
180 |
41 |
7317B.TVP |
3 |
1.1 |
4.26 |
150 |
127 |
4000 | ||||||
|
90 |
160 |
30 |
7218B.TVP |
2 |
1 |
2.21 |
106 |
93 |
4300 | ||||||
|
|
190 |
43 |
7318B.TVP |
3 |
1.1 |
4.99 |
160 |
140 |
3800 | ||||||
|
95 |
170 |
32 |
7219B.TVP |
2.1 |
1.1 |
2.63 |
116 |
100 |
4000 | ||||||
|
|
200 |
45 |
7319B.TVP |
3 |
1.1 |
5.77 |
173 |
153 |
3800 | ||||||
|
100 |
180 |
34 |
7220B.TVP |
2.1 |
1.1 |
3.16 |
129 |
114 |
3800 | ||||||
|
|
225 |
49 |
7320B.TVP |
3 |
1.1 |
7.16 |
193 |
180 |
3600 | ||||||
|
105 |
190 |
36 |
7221B.TVP |
2.1 |
1.1 |
4.18 |
143 |
129 |
6000 | ||||||
|
|
225 |
49 |
7321B.TVP |
3 |
1.1 |
9 |
200 |
193 |
5300 | ||||||
|
110 |
200 |
38 |
7222B.TVP |
2.1 |
1.1 |
4.44 |
153 |
143 |
3600 | ||||||
|
|
240 |
50 |
7322B.TVP |
3 |
1.1 |
9.73 |
224 |
224 |
3400 | ||||||
|
120 |
215 |
40 |
7224B.TVP |
2.1 |
1.1 |
5.31 |
166 |
160 |
3400 | ||||||
|
|
260 |
55 |
7324B.TVP |
3 |
1.1 |
12.4 |
250 |
260 |
3200 | ||||||
|
130 |
230 |
40 |
7226B.TVP |
3 |
1.1 |
6.12 |
186 |
190 |
3200 | ||||||
|
|
280 |
58 |
7326B.TVP |
4 |
1.5 |
15.1 |
275 |
300 |
3000 | ||||||
|
140 |
250 |
42 |
7228B.TVP |
3 |
1.1 |
8.55 |
196 |
212 |
4800 | ||||||
|
|
320 |
65 |
7328B.TVP |
4 |
1.5 |
20.4 |
300 |
340 |
4300 | ||||||
|
150 |
270 |
45 |
7230B.TVP |
3 |
1.1 |
10.9 |
224 |
255 |
4500 | ||||||
|
|
320 |
65 |
7330B.TVP |
4 |
1.5 |
24.8 |
325 |
390 |
3800 | ||||||
