搜轴承 -- 黑板报 -- NCF3004V(SL183004)轴承、NCF2204V(SL182204)轴承、NCF3005V(SL183...

NCF3004V(SL183004)轴承、NCF2204V(SL182204)轴承、NCF3005V(SL183005)轴承、NCF2205V(SL182205)轴承、NJ2305V(SL192305)轴承、NCF3006V(SL183006)轴承

发布时间：2025-05-04

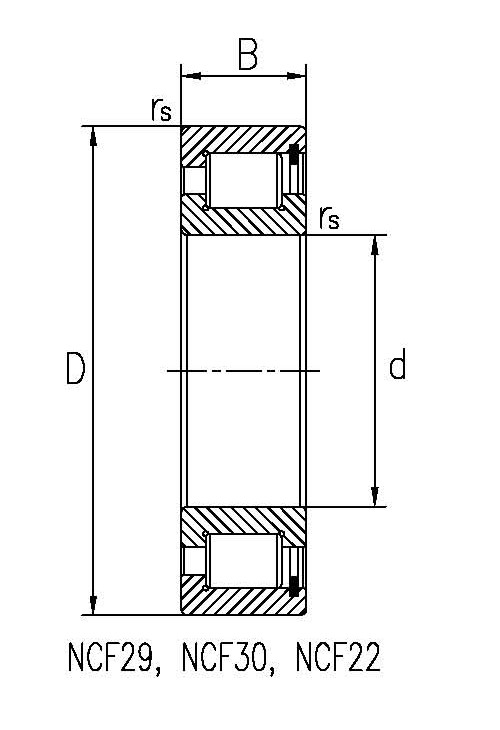

BEARINGPOWER	INA Model	Boundary dimensions (mm)					Basic load ratings (KN)		Limiting speed (r/min)	Weight (KG)
		d	D	B	rsmin	s	Cr	Cor
NCF3004V	SL183004	20	42	16	0.6	1.5	27.5	26.5	9000	0.11
NCF2204V	SL182204	20	47	18	1	1	41	37.5	7000	0.16
NCF3005V	SL183005	25	47	16	0.6	1.5	31.5	32.5	7500	0.12
NCF2205V	SL182205	25	52	18	1	1	46	45	6000	0.18
NJ2305V	SL192305	25	62	24	1.1	2	63	57	4500	0.37
NCF3006V	SL183006	30	55	19	1	2	40.5	43	6500	0.2
NCF2206V	SL182206	30	62	20	1	1	61	63	5000	0.3
NJ2306V	SL192306	30	72	27	1.1	2	87	85	3800	0.56
NCF3007V	SL183007	35	62	20	1	2	49.5	55	5500	0.26
NCF2207V	SL182207	35	72	23	1.1	1	76	77	4300	0.44
NJ2307V	SL192307	35	80	31	1.5	2	113	112	3400	0.74
NCF3008V	SL183008	40	68	21	1	2	59	68	5000	0.31
NCF3008V	SL183008	40	68	21	1	2	59	68	5000	0.31
NCF2208V	SL182208	40	80	23	1.1	1	84	89	3800	0.55
NJ2308V	SL192308	40	90	33	1.5	2	152	155	3000	1.01
NCF3009V	SL183009	45	75	23	1	2	63	76	4600	0.4
NCF2209V	SL182209	45	85	23	1.1	1	88	96	3600	0.59
NJ2309V	SL192309	45	100	36	1.5	3	162	165	2700	1.37
NCF3010V	SL183010	50	80	23	1	2	77	92	4300	0.43
NCF2210V	SL182210	50	90	23	1.1	1	95	109	3300	0.64
NJ2310V	SL192310	50	110	40	2	3	205	215	2500	1.81
NCF3011V	SL183011	55	90	26	1.1	2	105	134	3700	0.64
NCF2211V	SL182211	55	100	25	1.5	1.5	122	145	3000	0.87
NJ2311V	SL192311	55	120	43	2	3	242	255	2300	2.28
NCF2912V	SL182912	60	85	16	1	1	54	74	3800	0.29
NCF3012V	SL183012	60	95	26	1.1	2	108	141	3500	0.69
NCF2212V	SL182212	60	110	28	1.5	1.5	152	179	2700	1.18
NJ2312V	SL192312	60	130	46	2.1	3	260	280	2100	2.88
NCF2913V	SL182913	65	90	16	1	1	57	81	3500	0.31
NCF3013V	SL183013	65	100	26	1.1	2	113	154	3200	0.73
NCF2213V	SL182213	65	120	31	1.5	1.5	177	213	2500	1.57
NJ2313V	SL192313	65	140	48	2.1	3.5	315	355	1900	3.52
