LB51212OP直线轴承、LB81625OP直线轴承、LB122232OP直线轴承、LB162636OP直线轴承、LB203242OP直线轴承、LB254058OP直线轴承、LB304768OP直线轴承、LB406280OP直线轴承、LB5075100OP直线轴承、LB6090110OP直线轴承
发布时间：2025-05-04
|

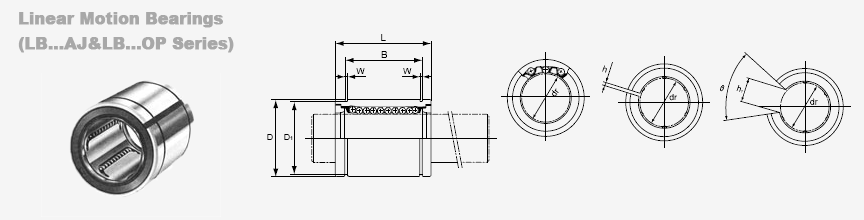

Model No. |
Number of Ball Rows / Mass(g) |
Length ( L ) |
Inscribed circle diameter |
Outer diameter | |||
|
Clearance adjustment type |
Open type |
dr |
D | ||||
|
LB51212AJ |
LB51212OP |
4 / 12 |
12 |
5 |
+0.008/0 |
12 |
0/-0.008 |
|
LB81625AJ |
LB81625OP |
4 / 20 |
25 |
8 |
+0.008/0 |
16 |
0/-0.008 |
|
LB122232AJ |
LB122232OP |
4 / 41 |
32 |
12 |
+0.008/0 |
22 |
0/-0.009 |
|
LB162636AJ |
LB162636OP |
5 / 57 |
36 |
16 |
+0.009/-0.001 |
26 |
0/-0.009 |
|
LB203242AJ |
LB203242OP |
5 / 91 |
42 |
20 |
+0.009/-0.001 |
32 |
0/-0.011 |
|
LB254058AJ |
LB254058OP |
6 / 215 |
58 |
25 |
+0.011/-0.001 |
40 |
0/-0.011 |
|
LB304768AJ |
LB304768OP |
6 / 325 |
68 |
30 |
+0.011/-0.001 |
47 |
0/-0.011 |
|
LB406280AJ |
LB406280OP |
6 / 705 |
80 |
40 |
+0.013/-0.002 |
62 |
0/-0.013 |
|
LB5075100AJ |
LB5075100OP |
6 / 1130 |
100 |
50 |
+0.013/-0.002 |
75 |
0/-0.013 |
|
LB6090110AJ |
LB6090110OP |
6 / 2220 |
110 |
60 |
+0.013/-0.002 |
90 |
0/-0.015 |
|
Main dimensions Length mm |
Eccentricity |
Radial clearance |
Basic load rating |
Model No. | |||||||
|
L |
B |
W |
D1 |
h |
h1 |
θ |
μm |
μm |
C |
Co |
- |
|
22 0/-0.2 |
14.5 0/-0.2 |
1.1 |
11.5 |
1 |
- |
- |
12 |
-5 |
21 |
27 |
LB51212 |
|
25 0/-0.2 |
16.5 0/-0.2 |
1.1 |
15.2 |
1 |
- |
- |
12 |
-5 |
27 |
41 |
LB81625 |
|
32 0/-0.2 |
22.9 0/-0.2 |
1.3 |
21 |
1.5 |
- |
- |
12 |
-7 |
52 |
79 |
LB122232 |
|
36 0/-0.2 |
24.9 0/-0.2 |
1.3 |
24.9 |
1.5 |
10 |
78° |
12 |
-7 |
59 |
91 |
LB162636 |
|
45 0/-0.2 |
31.5 0/-0.2 |
1.6 |
30.3 |
2 |
10 |
60° |
15 |
-9 |
88 |
140 |
LB203242 |
|
58 0/-0.3 |
44.1 0/-0.3 |
1.85 |
37.5 |
2 |
12.5 |
60° |
15 |
-9 |
100 |
160 |
LB254058 |
|
68 0/-0.3 |
52.1 0/-0.3 |
1.85 |
44.5 |
2 |
12.5 |
50° |
15 |
-9 |
160 |
280 |
LB304768 |
|
80 0/-0.3 |
60.6 0/-0.3 |
2.15 |
59 |
3 |
16.8 |
50° |
17 |
-13 |
220 |
400 |
LB406280 |
|
100 0/-0.3 |
77.6 0/-0.3 |
2.65 |
72 |
3 |
21 |
50° |
17 |
-13 |
390 |
810 |
LB5075100 |
|
125 0/-0.4 |
101.7 0/-0.4 |
3.15 |
86.5 |
3 |
27.2 |
54° |
20 |
-16 |
480 |
1020 |
LB6090110 |
