搜轴承 -- 黑板报 -- 深沟球轴承6206-RS2内径X外径X高度30X62X16

深沟球轴承6206-RS2内径X外径X高度30X62X16

发布时间：2025-05-04

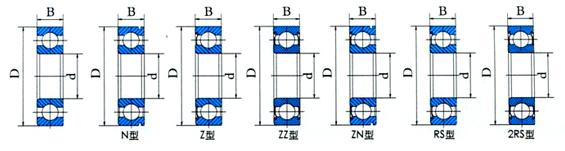

基本尺寸				基本额定负荷		轴承代号	安装相关尺寸				极限转速		重量
d	D	B	rsmin	Cr	Cor		Dsmin	Dsmax	dhmax	Rmax	脂润滑	油润滑
26	68	19.5	2	40.3	17	6605X2WBTN1/HA	33		61	2	9500	12000	0.272
28	68	18	1.1	32.5	13	63/28/HA	34.5		61.5	1	9000	11000	0.299
28	68	18	1.1	32.5	13	63/28-RS/HA	34.5		61.5	1	6300		0.305
30	55	13	1	13.3	6.9	6006-2RS	35		50	1	8000		0.12
30	62	16	1	19.2	11.4	6206-RS	35		56	1	10000		0.224
30	62	16	1	19.2	11.4	6206-RS2	35		56	1	10000		0.212
30	62	16	1	19.2	11.4	6206-2RZ	35	38	56	1	10000		0.24
30	72	19	1.1	26.7	15	6306-2RS	36.5	41.5	65.5	1	6300		0.355
30	72	19	1.1	26.7	15	6306-RS	36.5	41.5	65.5	1	6300		0.353
30	72	19	1.1	26.7	15	6306-2RS/YA6	36.5	41.5	65.5	1	6300		0.338
30	55	13	1	13.3	6.9	6006-2Z	35		50	1	12000	15000	0.12
30	62	16	1	19.2	11.4	6206-2Z	35		57	1	10000	13000	0.224
30	62	16	1	19.2	11.4	6206-Z	35		57	1	10000	13000	0.223
30	62	16	1	19.2	11.4	6206-ZS	35		57	1	10000	13000	0.223
30	72	19	1.1	26.7	15	6306-2Z	36.5		65.5	1	9000	11000	0.357
30	72	19	1.1	26.7	15	6306-Z	36.5		65.5	1	9000	11000	0.356
30	75	20	0.5	32.5	18	450706K	36.5		68.5	0.5	9000		0.474
30	47	9	0.3	9.75	4.95	61906	32		45	0.3	14000	17000	0.0433
30	59	22	0.4	13	8	1-0005	33		55	0.4	10000	13000	0.191
30	62	16	1	19.2	11.4	6206	35		57	1	10000	13000	0.218
30	72	19	1.1	26.7	15	6306	36.5		65.5	1	9000	11000	0.354
30	90	23	1.5	44.5	22.8	6406	38		82	1.5	8500	10000	0.805
32	80	23	0.5	36.5	20	4507/32KU	38.5		73.5	0.5	9000		0.534
32	72	25	1	26.7	15	66/32WB1-2RSZ/C9	39		69.5	1	9400		0.408
35	64	14	1	16	10.3	6007X1-2RS/C3	39.6		57.4	1	7000		0.196
35	62	14	1	16	10.3	6007-2RZ	39.6		57.4	1	7000		0.169
35	62	14	1	16	10.3	6007-2RS	39.6		57.4	1	7000		0.175
35	72	17	1.1	25.7	15.3	6207-RS	41.5		65.5	1	6300		0.296
35	72	17	1.1	25.7	15.3	6207-RS2	41.5		65.5	1	6300		0.296
35	72	17	1.1	25.7	15.3	6207-2RS2	41.5		65.5	1	6300		0.299
35	72	17	1.1	25.7	15.3	6207-2RS	41.5		65.5	1	6300		0.291
35	80	21	1.5	35.5	19.2	6307-RS	43		72	1.5	6000		0.48
35	80	21	1.5	35.5	19.2	6307-2RS	43		72	1.5	6000		0.491
35	80	21	1.5	35.5	19.2	6307-Z	43		72	1.5	8500	10000	0.466
35	62	14	1	16	10.3	6007-Z/C3	40		57	1	10000	13000	0.154
35	72	17	1.1	25.7	15.3	6207-2Z	41.5		65.5	1	9000	11000	0.3
35	72	17	1.1	25.7	15.3	6207-Z	41.5		65.5	1	9000	11000	0.29
35	80	21	1.5	35.5	19.2	6307-2Z	43		72	1.5	8500	10000	0.476
35	62	14	1	16.3	10.5	6007	40		57	1	10000	13000	0.148
35	72	17	1.1	25.7	15.3	6207	41.5		65.5	1	9000	11000	0.284
