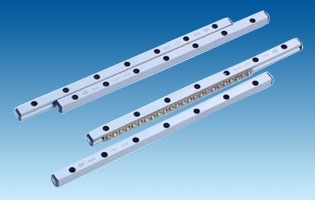

SGV2导轨轴承、SGV3导轨轴承、SGV4导轨轴承、SGV6导轨轴承、SGV9导轨轴承、SGV12导轨轴承、SGV15导轨轴承、SGV18导轨轴承
发布时间：2026-06-24
|

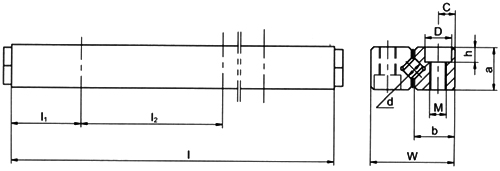

d |
W |
a |
b |
c |
M |
l1 |
l2 |
D |
h |
额定载荷(kN) | |||
|
Cz |
C0z | |||||||||||||
|
SGV2 |
2 |
12 |
6 |
5.5 |
2.5 |
M3 |
7.5 |
15 |
4.4 |
2 |
0.17 |
0.12 | ||
|
SGV3 |
3 |
18 |
8 |
8.3 |
3.5 |
M4 |
12.5 |
25 |
6 |
3.1 |
0.27 |
0.36 | ||
|
SGV4 |
4 |
22 |
11 |
10.2 |
4.5 |
M5 |
20 |
40 |
8 |
4.2 |
0.63 |
0.76 | ||
|
SGV6 |
6 |
30 |
15 |
14.4 |
6 |
M6 |
25 |
50 |
9.5 |
5.2 |
1.7 |
1.9 | ||
|
SGV9 |
9 |
40 |
20 |
19.2 |
8 |
M8 |
50 |
100 |
10.5 |
6.2 |
4.3 |
4.36 | ||
|
SGV12 |
12 |
58 |
28 |
28 |
12 |
M10 |
14 |
8.2 |
7.2 |
7.6 | ||||
|
SGV15 |
15 |
71 |
36 |
34.4 |
14 |
M12 |
17.5 |
10.2 |
11.2 |
12.3 | ||||
|
SGV18 |
18 |
83 |
40 |
40.2 |
18 |
M14 |
20 |
12.2 |
15.9 |
17.8 | ||||
