FZ1602T4滚珠丝杠、FZ1605T3滚珠丝杠、FZ1605T4滚珠丝杠、FZ2005T3滚珠丝杠、FZ2005T4滚珠丝杠、FZ2006T3滚珠丝杠、FZ2006T4滚珠丝杠、FZ2505T3滚珠丝杠、FZ2505T4滚珠丝杠、FZ2506T3滚珠丝杠、FZ2506T4滚珠丝杠、FZ3205T3滚珠丝杠、FZ3205T4滚珠丝杠、FZ3205T6滚珠丝杠、FZ3206T3滚珠丝杠

发布时间：2019-09-30

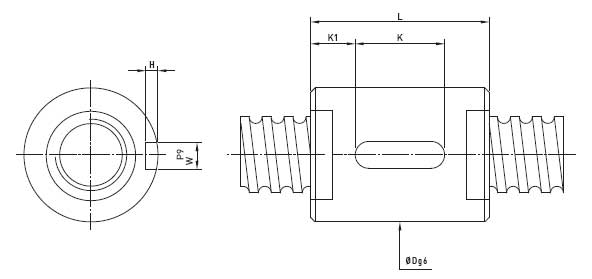

型号 规格 珠径 珠卷数 刚性 基本额定 螺帽 键槽
K 动载 静载 D L K W H K1
外径 导程 C(kgf) Co(kgf)
FZ1602T4 16 2 1.5 4 15 178 395 25 25 25 20 3 1.8 2.5
FZ1605T3 16 5 3.175 3 11 731 1331 28 30 40 20 3 1.8 10
FZ1605T4 16 5 3.175 4 12 936 1775 28 30 46 20 3 1.8 13
FZ2005T3 20 5 3.175 3 20 852 1767 32 34 41 20 3 1.8 10.5
FZ2005T4 20 5 3.175 4 27 1091 2356 32 34 48 20 3 1.8 14
FZ2006T3 20 6 3.969 3 20 1091 2081 34 36 46 20 4 2.5 13
FZ2006T4 20 6 3.969 4 27 1398 2774 34 36 56 25 4 2.5 15.5
FZ2505T3 25 5 3.175 3 28 977 2314 37 40 41 20 4 2.5 10.5
FZ2505T4 25 5 3.175 4 37 1252 3085 37 40 48 20 4 2.5 14
FZ2506T3 25 6 3.969 3 28 1272 2762 38 42 46 20 4 2.5 13
FZ2506T4 25 6 3.969 4 37 1628 3682 38 42 56 25 4 2.5 15.5
FZ3205T3 32 5 3.175 3 33 1117 3081 44 48 41 20 4 2.5 10.5
FZ3205T4 32 5 3.175 4 42 1431 4108 44 48 48 20 4 2.5 14
FZ3205T6 32 5 3.175 6 63 2027 6162 44 48 61 25 4 2.5 18
FZ3206T3 32 6 3.969 3 33 1446 3620 45 50 46 20 5 3 13
FZ3206T4 32 6 3.969 4 43 1852 4826 45 50 56 25 5 3 15.5
FZ3206T6 32 6 3.969 6 65 2625 7239 45 50 70 32 5 3 19
FZ3208T3 32 8 4.763 3 35 1810 4227 47 52 59 25 5 3 17
FZ3208T4 32 8 4.763 4 47 2317 5635 47 52 70 25 5 3 22.5
FZ3210T3 32 10 6.35 3 35 2539 5327 51 56 68 25 6 3.5 21.5
FZ3210T4 32 10 6.35 4 48 3252 7102 51 56 79 32 6 3.5 23.5
FZ4005T4 40 5 3.175 4 50 1599 5280 51 54 48 20 4 2.5 14
FZ4005T6 40 5 3.175 6 74 2265 7919 51 54 61 25 4 2.5 18
FZ4006T4 40 6 3.969 4 50 2136 6420 53 56 56 25 5 3 15.5
FZ4006T6 40 6 3.969 6 74 3028 9630 53 56 70 32 5 3 19
FZ4008T4 40 8 4.763 4 52 2728 7596 55 60 70 25 5 3 22.5
FZ4008T6 40 8 4.763 6 76 3866 11394 55 60 91 40 5 3 25.5
FZ4010T3 40 10 6.35 3 40 2959 7069 60 65 68 25 6 3.5 21.5
FZ4010T4 40 10 6.35 4 51 3789 9426 60 65 79 32 6 3.5 23.5
FZ5005T4 50 5 3.175 4 62 1757 6745 62 65 48 20 4 2.5 14
FZ5005T6 50 5 3.175 6 91 2490 10117 62 65 61 25 4 2.5 18
FZ5006T4 50 6 3.969 4 62 2388 8250 64 68 56 25 5 3 15.5
FZ5006T6 50 6 3.69 6 93 3384 12375 64 68 70 32 5 3 19
FZ5008T4 50 8 4.763 4 62 2998 9578 65 70 70 32 5 3 19
FZ5008T6 50 8 4.763 6 92 4249 14367 65 70 91 40 5 3 25.5
FZ5010T3 50 10 6.35 3 50 3397 9256 69 74 68 32 6 3.5 18
FZ5010T4 50 10 6.35 4 63 4350 12341 69 74 79 32 6 3.5 23.5
FZ5010T6 50 10 6.35 6 94 6165 18511 69 74 102 40 6 3.5 31
FZ5012T3 50 12 7.938 3 50 4420 11047 73 78 82 40 6 3.5 21
FZ5012T4 50 12 7.938 4 63 5660 14730 73 78 95 40 6 3.5 27.5
FZ6306T4 63 6 3.969 4 75 2674 10542 78 80 56 25 6 3.5 15.5
FZ6306T6 63 6 3.969 6 113 3704 15813 78 80 70 32 6 3.5 19
FZ6308T4 63 8 4.763 4 77 3395 12541 79 82 70 32 6 3.5 19
FZ6308T6 63 8 4.763 6 114 4812 18811 79 82 91 40 6 3.5 25.5
FZ6310T4 63 10 6.35 4 79 4860 15858 82 88 79 32 8 4 23.5
FZ6310T6 63 10 6.35 6 115 6887 23786 82 88 102 40 8 4 31
FZ6312T4 63 12 7.938 4 78 6479 19293 86 92 95 40 8 4 27.5
FZ6312T6 63 12 7.938 6 113 9182 28939 86 92 123 50 8 4 36.5
FZ8010T4 80 10 6.35 4 96 5559 2118 99 105 79 32 8 4 23.5
FZ8010T6 80 10 6.35 6 140 7879 31677 99 105 102 40 8 4 62
FZ8012T4 80 12 7.938 4 97 7430 25681 103 110 95 40 8 4 27.5
FZ8012T6 80 12 7.938 6 141 10530 38521 103 110 123 50 8 4 36.5
FZ8016T3 80 16 9.525 3 95 9663 31622 108 115 106 40 10 5 33
FZ8016T4 80 16 9.525 4 130 12375 42162 108 115 124 50 10 5 37
FZ8020T3 80 20 9.525 3 95 9663 31622 108 115 126 50 10 5 38
FZ8020T4 80 20 9.525 4 125 12375 42162 108 115 149 63 10 5 43
FZ10012T4 100 12 7.938 4 105 8306 33001 123 130 95 40 8 4 27.5
FZ10012T6 100 12 7.938 6 175 11772 49502 123 130 123 50 8 4 36.5
FZ10016T4 100 16 9.525 4 107 13569 53161 125 135 124 50 10 5 37
FZ10016T6 100 16 9.525 6 140 19230 79741 125 135 161 63 10 5 49
FZ10020T4 100 20 9.525 4 155 13569 53161 125 135 149 63 10 5 43
