HC206-19轴承、HC206-20轴承、NA207-20轴承、HC207-21轴承、HC207-22轴承、HC207轴承、HC207-23轴承、NA208-24轴承、HC208-25轴承、HC208轴承、NA209-26轴承、HC209-27轴承 — 搜轴承黑板报
搜轴承 -- 黑板报 -- HC206-19轴承、HC206-20轴承、NA207-20轴承、HC207-21轴承、...

HC206-19轴承、HC206-20轴承、NA207-20轴承、HC207-21轴承、HC207-22轴承、HC207轴承、HC207-23轴承、NA208-24轴承、HC208-25轴承、HC208轴承、NA209-26轴承、HC209-27轴承

发布时间：2019-10-18

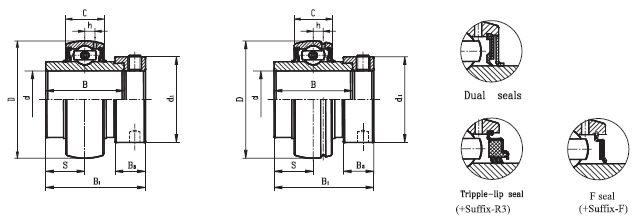

Bearing No. shaft Dia. Dimensions(mm)/(in.) Eccentric collar Basic load ratings (N) Mass(kg)
d D C B S B1 B3 h d1 Dynamic Cr Static Cor
(in.) (mm)
 HC202S 15 40 14 27.8 13.9 37.3 13.5 3.5 28.6 A202S 9550 4780 0.22
 HC202-10S 5/8 40 14 27.8 13.9 37.3 13.5 3.5 28.6 A202-10S 9550 4780 0.21
 HC203S 17 40 14 27.8 13.9 37.3 13.5 3.5 28.6 A203S 9550 4780 0.20
 HC203-11S 11/16 40 14 27.8 13.9 37.3 13.5 3.5 28.6 A203-11S 9550 4780 0.19
 HC204-12 3/4 47 16 34 17 43.5 13.5 4.4 33.3 A204-12 12800 6650 0.23
 HC204 20 47 16 34 17 43.5 13.5 4.4 33.3 A204-12 12800 6650 0.22
 NA205-14 7/8 52 17 34.8 17.4 44.3 13.5 4.3 38.1 A205-14 14000 7880 0.29
 HC205-15 15/16 52 17 34.8 17.4 44.3 13.5 4.3 38.1 A205-15 14000 7880 0.27
 HC205 25 52 17 34.8 17.4 44.3 13.5 4.3 38.1 A205 14000 7880 0.25
 HC205-16 1 52 17 34.8 17.4 44.3 13.5 4.3 38.1 A205-16 14000 7880 0.24
 NA206-18 1-1/8 62 19 36.4 18.2 48.3 15.9 5 44.5 A206-18 19500 11200 0.43
 HC206 30 62 19 36.4 18.2 48.3 15.9 5 44.5 A206 19500 11200 0.41
 HC206-19 1-3/16 62 19 36.4 18.2 48.3 15.9 5 44.5 A206-19 19500 11200 0.40
 HC206-20 1-1/4 62 19 36.4 18.2 48.3 15.9 5 44.5 A206-20 19500 11200 0.38
 NA207-20 1-1/4 72 20 37.6 18.8 51.1 17.5 5.8 55.6 A207-20 25700 15200 0.68
 HC207-21 1-5/16 72 20 37.6 18.8 51.1 17.5 5.8 55.6 A207-21 25700 15200 0.65
 HC207-22 1-3/8 72 20 37.6 18.8 51.1 17.5 5.8 55.6 A207-22 25700 15200 0.61
 HC207 35 72 20 37.6 18.8 51.1 17.5 5.8 55.6 A207 25700 15200 0.60
 HC207-23 1-7/16 72 20 37.6 18.8 51.1 17.5 5.8 55.6 A207-23 25700 15200 0.58
 NA208-24 1-1/2 80 21 42.8 21.4 56.3 18.3 6.3 60.3 A208-24 29600 18200 0.83
 HC208-25 1-9/16 80 21 42.8 21.4 56.3 18.3 6.3 60.3 A208-25 29600 18200 0.79
 HC208 40 80 21 42.8 21.4 56.3 18.3 6.3 60.3 A208 29600 18200 0.78
 NA209-26 1-5/8 85 22 42.8 21.4 56.3 18.3 6.8 63.5 A209-26 31850 20800 0.96
 HC209-27 1-11/16 85 22 42.8 21.4 56.3 18.3 6.8 63.5 A209-27 31850 20800 0.91
 HC209-28 1-3/4 85 22 42.8 21.4 56.3 18.3 6.8 63.5 A209-28 31850 20800 0.87
 HC209 45 85 22 42.8 21.4 56.3 18.3 6.8 63.5 A209 31850 20800 0.85
 NA210-30 1-7/8 90 23 49.2 24.6 62.7 18.3 6.5 69.9 A210-30 35100 23200 1.10
 HC210-31 1-15/16 90 23 49.2 24.6 62.7 18.3 6.5 69.9 A210-31 35100 23200 1.04
 HC210 50 90 23 49.2 24.6 62.7 18.3 6.5 69.9 A210 35100 23200 1.01
 NA211-32 2 100 25 55.4 27.7 71.3 20.7 7.2 76.2 A211-32 43550 29200 1.58
 HC211-34 2-1/8 100 25 55.4 27.7 71.3 20.7 7.2 76.2 A211-34 43550 29200 1.44
 HC211 55 100 25 55.4 27.7 71.3 20.7 7.2 76.2 A211 43550 29200 1.39
 HC211-35 2-3/16 100 25 55.4 27.7 71.3 20.7 7.2 76.2 A211-35 43550 29200 1.36
 NA212-36 2-1/4 110 27 61.8 30.9 77.7 22.3 8.2 84.2 A212-36 47800 32800 2.03
 HC212 60 110 27 61.8 30.9 77.7 22.3 8.2 84.2 A212 47800 32800 1.87
 HC212-38 2-3/8 110 27 61.8 30.9 77.7 22.3 8.2 84.2 A212-38 47800 32800 1.85
 HC212-39 2-7/16 110 27 61.8 30.9 77.7 22.3 8.2 84.2 A212-39 47800 32800 1.76
 NA213-40 2-1/2 120 28 68.2 34.1 85.7 23.5 8 86 A213-40 57200 40000 2.51
 HC213 65 120 28 68.2 34.1 85.7 23.5 8 86 A213 57200 40000 2.41
 NA214-44 2-3/4 125 30 68.2 34.1 85.7 23.5 9 96.8 A214-44 60800 45000 2.58
 HC214 70 125 30 68.2 34.1 85.7 23.5 9 96.8 A214 60800 45000 2.57
 NA215 75 130 30 74.6 37.3 92.1 23.9 9 102 A215 66000 49500 2.84
 HC215-48 3 130 30 74.6 37.3 92.1 23.9 9 102 A215-48 66000 49500 2.74
 NA216 80 140 33 74.6 37.3 95.2 27 10.3 110 A216 71500 54200 3.12
 NA201S 12 40 14 27.8 13.9 37.3 13.5 3.5 28.6 A201S 9550 4780 0.23
 HC201-8S 1/2 40 14 27.8 13.9 37.3 13.5 3.5 28.6 A201-8S 9550 4780 0.23
 NA201 12 47 16 34 17 43.5 13.5 4.4 33.3 A201 12800 6650 0.28
 HC201-8 1/2 47 16 34 17 43.5 13.5 4.4 33.3 A201-8 12800 6650 0.27
 HC202 15 47 16 34 17 43.5 13.5 4.4 33.3 A202 12800 6650 0.26
 HC202-10 5/8 47 16 34 17 43.5 13.5 4.4 33.3 A202-10 12800 6650 0.25
Bearing No. shaft Dia. Dimensions(mm)/(in.) Eccentric collar Basic load ratings (N) Mass(kg)
d D C B S B1 B3 h d1 Dynamic Cr Static Cor
(in.) (mm)
 HC203 17 47 16 34 17 43.5 13.5 4.4 33.3 A203 12800 6650 0.24
 HC203-11 11/16 47 16 34 17 43.5 13.5 4.4 33.3 A203-11 12800 6650 0.24
 HC216 80 140 33 74.6 37.3 95.2 27 10.3 110 A216 71500 54200 3.12
 NA217 85 150 35 53.2 23.4 73.2 27 11 119 A217 83200 63800
 HC217-52 3-1/4 150 35 53.2 23.4 73.2 27 11 119 A217 83200 63800
 NA218-56 3-1/2 160 37 55 24.5 72.5 24 12 120 A218-56 95900 71500
 HC218 90 160 37 55 24.5 72.5 24 12 120 A218 95900 71500 BEARINGPOWER
