搜轴承 -- 黑板报 -- SAFD201轴承、SAFD202轴承、SAFD202-10轴承、SAPFTD203轴承�...

SAFD201轴承、SAFD202轴承、SAFD202-10轴承、SAPFTD203轴承、SAFD203轴承、SAFD203-11轴承、SAFD204轴承、SAFD204-12轴承、SAFD205轴承

发布时间：2026-06-24

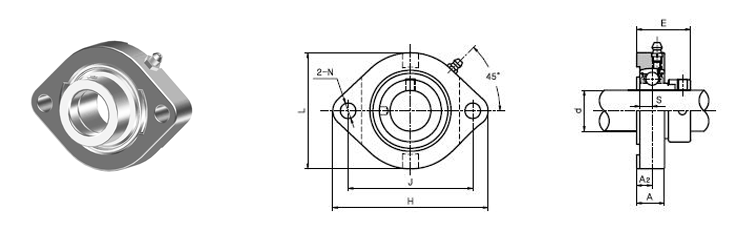

轴承型号	轴径		基本尺寸								螺栓	轴承型号	轴承座型号	质量
	d										(mm)			(kg)
	(in.)	(mm)	H	J	L	A2	A	N	E	S	(in.)			(lbs)
SAFD201		12	81	63.5	59	7.5	15	7	29.6	6.5	M6	SA201FA	FD203	0.36
SAFD202		15	81	63.5	59	7.5	15	7	29.6	6.5	M6	SA202FA	FD203	0.35
SAFD202-10	5/8		3.189	2.5	2.3228	0.2953	0.5906	0.2756	1.1654	0.2559	1/4	SA202-10FA	FD203	0.8
SAPFTD203		17	81	63.5	56	10	10	18	7.1	32.1	6.5	SA203A	SA203FA	PFTD203
SAFD203		17	81	63.5	59	7.5	15	7	29.6	6.5	M6	SA203FA	FD203	0.34
SAFD203-11	11/16		3.189	2.5	2.3228	0.2953	0.5906	0.2756	1.1654	0.2559	1/4	SA203-11FA	FD203	0.7
SAFD204		20	91	71.4	67	9.5	16	9.5	33	7.5	M8	SA204FA	FD204	0.47
SAFD204-12	3/4		3.5827	2.811	2.6378	0.374	0.6299	0.374	1.2992	0.2953	5/16	SA204-12FA	FD204	1
SAFD205		25	95	76.2	71	9.5	17	9.5	33	7.5	M8	SA205A	FD205	0.55
SAFD205-14	7/8		3.7402	3	2.7953	0.374	0.6693	0.374	1.2992	0.2953	5/16	SA205-14A	FD205	1.2
SAFD205-15	15/16		3.7402	3	2.7953	0.374	0.6693	0.374	1.2992	0.2953	5/16	SA205-15A	FD205	1.2
SAFD205-16	1		3.7402	3	2.7953	0.374	0.6693	0.374	1.2992	0.2953	5/16	SA205-16A	FD205	1.2
SAFD206		30	113	90.5	84	9.5	20	11	36.2	9	M10	SA206FA	FD206	0.89
SAFD206-17	1 1/16		4.4488	3.563	3.3071	0.374	0.7874	0.4331	1.4252	0.3543	3/8	SA206-17FA	FD206	2
SAFD206-18	1 1/8		4.4488	3.563	3.3071	0.374	0.7874	0.4331	1.4252	0.3543	3/8	SA206-18FA	FD206	2
SAFD206-19	1 3/16		4.4488	3.563	3.3071	0.374	0.7874	0.4331	1.4252	0.3543	3/8	SA206-19FA	FD206	2
SAFD206-20	1 1/4		4.4488	3.563	3.3071	0.374	0.7874	0.4331	1.4252	0.3543	3/8	SA206-20FA	FD206	2
SAFD207		35	125	100	94	10	22	11	39.4	9.5	M10	SA207FA	FD207	1.03
SAFD207-20	1 1/4		4.9213	3.937	3.7008	0.3937	0.8661	0.4331	1.5512	0.374	3/8	SA207-20FA	FD207	2.3
SAFD207-21	1 5/16		4.9213	3.937	3.7008	0.3937	0.8661	0.4331	1.5512	0.374	3/8	SA207-21FA	FD207	2.3
SAFD207-22	1 3/8		4.9213	3.937	3.7008	0.3937	0.8661	0.4331	1.5512	0.374	3/8	SA207-22FA	FD207	2.3
SAFD207-23	1 7/16		4.9213	3.937	3.7008	0.3937	0.8661	0.4331	1.5512	0.374	3/8	SA207-23FA	FD207	2.3
SAFD208		40	148	119	104	12.5	25	13.5	45.2	11	M12	SA208FA	FD208	1.23
SAFD208-24	1 1/2		5.8268	4.685	4.0945	0.4921	0.9843	0.5315	1.7795	0.4331	1/2	SA208-24FA	FD208	2.7
SAFD208-25	1 9/16		5.8268	4.685	4.0945	0.4921	0.9843	0.5315	1.7795	0.4331	1/2	SA208-25FA	FD208	2.7
