GE1210AS-BALR-455滚珠丝杠、GE1210AS-BALR-0605A滚珠丝杠、GE1220AS-BALR-405滚珠丝杠、GE1220AS-BALR-0605A滚珠丝杠、GE1502DS-BAPR-0600A滚珠丝杠、GE1504DS-BALR-600滚珠丝杠、GE1504DS-BALR-1100A滚珠丝杠、GE1505DS-BALR-600滚珠丝杠、GE1505DS-BALR-1100A滚珠丝杠、GE1510AS-BALR-600滚珠丝杠、GE1510AS-BALR-0900A滚珠丝杠

发布时间：2025-05-04

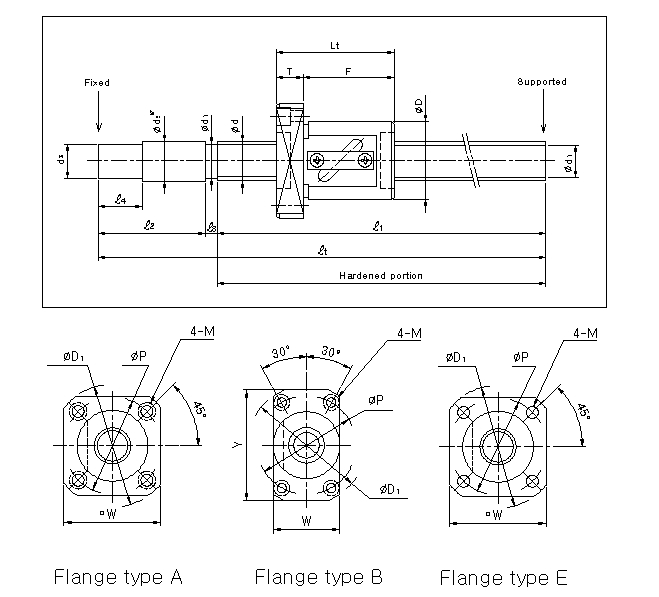

Model number outside lead Screw Shaft Nut Size Ball Basic preload

outside overall body Flange size

GE series diameter Thread Overall Root Shaft end size diameter lengthl length diameter load rating torque

length length diameter of nut of nut of nut type outisde T P.C.D

d L 　　　 D Lt F diameter Db C Co (daN)

1 t d1 d2 d3 2 3 4 　　　 D1 　 (daN) (daN) 　

GE081FDS-AANR-0215A 8 1.5 167 215 7.1 12 11.7 45 3 20 16 24 19 A 32 5 23 1 85 190 0.05

GE0802DS-AANR-0215A 2 6.6 20 30 25 36 27 1.5875 195 260 0.05

GE0804DS-BAFR-215 4 164 215 6.3 12 11.7 45 6 20 22 30 25 B 38 5 29 2 235 330 0.05

GE0804DS-BAFR-0320A 289 340

GE1002DS-EANR-250 10 2 202 250 8.6 10 9.7 45 3 20 　 27 22 E 40 5 31 1.5875 225 330 0.05

GE1002DS-EANR-0320A 272 320 23

GE102FDS-AAFR-250 2.5 196 250 8.3 10 9.7 50 4 20 24 35 27 A 43 8 32 2 270 420 0.05

GE102FDS-AAFR-0320A 266 320

GE1004DS-BAPR-255 4 195 255 8.1 12 11.7 55 5 20 26 37 29 B 46 8 36 2.3812 335 590 0.1

GE1004DS-BAPR-0385A 325 385

GE1004DS-BAPR-455 395 455

GE1010AS-BAPR-255 10 192 255 8.1 14 13.7 55 8 20 28 40 32 B 47 8 36 2.3812 220 350 0.1

GE1010AS-BAPR-0455A 392 455

GE1202DS-AAPR-300 12 2 247 300 10.6 12 11.7 50 3 20 25 35 27 A 44 8 33 1.5875 245 410 0.1

GE1202DS-AAPR-0455A 402 455

GE122FDS-AAPR-300 2.5 245 300 10.3 12 11.7 50 5 20 26 34 26 A 45 8 34 2 295 510 0.1

GE122FDS-AAPR-0400A 345 400

GE1204DS-AALR-405 4 345 405 10.1 12 11.7 55 5 20 30 41 31 A 54 10 41 2.3812 360 675 0.1

GE1204DS-AALR-0605A 545 605

GE1205DS-BALR-305 5 245 305 9.5 12 11.7 55 5 20 30 44 34 B 50 10 40 3.175 595 980 0.1

GE1205DS-BALR-0455A 395 455

GE1210AS-BALR-455 10 395 455 9.5 12 11.7 55 5 20 30 49 37 B 54 12 41 3.175 385 590 0.2

GE1210AS-BALR-0605A 545 605

GE1220AS-BALR-405 20 345 405 9.5 12 11.7 55 5 20 32 68 56 B 56 12 43 3.175 385 590 0.25

GE1220AS-BALR-0605A 545 605

GE1502DS-BAPR-0600A 15 2 542 600 13.6 15 14.5 55 3 20 30 37 27 B 54 10 41 1.5875 270 550 0.2

GE1504DS-BALR-600 4 540 600 13.1 15 14.5 55 5 25 32 41 31 B 56 10 43 2.3812 410 855 0.2

GE1504DS-BALR-1100A 1040 1100

GE1505DS-BALR-600 5 540 600 12.5 15 14.5 55 5 25 34 44 34 B 58 10 45 3.175 690 1250 0.2

GE1505DS-BALR-1100A 1040 1100

GE1510AS-BALR-600 10 540 600 12.5 15 14.5 55 5 25 34 52 40 B 58 12 45 3.175 440 790 0.2

GE1510AS-BALR-0900A 840 900

GE1510AS-BALR-1100 1040 1100

GE1510AS-BALR-1300 1240 1300 0.3

GE1515AS-BALR-600 15 540 600 12.5 15 14.5 55 5 25 34 54 42 B 58 12 45 3.175 440 790 0.2

GE1515AS-BALR-0900A 840 900

GE1515AS-BALR-1100 1040 1100

GE1515AS-BALR-1300 1240 1300 0.3

GE1520AS-BALR-600 20 540 600 12.5 15 14.5 55 5 25 34 62 50 B 58 12 45 3.175 440 790 0.2

GE1520AS-BALR-0900A 840 900

GE1520AS-BALR-1100 1040 1100

GE1520AS-BALR-1300 1240 1300 0.3

返回搜轴承首页

Model number	outside	lead	Screw Shaft								Nut Size							Ball	Basic		preload
											outside	overall	body	Flange size
GE series	diameter		Thread	Overall	Root	Shaft end size					diameter	lengthl	length					diameter	load rating		torque
			length	length	diameter						of nut	of nut	of nut	type	outisde	T	P.C.D
	d	L									D	Lt	F		diameter			Db	C	Co	(daN)
			1	t	d1	d2	d3	2	3	4					D1				(daN)	(daN)
GE081FDS-AANR-0215A	8	1.5	167	215	7.1	12	11.7	45	3	20	16	24	19	A	32	5	23	1	85	190	0.05
GE0802DS-AANR-0215A		2			6.6						20	30	25		36		27	1.5875	195	260	0.05
GE0804DS-BAFR-215		4	164	215	6.3	12	11.7	45	6	20	22	30	25	B	38	5	29	2	235	330	0.05
GE0804DS-BAFR-0320A			289	340
GE1002DS-EANR-250	10	2	202	250	8.6	10	9.7	45	3	20		27	22	E	40	5	31	1.5875	225	330	0.05
GE1002DS-EANR-0320A			272	320							23
GE102FDS-AAFR-250		2.5	196	250	8.3	10	9.7	50	4	20	24	35	27	A	43	8	32	2	270	420	0.05
GE102FDS-AAFR-0320A			266	320
GE1004DS-BAPR-255		4	195	255	8.1	12	11.7	55	5	20	26	37	29	B	46	8	36	2.3812	335	590	0.1
GE1004DS-BAPR-0385A			325	385
GE1004DS-BAPR-455			395	455
GE1010AS-BAPR-255		10	192	255	8.1	14	13.7	55	8	20	28	40	32	B	47	8	36	2.3812	220	350	0.1
GE1010AS-BAPR-0455A			392	455
GE1202DS-AAPR-300	12	2	247	300	10.6	12	11.7	50	3	20	25	35	27	A	44	8	33	1.5875	245	410	0.1
GE1202DS-AAPR-0455A			402	455
GE122FDS-AAPR-300		2.5	245	300	10.3	12	11.7	50	5	20	26	34	26	A	45	8	34	2	295	510	0.1
GE122FDS-AAPR-0400A			345	400
GE1204DS-AALR-405		4	345	405	10.1	12	11.7	55	5	20	30	41	31	A	54	10	41	2.3812	360	675	0.1
GE1204DS-AALR-0605A			545	605
GE1205DS-BALR-305		5	245	305	9.5	12	11.7	55	5	20	30	44	34	B	50	10	40	3.175	595	980	0.1
GE1205DS-BALR-0455A			395	455
GE1210AS-BALR-455		10	395	455	9.5	12	11.7	55	5	20	30	49	37	B	54	12	41	3.175	385	590	0.2
GE1210AS-BALR-0605A			545	605
GE1220AS-BALR-405		20	345	405	9.5	12	11.7	55	5	20	32	68	56	B	56	12	43	3.175	385	590	0.25
GE1220AS-BALR-0605A			545	605
GE1502DS-BAPR-0600A	15	2	542	600	13.6	15	14.5	55	3	20	30	37	27	B	54	10	41	1.5875	270	550	0.2
GE1504DS-BALR-600		4	540	600	13.1	15	14.5	55	5	25	32	41	31	B	56	10	43	2.3812	410	855	0.2
GE1504DS-BALR-1100A			1040	1100
GE1505DS-BALR-600		5	540	600	12.5	15	14.5	55	5	25	34	44	34	B	58	10	45	3.175	690	1250	0.2
GE1505DS-BALR-1100A			1040	1100
GE1510AS-BALR-600		10	540	600	12.5	15	14.5	55	5	25	34	52	40	B	58	12	45	3.175	440	790	0.2
GE1510AS-BALR-0900A			840	900
GE1510AS-BALR-1100			1040	1100
GE1510AS-BALR-1300			1240	1300																	0.3
GE1515AS-BALR-600		15	540	600	12.5	15	14.5	55	5	25	34	54	42	B	58	12	45	3.175	440	790	0.2
GE1515AS-BALR-0900A			840	900
GE1515AS-BALR-1100			1040	1100
GE1515AS-BALR-1300			1240	1300																	0.3
GE1520AS-BALR-600		20	540	600	12.5	15	14.5	55	5	25	34	62	50	B	58	12	45	3.175	440	790	0.2
GE1520AS-BALR-0900A			840	900
GE1520AS-BALR-1100			1040	1100
GE1520AS-BALR-1300			1240	1300																	0.3
