RGH45CA滑块|HIWIN滑块轴承、RGH45HA滑块|HIWIN滑块轴承、RGH55CA滑块|HIWIN滑块轴承、RGH55HA滑块|HIWIN滑块轴承

发布时间：2026-08-13

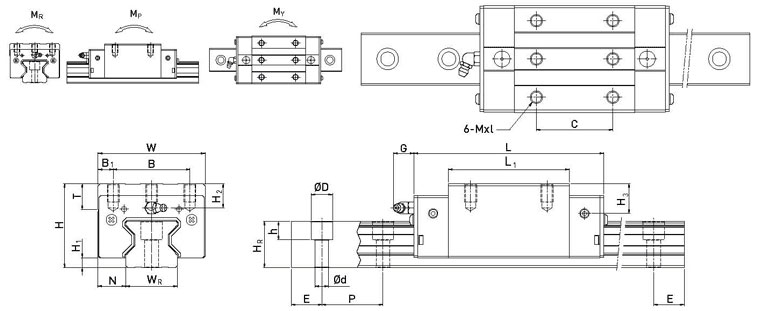

型号
组件尺寸
(mm)
滑块尺寸
(mm)
滑轨尺寸
(mm)
H
H1
N
W
B
B1
C
L1
L
G
M×l
T
H2
H3
WR
HR
D
h
d
P
E
RGH 25CA
40
5.5
12.5
48
35
6.5
35
64.5
97.9
12
M6×8
9.5
10.2
10
23
23.6
11
9
7
30
20
RGH 25HA
50
81
114.4
RGH 35CA
55
6.5
18
70
50
10
50
79
124
12
M8×12
12
16
19.6
34
30.2
14
12
9
40
20
RGH 35HA
72
106.5
151.5
RGH 45CA
70
8
20.5
86
60
13
60
106
153.2
12.9
M10×17
16
20
24
45
38
20
17
14
52.5
22.5
RGH 45HA
80
139.8
187
RGH 55CA
80
10
23.5
100
75
12.5
75
125.5
183.7
12.9
M12×18
17.5
22
27.5
53
44
23
20
16
60
30
RGH 55HA
95
173.8
232

型号

滑轨的
固定螺栓尺寸
(mm)

基本动
额定负荷
C(kN)
基本静
额定负荷
C0(kN)
容许静力矩
重量
MR
(kN-m)
MP
(kN-m)
MY
(kN-m))
滑块
(kg)
滑轨
(kg/m)
RGH 25CA
M6×20
27.7
57.1
0.758
0.605
0.605
0.55
3.08
RGH 25HA
33.9
73.4
0.975
0.991
0.991
0.7
RGH 35CA
M8×25
57.9
105.2
2.17
1.44
1.44
1.43
6.06
RGH 35HA
73.1
142
2.93
2.6
2.6
1.86
RGH 45CA
M12×35
92.6
178.8
4.52
3.05
3.05
2.97
9.97
RGH 45HA
116
230.9
6.33
5.47
5.47
3.97
RGH 55CA
M14×45
130.5
252
8.01
5.4
5.4
4.62
13.98
RGH 55HA
167.8
348
11.15
10.25
10.25
6.4
