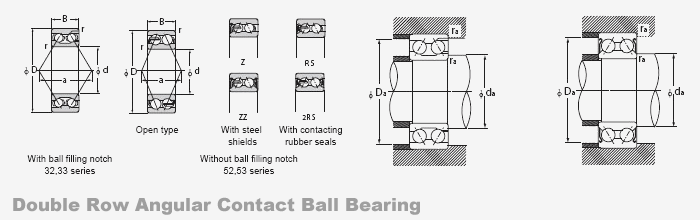

双列角接触球轴承

发布时间：2025-05-05

Boundary Dimensions
(mm)		 Basic Load Rating
( kN )		 Limiting Speed
(rpm)		 Bearing
Designation		 Distance
of working
points
(mm)		 Shoulder
Dimensions1)
(mm)		 Mass
(kg)
Open type Sealed type Grease Oil
d D B r
(min.)		 Cr Cor Cr Cor Open
Z,ZZ		 RS,2RS Open
Z		 open
type 		With
steel
shields 		With
contacting
rubber seals 		(Open)
a		 da
(min.)		 da
(max)		 Da
(max)		 ra
(max)		 Approx
10 30 14.3 0.6 7.35 5.35 - - 15000 - 20000 3200 - - 19.5 14.5 - 25.5 0.6 0.052
12 32 15.9 0.6 9.70 7.15 - - 14000 - 18000 3201 - - 21.7 16.5 - 27.5 0.6 0.063
15 35 15.9 0.6 9.70 7.45 - - 12000 - 16000 3202 - - 23.6 19.5 - 30.5 0.6 0.072
42 19 1 15.2 11.9 - - 10000 - 14000 3302 - - 27.6 20.5 - 36.5 1 0.132
17 40 17.5 0.6 13.8 10.8 - - 11000 - 14000 3203 - - 26.6 21.5 - 35.5 0.6 0.100
40 17.5 0.6 13.2 8.15 12.7 8.35 11000 11000 14000 5203 5203ZZ 5203-2RS 20.0 21.5 23.5 35.5 0.6 0.091
47 22.2 1 21.7 17.1 - - 9400 - 13000 3303 - - 31.0 22.5 - 41.5 1 0.192
20 47 20.6 1 17.2 15.0 - - 9000 - 12000 3204 - - 31.5 25.5 - 41.5 1 0.170
47 20.6 1 19.7 12.6 16.0 10.8 8800 8800 12000 5204 5204ZZ 5204-2RS 23.5 25.5 26.6 41.5 1 0.120
52 22.2 1.1 20.8 18.4 - - 8200 - 11000 3304 - - 33.8 27 - 45 1 0.230
52 22.2 1.1 24.7 15.0 19.8 12.8 8300 8300 11000 5304 5304ZZ 5304-2RS 25.9 27 28.3 45 1 0.230
25 52 20.6 1 18.9 18.2 - - 7800 - 10000 3205 - - 34.4 30.5 - 46.5 1 0.190
52 20.6 1 21.4 14.8 18.9 13.8 7700 7700 10000 5205 5205ZZ 5205-2RS 26.1 30.5 32.3 46.5 1 0.190
62 25.4 1.1 28.9 26.5 - - 6800 - 9100 3305 - - 40.5 32 - 55 1 0.369
62 25.4 1.1 32.7 20.8 27.5 18.5 6900 6900 9200 5305 5305ZZ 5305-2RS 31.1 32 33.4 55 1 0.340
30 62 23.8 1 27.3 27.0 - - 6500 - 8700 3206 - - 40.7 35.5 - 56.5 1 0.320
62 23.8 1 29.7 21.3 25.4 18.3 6400 6400 8600 5206 5206ZZ 5206-2RS 30.8 35.5 38.6 56.5 1 0.290
72 30.2 1.1 38.1 36.1 - - 5800 - 7800 3306 - - 47.2 37 - 65 1 0.585
72 30.2 1.1 41.0 28.5 34.3 25.2 5800 5800 7700 5206 5306ZZ 5306-2RS 36.2 37 41.3 65 1 0.510
35 72 27 1.1 36.8 37.5 - - 5600 - 7500 3207 - - 46.9 42 - 65 1 0.480
72 27 1.1 39.2 29.0 31.7 24.6 5500 5500 7300 5207 5207ZZ 5207-2RS 36.1 42 43.9 65 1 0.430
80 34.9 1.5 48.6 46.8 - - 5200 - 7000 3307 - - 53.4 43.5 - 71.5 1.5 0.816
80 34.9 1.5 51.2 36.2 46.1 32.8 5100 5100 6800 5307 5307ZZ 5307-2RS 41.0 43.5 45.5 71.5 1.5 0.790
40 80 30.2 1.1 42.0 43.9 - - 5000 - 6700 3208 - - 52.6 47 - 73 1 0.650
80 30.2 1.1 44.4 33.6 36.5 29.1 5000 5000 6700 5208 5208ZZ 5208-2RS 39.2 47 49.5 73 1 0.570
90 36.5 1.5 54.1 53.8 - - 4600 - 6100 3308 - - 58.9 48.5 - 81.5 1.5 1.07
90 36.5 1.5 62.7 45.4 51.4 37.8 4600 4600 6100 5308 5308ZZ 5308-2RS 44.9 48.5 52.1 81.5 1.5 1.05
45 85 30.2 1.1 45.4 51.4 - - 4600 - 6100 3209 - - 56.3 52 - 78 1 0.710
85 30.2 1.1 49.9 38.4 41.7 33.9 4600 4600 6100 5209 5209ZZ 5209-2RS 42.2 52 55.3 78 1 0.620
100 39.7 1.5 66.1 67.3 - - 4100 - 5500 3309 - - 62.6 53.5 - 91.5 1.5 1.42
100 39.7 1.5 75.1 55.7 68.9 51.4 4100 4100 5500 5309 5309ZZ 5309-2RS 51.0 53.5 58.2 91.5 1.5 1.42
50 90 30.2 1.1 45.1 52.1 - - 4300 - 5700 3210 - - 58.8 57 - 83 1 0.760
90 30.2 1.1 53.3 43.6 44.1 37.9 4300 4300 5600 5210 5210ZZ 5210-2RS 44.5 57 58.9 83 1 0.670
110 44.4 2 86.1 88.6 - - 3800 - 5000 3310 - - 71.7 60 - 100 2 1.95
110 44.4 2 88.5 67.0 81.8 62.2 3600 3600 4800 5310 5310ZZ 5310-2RS 56.6 60 64.4 100 2 1.93
55 100 33.3 1.5 50.9 60.2 - - 3900 - 5100 3211 - - 65.0 63.5 - 91.5 1.5 1.05
100 33.3 1.5 65.9 55.2 52.9 44.7 3800 3800 5100 5211 5211ZZ 5211-2RS 50.2 63.5 66.2 91.5 1.5 0.960
120 49.2 2 101 106 - - 3400 - 4500 3311 - - 79.3 65 - 110 2 2.53
120 49.2 2 110 85.1 95.7 74.3 3300 3300 4500 5311 5311ZZ 5311-2RS 61.6 65 71.8 110 2 2.30
60 110 36.5 1.5 64.0 76.8 - - 3500 - 4700 3212 - - 71.3 68.5 - 101.5 1.5 1.40
110 36.5 1.5 74.4 60.8 62.6 55.9 3500 3500 4700 5212 5212ZZ 5212-2RS 53.8 68.5 74.1 101.5 1.5 1.36
130 54 2.1 125 132 - - 3100 - 4200 3312 - - 87.4 72 - 118 2 3.24
130 54 2.1 126 98.7 110 87.1 3100 3100 4100 5312 5312ZZ 5312-2RS 67.2 72 79.2 118 2 3.16
65 120 38.1 1.5 76.4 97.4 - - 3200 - 4300 3213 - - 76.8 73.5 - 111.5 1.5 1.75
120 38.1 1.5 86.9 75.3 69.2 63.1 3200 3200 4300 5213 5213ZZ 5213-2RS 58.8 73.5 79.0 111.5 1.5 1.66
140 58.7 2.1 142 153 - - 2900 - 3900 3313 - - 92.7 77 - 128 2 4.08
140 58.7 2.1 142 113 142 113 2900 2900 3900 5313 5313ZZ 5313-2RS 70.9 77 85.9 128 2 3.91
70 125 39.7 1.5 77.9 96.4 - - 3100 - 4100 3214 - - 80.7 78.5 - 116.5 1.5 1.92
125 39.7 1.5 94.5 82.6 76.3 70.3 3100 3100 4100 5214 5214ZZ 5214-2RS 61.4 78.5 83.5 116.5 1.5 1.81
150 63.5 2.1 151 160 - - 2700 - 3600 3314 - - 99.7 82 - 138 2 5.04
150 63.5 2.1 160 129 160 129 2700 2700 3600 5314 5314ZZ 5314-2RS 76.0 82 92.9 138 2 1.89
75 130 41.3 1.5 92.4 120 - - 2900 - 3900 3215 - - 84.7 83.5 - 121.5 1.5 2.10
160 68.3 2.1 169 189 - - 2500 - 3300 3315 - - 108.7 87 - 148 2 6.16
160 68.3 2.1 174 147 174 147 2500 2500 3300 5315 5315ZZ 5315-2RS 81.5 87 99.6 148 2 5.97
80 140 44.4 2 97.5 121 - - 2700 - 3600 3216 - - 90.7 90 - 130 2 2.64
170 68.3 2.1 184 213 - - 2400 - 3100 3316 - - 113.1 92 - 158 2 6.93
85 150 49.2 2 114 143 - - 2500 - 3400 3217 - - 98.4 95 - 140 2 3.39
180 73 3 188 219 - - 2200 - 3000 3317 - - 118.8 99 - 166 2.5 8.30
90 160 52.4 2 132 167 - - 2400 - 3100 3218 - - 104.1 100 - 150 2 4.14
190 73 3 205 242 - - 2100 - 2800 3318 - - 125.5 104 - 176 2.5 9.23
95 170 55.6 2.1 152 193 - - 2200 - 3000 3219 - - 110.6 107 - 158 2 5.00
200 77.8 3 218 270 - - 2000 - 2600 3319 - - 132.2 109 - 186 2.5 10.9
100 180 60.3 2.1 172 221 - - 2100 - 2800 3220 - - 116.8 112 - 168 2 6.10
215 82.6 3 249 324 - - 1800 - 2500 3320 - - 140.4 114 - 201 2.5 13.5
105 190 65.1 2.1 182 237 - - 2000 - 2600 3221 - - 124.2 117 - 178 2 7.37
225 87.3 3 265 354 - - 1800 - 2300 3321 - - 148.1 119 - 211 2.5 15.6
110 200 69.8 2.1 201 263 - - 1900 - 2500 3222 - - 131.4 122 - 188 2 8.80
240 92.1 3 281 388 - - 1600 - 2200 3322 - - 156.4 124 - 226 2.5 18.9
