GJZA15滚动花键、GJZA25滚动花键、GJZA32滚动花键、GJZA40滚动花键、GJZA50滚动花键、GJZA60滚动花键、GJZA70滚动花键、GJZA85滚动花键、GJZA100滚动花键、GJZA120滚动花键、GJZA150滚动花键、GJZA15滚珠花键、GJZA25滚珠花键、GJZA32滚珠花键、GJZA40滚珠花键、GJZA50滚珠花键、GJZA60滚珠花键、GJZA70滚珠花键、GJZA85滚珠花键、GJZA100滚珠花键、GJZA120滚珠花键、GJZA150滚珠花键

发布时间：2026-08-12

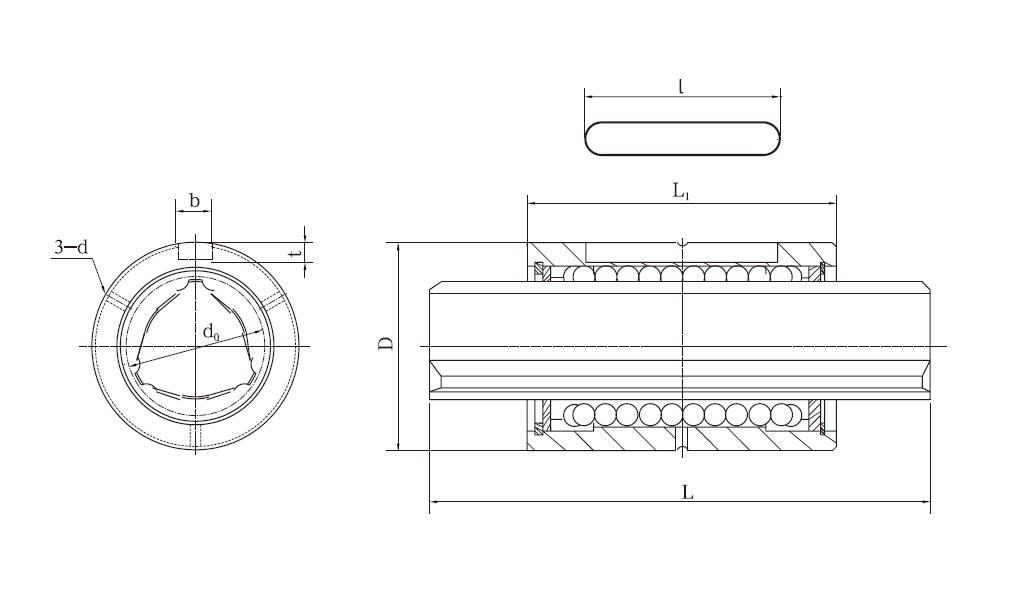

规格型号公称轴径 d0 外径 D 套长度 L1 轴大长度 L 键槽宽度 b 键槽深度 t 键槽长度 l 油孔 d 动扭矩CT Nm 静扭矩C0T Nm 额定动载C (KN) 额定静载C0 (KN)

GJZA15 15 23 50 300 3.5H8 2 20 2 27 45 5.5 13.3

GJZA25 25 38 70 700 5H8 3 36 3 152 225 13 26

GJZA32 32 48 80 1000 8H8 4 40 3 272 388 19.3 36.1

GJZA40 40 60 100 1200 10H8 5 53 4 607 837 34.9 65.5

GJZA50 50 75 112 1400 14H8 5.5 60 4 1130 1473 44.9 82.9

GJZA60 60 90 127 1400 16H8 6 70 4 1631 2262 76.2 131.1

GJZA70 70 100 135 1400 18H8 6 68 4 2617 3597 96.5 156.1

GJZA85 85 120 155 1400 20H8 7 80 5 4139 5635 111.8 179.2

GJZA100 100 140 175 1400 28H8 9 93 5 5684 8640 148.7 221.3

GJZA120 120 160 200 1400 28H8 9 123 6 7374 11640 181.3 295

GJZA150 150 205 250 1400 32H8 10 157 6 12232 19320 279.4 421.5

上一篇：GJZD15滚动花键、GJZD32滚动花键、GJZD40滚动花键、GJZD50滚动花键、GJZD60滚动花键、GJZD15滚珠花键、GJZD32滚珠花键、GJZD40滚珠花键、GJZD50滚珠花键、GJZD60滚珠花键 —— 下一篇：GJH15滚动花键、GJH20滚动花键、GJH25滚动花键、GJH30滚动花键、GJH40滚动花键、GJH50滚动花键、GJH15滚珠花键、GJH20滚珠花键、GJH25滚珠花键、GJH30滚珠花键、GJH40滚珠花键、GJH50滚珠花键

返回搜轴承首页

规格型号	公称轴径 d0	外径 D	套长度 L1	轴大长度 L	键槽宽度 b	键槽深度 t	键槽长度 l	油孔 d	动扭矩CT Nm	静扭矩C0T Nm	额定动载C (KN)	额定静载C0 (KN)
GJZA15	15	23	50	300	3.5H8	2	20	2	27	45	5.5	13.3
GJZA25	25	38	70	700	5H8	3	36	3	152	225	13	26
GJZA32	32	48	80	1000	8H8	4	40	3	272	388	19.3	36.1
GJZA40	40	60	100	1200	10H8	5	53	4	607	837	34.9	65.5
GJZA50	50	75	112	1400	14H8	5.5	60	4	1130	1473	44.9	82.9
GJZA60	60	90	127	1400	16H8	6	70	4	1631	2262	76.2	131.1
GJZA70	70	100	135	1400	18H8	6	68	4	2617	3597	96.5	156.1
GJZA85	85	120	155	1400	20H8	7	80	5	4139	5635	111.8	179.2
GJZA100	100	140	175	1400	28H8	9	93	5	5684	8640	148.7	221.3
GJZA120	120	160	200	1400	28H8	9	123	6	7374	11640	181.3	295
GJZA150	150	205	250	1400	32H8	10	157	6	12232	19320	279.4	421.5
