SPG15SL、SPG20SL、SPG25SL、SPG30SL、SPG35SL直线导轨滑块轴承

发布时间：2026-05-07

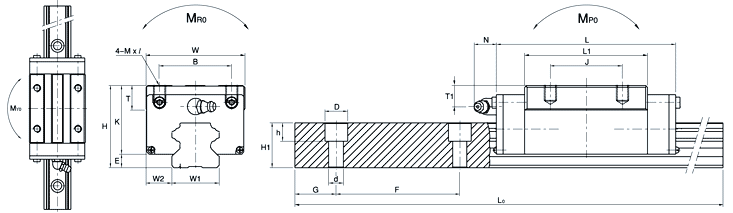

型号
安装尺寸
滑块尺寸
高度
H
E
W2
宽度
W
长度
L
安装孔尺寸
L1
K
T
注油嘴
B×J
M×l
安装孔
T1
N
SPG15SL
28
2.65
9.5
34
58.8
26×26
M4×5
38.8
25.35
8
Ø3.5
8
5
SPG20SL
30
3.5
12
44
77.2
32×36
M5×8
50.8
26.5
8
M6×0.75
7
9.8
SPG20SLL
30
3.5
12
44
93.2
32×50
M5×8
66.8
26.5
8
M6×0.75
7
9.8
SPG25SL
40
5
12.5
48
86.9
35×35
M6×8
59.5
35
12
M6×0.75
10.5
9.8
SPG25SLL
40
5
12.5
48
106.4
35×50
M6×8
79
35
12
M6×0.75
10.5
9.8
SPG30SL
45
6.5
16
60
98
40×40
M8×10
70.4
38.5
12
M6×0.75
11.5
10.7
SPG30SLL
45
6.5
16
60
120.5
40×60
M8×10
92.9
38.5
12
M6×0.75
11.5
10.7
SPG35SL
55
7.5
18
70
109.5
50×50
M8×12
80.4
47.5
15
M6×0.75
16.5
10.7
SPG35SLL
55
7.5
18
70
135
50×72
M8×12
105.9
47.5
15
M6×0.75
16.5
10.7

型号
滑轨尺寸
负载能力
重量
宽度
W1
高度
H
孔间距
F
安装孔尺寸
d×D×h
G
导轨大
长度
LOMAX
动负载
C(N)
静负载
CO(N)
静态扭矩
(kgf·m)
滑块
(kg)
滑轨
(kg/m)
MRO
MPO
MYO
SPG15SL
15
15
60
4.5×7.5×5.3
20
3000
8330
13426
7
5
5
0.2
1.45
SPG20SL
20
17.5
60
6×9.5×8.5
20
4000
14210
25088
22
18
18
0.33
2.20
SPG20SLL
20
17.5
60
6×9.5×8.5
20
4000
16905
36554
29
32
32
0.45
2.20
SPG25SL
23
21.8
60
7×11×9
20
4000
20972
39200
36
32
31
0.56
3.10
SPG25SLL
23
21.8
60
7×11×9
20
4000
24667
48069
44
50
49
0.73
3.10
SPG30SL
28
25
80
9×14×12
20
4000
29204
53802
60
50
49
0.98
4.45
SPG30SLL
28
25
80
9×14×12
20
4000
35300
67904
75
81
80
1.28
4.45
SPG35SL
34
29
80
9×14×12
20
4000
38808
68698
96
75
73
1.63
6.40
SPG35SLL
34
29
80
9×14×12
20
4000
46070
90405
126
133
131
2.12
6.40
